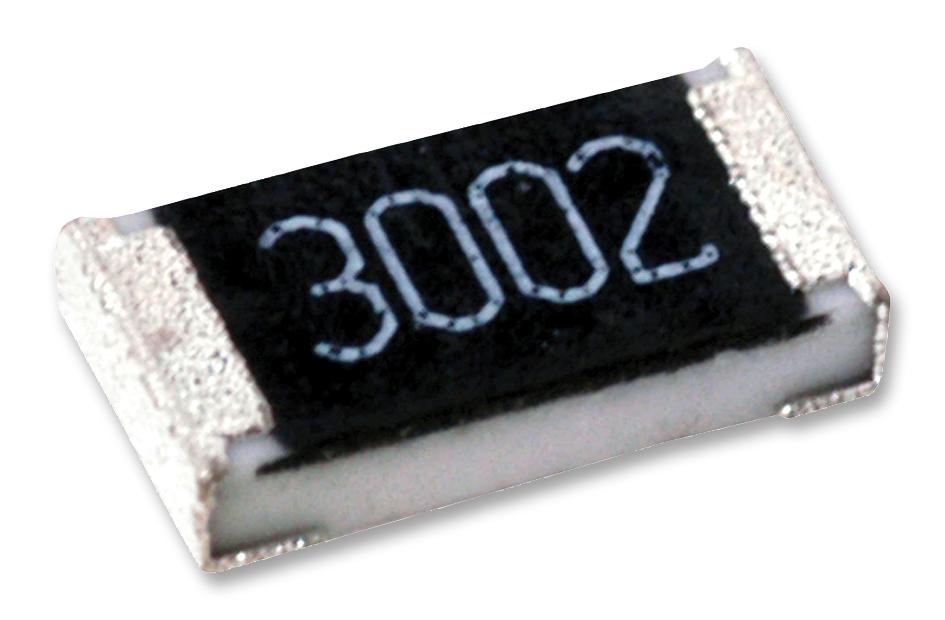

TE CONNECTIVITY TLM2HDR047FTE Current Sense Resistor
The TLM Series is a high-reliability, metal foil SMD resistor designed for current sensing in power electronic systems. Known for its small size to power ratio and low resistance, it ensures high stability with a very low and stable TCR. It features a matte Sn over Ni terminal finish, supporting automatic insertion and a wide resistance range. Suitable for current detection circuits, it offers excellent endurance, thermal stability, and compliance with industry standards, making it ideal for use in power management and electronic systems requiring precise current sensing.
TE CONNECTIVITY TLM2HDR047FTE Current Sense Resistor Specifications:
- Power Rating @ 70°C Range 0.125W to 1W
- Resistance Range: 10mΩ to 100mΩ
- Resistance Tolerance: ±1%, ±2%, ±5%
- Maximum Operating Voltage: v(P*R)
- Overload Voltage: 2.5× v(P*R)
- Operating Temperature: -55°C to +125°C
- Temperature Coefficient of Resistance: ~55°C to +125°C
- Endurance: 1000 hrs at Max. Working Voltage with 1.0%+0.050 Tolerance
- Short Term Overload: 5× rated power for 5 seconds with ±0.05Ω
- Insulation Resistance: 210 GΩ max. overload voltage for 1 min
- Climatic Test: Damp Heat, Dry Heat, Bending, Solderability and Voltage Proof
- Dimensions vary per model, with lengths from 2.0 to 6.3 mm, widths from 0.85 to 3.15 mm, and thickness around 0.40 to 0.58 mm
- Construction includes alumina substrate, barrier layer (Ni), resistor alloy, electrodes (Cu, NiCr), and external Sn over Ni finish.
