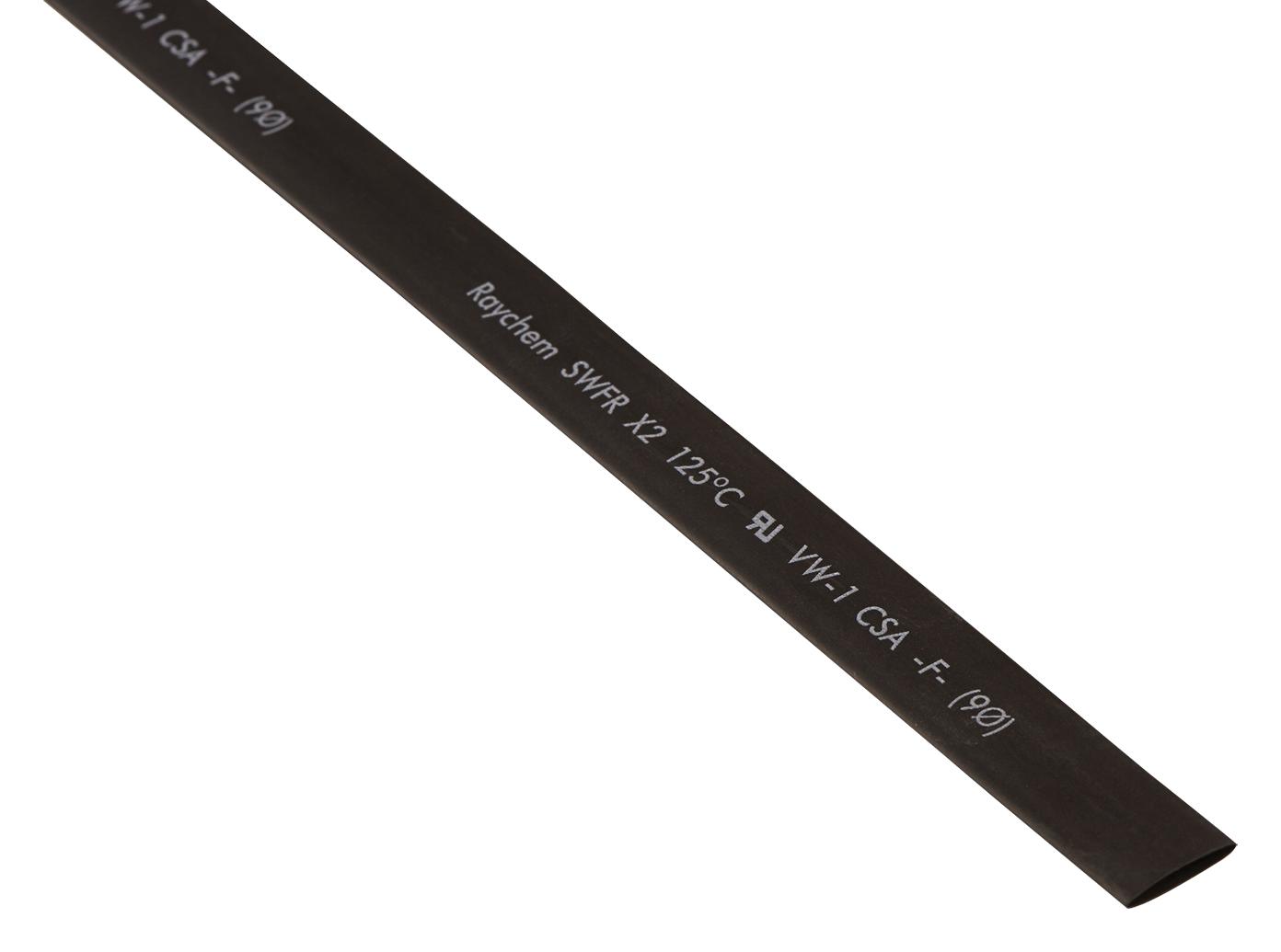

TE CONNECTIVITY X2400SPSM heat-shrinkable tubing
SWFR X2 heat-shrinkable tubing is a highly flame-retardant, halogen-free solution ideal for electrical insulation and wire strain relief in commercial applications. Made from specially formulated, crosslinked polyolefin, it offers excellent flexibility, thermal stability, and resistance to physical abuse. The tubing is UL-recognized and CSA-certified, with a temperature rating from -30°C to 125°C. It simplifies wiring processes through faster, easier application, including molding, dip coating, and tape wrapping, ensuring long-term reliability in electrical and electronic assemblies.
TE CONNECTIVITY X2400SPSM heat-shrinkable tubing Specifications:
- Minimum shrink temperature: 70°C
- Full recovery temperature: 90°C
- Continuous operating temperature: -30°C to 125°C
- Material: Crosslinked polyolefin
- Wall thickness (fully recovered): 0.56 mm (varies by size)
- Inside diameter (nominal): 1.0 mm to 30 mm
- Wall diameter (supplied): 2.0 mm to 30 mm
- Wall thickness (as supplied): 0.25 mm to 0.45 mm
- Color: Black
- UL Recognition: UL 35586, LR31929
- CSA Certification: CSA OFT
- Packaging: On spools
- Applicable standards: VW-1 flame-retardant rating
- Temperature rating: -30°C to 125°C
- Certifications: UL Listed, CSA Certified
Buy the Buy Raychem SWFR X2 Part Number X2400SPSM Online
Order Raychem SWFR X2 heat-shrinkable tubing online for reliable electrical insulation and wire protection in commercial applications. Made from crosslinked polyolefin, this flame-retardant, halogen-free tubing meets UL and CSA standards. Its high thermal stability, flexibility, and physical abuse resistance make it ideal for wiring harnesses, splices, and disconnect terminals. Easy to install through molding, dip coating, or tape wrapping, this tubing provides long-term reliability in demanding environments. Order now for fast delivery and superior electrical safety.
Get Raychem SWFR X2 tubing today—built for flame-retardant insulation and long-lasting electrical protection.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY X2400SPSM?
You can click on the BUY or RFQ button to purchase X2400SPSM from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part X2400SPSM?
You can download the X2400SPSM datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of X2400SPSM?
TE CONNECTIVITY
