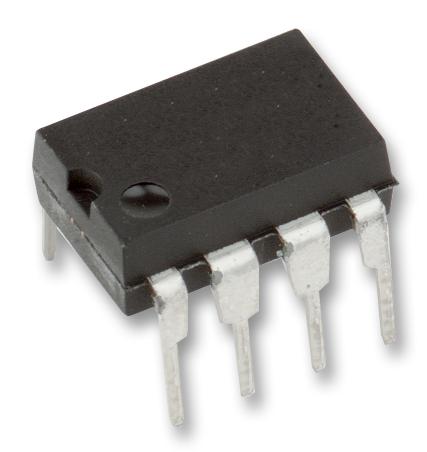

THAT CORPORATION THAT1510P08U Audio Preamp IC
The THAT1510P08-U is a high-performance, low-noise audio preamplifier IC ideal for microphone preamps and bus summing. It offers adjustable gain control over a wide range with a single resistor, providing low input noise of 1 nVWHz at 60dB gain and low distortion. Designed with advanced dielectric isolation and laser-trimmed resistors, it features wide bandwidth up to 7MHz, high slew rate of 19 V/μs, and low supply current of 6 mA. Compatible with industry-standard pinouts, it ensures superior audio quality in professional audio and instrumentation applications.
THAT CORPORATION THAT1510P08U Audio Preamp IC Specifications:
- Supply Voltage: +20V, -20V
- Supply Current: 60-79 mA
- Input Bias Current: 14-48 μA
- Input Offset Voltage: -250 to +250 μV
- Output Offset Voltage: 5-45 mV
- Input Voltage Range: +13V common mode, 130V differential
- Gain Range: 0 to >60 dB adjustable with resistor
- Bandwidth: 7 MHz @ G=100
- High Slew Rate: 19 V/μs
- Low Noise: 1 nVWHz input noise at 60dB gain
- THD+N: 0.001% at <40dB gain, 0.005% at 60dB gain
- Package Types: DIP8, SOIC, WIDE, S14
- Operating Temperature: -40°C to +85°C
- Absolute Max Ratings: +20V supply, -20V supply, 260°C soldering temp
- Input Voltage: Voc + 0.5V, Vee - 0.5V
Buy the Buy THAT Audio Preamp Part Number THAT1510P08-U Online
Discover the high-performance THAT1510P08-U audio preamplifier, offering low noise, wide bandwidth, and adjustable gain for professional microphone and audio applications. Featuring industry-standard pinouts, it’s designed for optimal audio fidelity. Excellent for studio equipment, instrumentation, and sound reinforcement systems, this IC delivers superior audio quality with high slew rate and low distortion. Order online today and experience the reliability and technical excellence of this advanced audio preamp, essential for high-quality sound systems and professional audio engineering projects.
Order your THAT1510P08-U high-performance audio preamplifier today and enhance your microphone and audio system projects with superior clarity and low noise.
Frequently Asked Questions
Where can I buy THAT CORPORATION THAT1510P08U?
You can click on the BUY or RFQ button to purchase THAT1510P08U from an authorized THAT CORPORATION distributor.
How do I troubleshoot issues or seek technical support for part THAT1510P08U?
You can download the THAT1510P08U datasheet or visit the THAT CORPORATION website for support.
Who is the manufacturer of THAT1510P08U?
THAT CORPORATION
