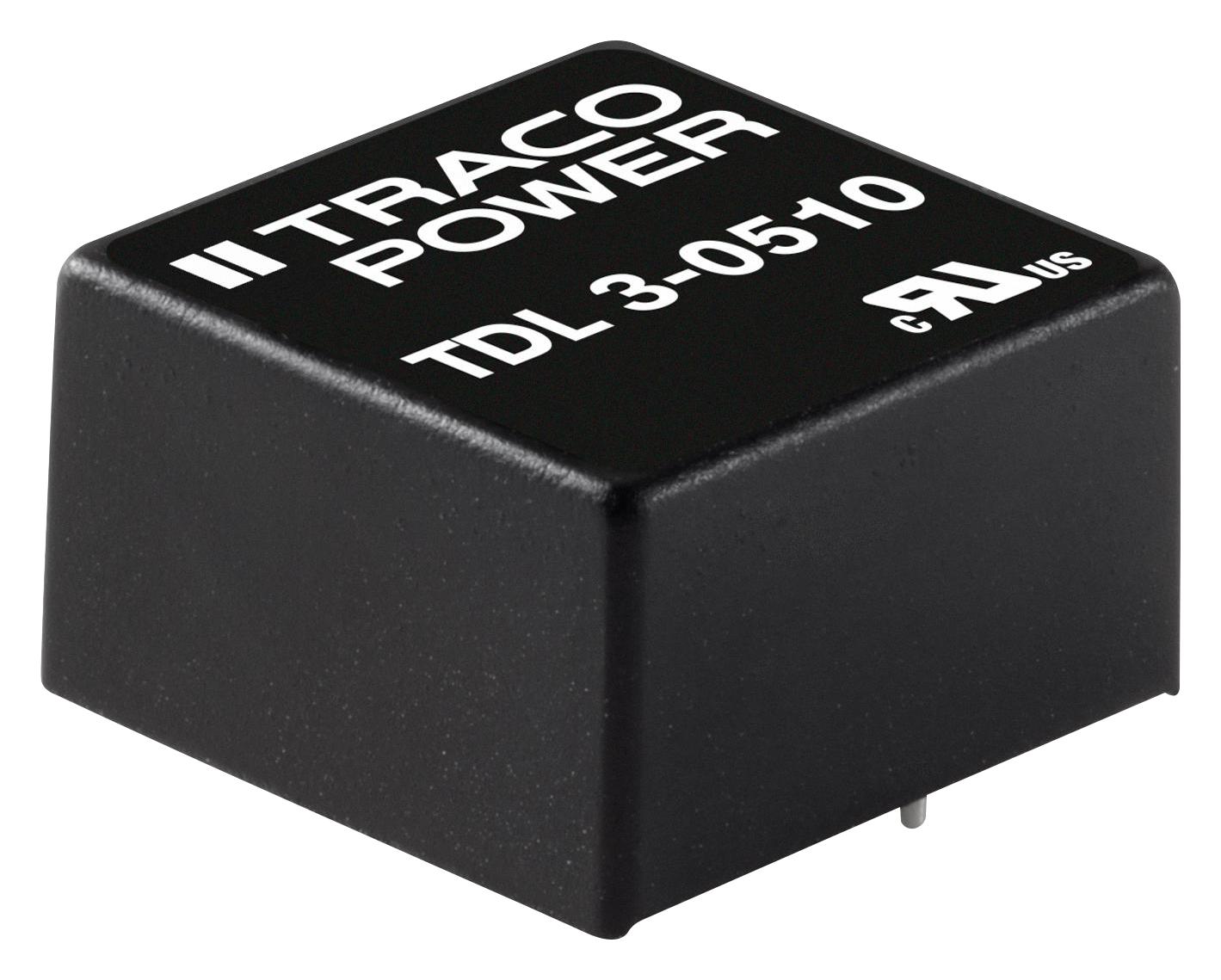

TRACO POWER TDL32422 DC/DC Converter
The TDL 3 series from Tracopower comprises 3W single and dual regulated output DC/DC converters, designed for compact applications. These converters feature a wide input voltage range of 2:1, available in a small DIP package measuring 14mm by 8mm by 14mm. They include continuous, automatic recovery protections for short circuits and overloads, ensuring reliable operation. The models support input voltages of 5V, 12V, 24V, and 48V DC, with output options including 3.3V, 5V, 12V, 15V, and ±5V, ±12V, ±15V. Maximum output currents range up to 600mA depending on the model. The converters achieve efficiencies up to 87%, operate at a switching frequency of at least 100kHz, and provide excellent electrical isolation with 1500VDC withstand voltage, 100pF typical isolation capacitance, and >1Gohm resistance. They maintain low ripple noise at 70mVp-p (within 20MHz bandwidth). These units are certified under UL 60950-1 and IEC/EN 60950-1 safety standards, are operational between -40°C and 70°C, and come with a 3-year warranty.
TRACO POWER TDL32422 DC/DC Converter Specifications:
- Power: 3W
- Input voltage range: 4.5V to 10V, 9V to 18V, 18V to 36V, 24V to 48V (depending on model)
- Output voltage options: 3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V
- Maximum output current: 600mA (depending on model)
- Efficiency: up to 87%
- Switching frequency: ≥100kHz
- Input filter: Internal capacitor
- Isolation voltage: 1500VDC
- Isolation capacitance: 100pF typical
- Isolation resistance: >1Gohm
- Ripple and noise: 70mVp-p (20 MHz bandwidth)
- Operating temperature: -40°C to +70°C
- Short circuit protection: Continuous, automatic recovery
- Over load protection: at 170% of Iout nom., foldback
- Case material: Non-conducting UL 94-V0 rated plastic
- Dimensions: 14mm x 8mm x 14mm
- Weight: approximately 3.99 oz
- Certifications: UL 60950-1, IEC/EN 60950-1
- Environmental: RoHS compliant, Reach compliant
- Soldering temperature: Max 260°C / 10 sec.
Buy the Buy Tracopower TDL 3 Series Part Number TDL32422 Online
Purchase the Tracopower TDL 3 series DC/DC converters online today and enjoy reliable, high-performance power conversion in a compact DIP package. These 3W regulated converters feature a 2:1 input voltage range, offering models with various output voltages up to 15V and currents up to 600mA. With efficiencies reaching 87%, excellent electrical isolation of 1500VDC, low ripple noise, and robust short circuit protection, they are ideal for industrial, automation, and electronics projects. Backed by UL and IEC safety standards and a 3-year warranty, buy now for dependable, space-efficient power solutions.
Get Tracopower TDL32422 today—designed for space-saving, high-efficiency power needs with reliable safety standards and long-lasting performance.
Frequently Asked Questions
Where can I buy TRACO POWER TDL32422?
You can click on the BUY or RFQ button to purchase TDL32422 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TDL32422?
You can download the TDL32422 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TDL32422?
TRACO POWER
