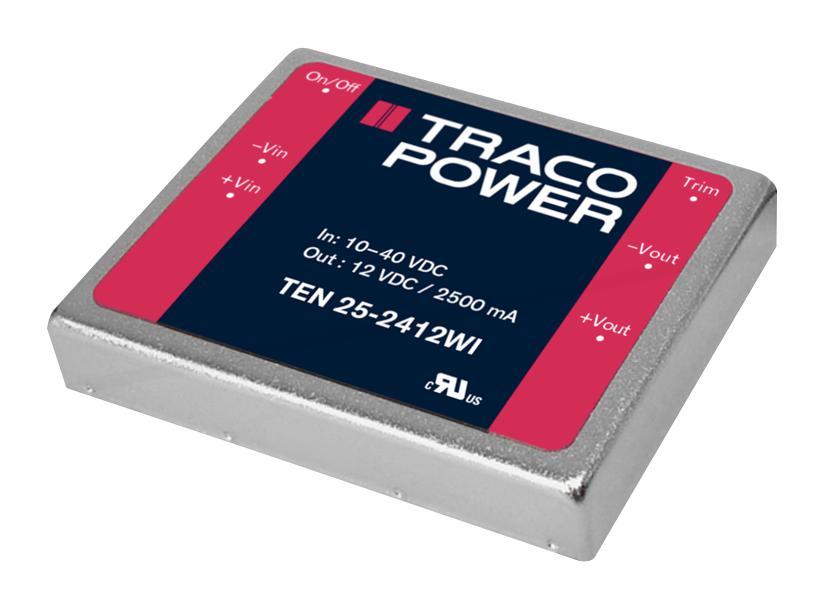

TRACO POWER TEN254811WI DC/DC Converter Module
The TEN 25WI series offers high-performance, compact DC/DC converter modules with up to 30 watt power output. Key features include ultra wide 4:1 input voltage range, adjustable output voltage, remote On/Off, over-voltage, over-temperature, and short circuit protections. Equipped with internal EMI filters conforming to EN 55032, class A, these modules are ideal for industrial electronics, communication systems, battery-operated devices, and distributed power solutions. They support multiple nominal input voltages from 10V to 40V and 48V, with peak efficiencies reaching 89%. Ensuring maximum reliability, they meet safety standards UL60950-1 and RoHS compliance, with a robust design featuring low ripple and noise.
TRACO POWER TEN254811WI DC/DC Converter Module Specifications:
- Input Voltage Range: 10-40 VDC or 48 VDC nominal
- Output Voltage: 3.3 V, 5 V, 12 V, 15 V, +12 V, +15 V options
- Output Current: up to 5A depending on model
- Efficiency: up to 89%
- Isolation Voltage: 1500 VDC
- Temperature Range: -40°C to +105°C (operation with derating)
- Ripple and Noise: 80 mVpk-pk
- Switching Frequency: 330 kHz approx.
- Protection: Over-voltage, over-temperature, short circuit, reverse polarity
- Dimensions: Compact low profile, standard 4-pin or optional remote/trim pins
- Compliance: UL60950-1, RoHS, EN 55032 Class A
Buy the Buy TRACOPOWER DC/DC Converter Part Number TEN254811WI Online
Purchase the TRACOPOWER TEN 25-4811WI online today to benefit from high efficiency, extensive protections, and industry-grade safety standards. This reliable converter module with adjustable output voltage and internal EMI filters is ideal for industrial electronics, communication systems, and battery-powered applications. Featuring a compact design, robust construction, and simplified mounting options including optional heat sinks, it ensures long-term stability and optimal performance. Online buying guarantees quick delivery, technical support, and competitive pricing for professional and hobbyist power projects.
Buy TRACOPOWER TEN 25-4811WI now and experience unmatched reliability and performance in industrial and communication power systems.
Frequently Asked Questions
Where can I buy TRACO POWER TEN254811WI?
You can click on the BUY or RFQ button to purchase TEN254811WI from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TEN254811WI?
You can download the TEN254811WI datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TEN254811WI?
TRACO POWER
