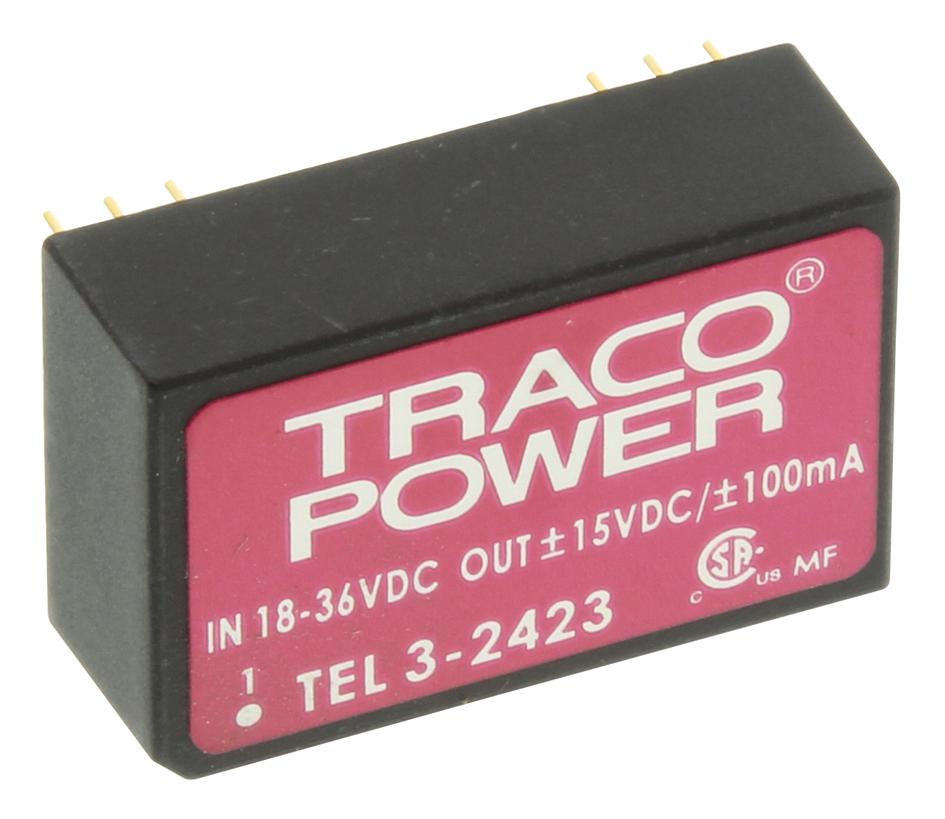

TRACO POWER TEL32423 DC/DC Converter
The TEL 3 series offers reliable, isolated 3 Watt DC/DC converters housed in a DIL-24 package, featuring wide input voltage ranges of 2:1 and 3:1, high efficiency up to 81%, and an operating temperature range from -40°C to +85°C. Suitable for industrial and consumer electronics, these converters provide high reliability with short-circuit protection, excellent regulation, and low output noise. They are ideal for cost-critical applications requiring stable power conversion with minimal electromagnetic interference, meeting safety standards including UL and IEC certifications.
TRACO POWER TEL32423 DC/DC Converter Specifications:
- Input Voltage Range: 4.5-9.0 VDC, 5 VDC, 12 VDC, 15 VDC, 20 VDC, 24 VDC, 36-75 VDC, 48 VDC
- Output Voltage: Different models providing 5 V, 12 V, 15 V, 18 V, 24 V, 36-75 VDC
- Output Current Max.: 600 mA, 250 mA, 200 mA, 125 mA, 100 mA
- Efficiency: Up to 81%
- Operating Temperature: -40°C to +85°C
- Isolation Voltage: 1500 VDC (Input/Output/Case)
- Ripple & Noise: <60 mVpk-pk
- Switching Frequency: 300 kHz typ.
- Short-circuit Protection: Automatic recovery
- Dimensions: 10.2 mm x 30.5 mm x 20 mm, non-conductive epoxy, weight approx. 12 g
- Certifications: UL 60950-1, IEC/EN 60950-1, CSA, RoHS, Reach
Buy the Buy TracoPower TEL 3 Series DC/DC Converter Part Number TEL32423 Online
Order the TracoPower TEL 3 Series TEL32423 today to ensure your devices receive stable, efficient, and safe power conversion. Designed for industrial and consumer electronics, this 3 Watt converter provides wide input voltage compatibility, high efficiency up to 81%, and robust short-circuit protection. Its compact size and compliance with safety standards make it ideal for cost-critical projects. Easily purchase online and enhance your electronic systems with dependable power modules, backed by a 3-year warranty for lasting peace of mind.
Buy TracoPower TEL 3 Series TEL32423 now and experience unmatched reliability, high efficiency, and versatile power solutions for industrial and electronic applications.
Frequently Asked Questions
Where can I buy TRACO POWER TEL32423?
You can click on the BUY or RFQ button to purchase TEL32423 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TEL32423?
You can download the TEL32423 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TEL32423?
TRACO POWER
