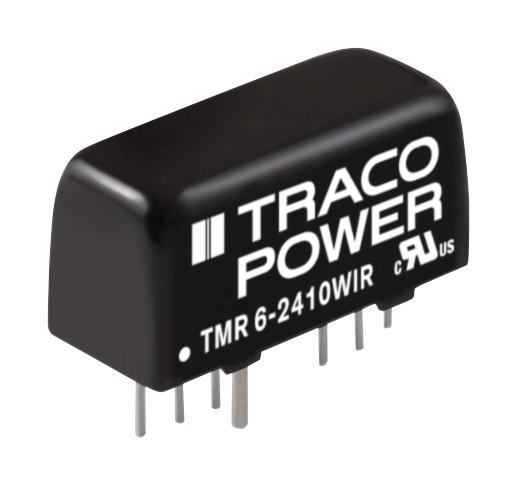

TRACO POWER TMR62422WIR DC/DC Converter
The TMR 6WIR series offers compact 6 Watt DC/DC converters in a durable SIP-8 metal case, suitable for space-constrained applications. These converters operate efficiently over a wide input range of 9-36 VDC, with versions supporting 3.3 V, 5 V, 9 V, 15 V, 24 V, and other outputs. They feature full regulation, overload, and short circuit protection, along with EN 50155 railway approval and UL certification. Operating from -40°C to +80°C, they provide reliable isolation up to 3000 VDC in various industrial, transportation, and automation environments.
TRACO POWER TMR62422WIR DC/DC Converter Specifications:
- Input Voltage Range: 9-36 VDC with 4:1 wide input voltage ratio
- Output Voltages: 3.3 V, 5 V, 9 V, 15 V, 24 V, ±5 V, ±12 V, ±15 V
- Output Currents: 1500 mA to 600 mA depending on model
- Efficiency: Up to 88%
- Isolation Voltage: 3000 VDC input to output, 1500 VDC input/output to case
- Operating Temperature: -40°C to +80°C with derating above 60°C
- Protection: Overload, short circuit, automatic recovery
- Surge Voltage: Max 185 V
- Switching Frequency: About 580 kHz
- Compliance: EN 50155, UL 60950-1
- Physical Dimensions: SIP-8 package, compact design, weight approx. 0.21 kg
Buy the TRACO POWER Series TMR6WIR DC/DC Converter: TMR62422WIR
Purchase the TRACO POWER Series TMR6WIR 62422WIR DC/DC converter online now and benefit from high efficiency, robust protection features, and wide input range. Ideal for industrial, transportation, and automation applications, this compact converter offers up to 88% efficiency, reliable isolation up to 3000 VDC, and a durable SIP-8 case. With EN 50155 railway approval and UL certification, it guarantees performance across a broad temperature range from -40°C to +80°C. Secure your reliable power solution today with quick online ordering and fast delivery.
Order your TRACO POWER Series TMR6WIR 62422WIR today and ensure reliable power supply with efficient, space-saving DC/DC converters for industrial use.
Frequently Asked Questions
Where can I buy TRACO POWER TMR62422WIR?
You can click on the BUY or RFQ button to purchase TMR62422WIR from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TMR62422WIR?
You can download the TMR62422WIR datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TMR62422WIR?
TRACO POWER
