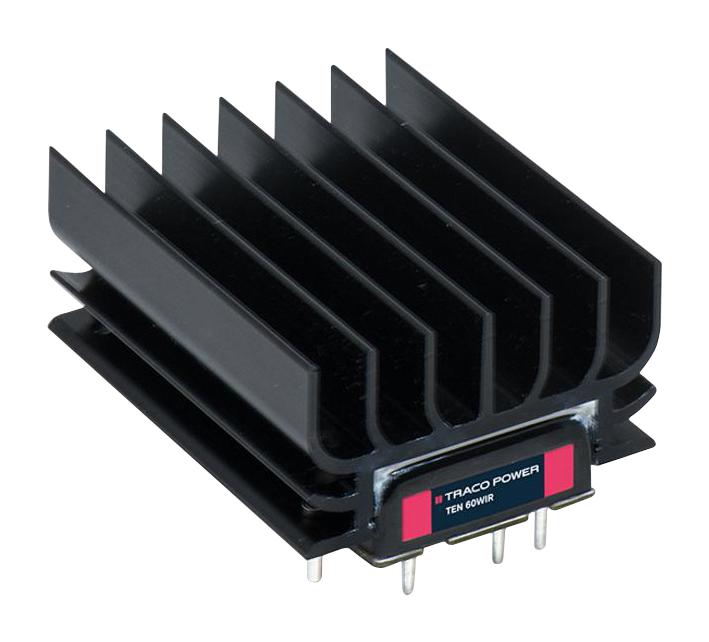

TRACO POWER TEN604823WIR railway DC/DC converter
The TEN 6OWIR series offers ruggedized, 60-watt railway-approved DC/DC converters with a compact 2x1 inch metal package. Featuring a wide 4:1 input voltage range from 9V to 160V, these converters operate efficiently up to 92%, ensuring reliable performance across harsh conditions. Approved for railway applications, they comply with EN 50155 and EN 61373 standards, with additional fire safety certification according to EN 45545-2. The converters include features like adjustable output voltage, remote on/off, 3,000 VDC I/O isolation, and an operating temperature range from -40°C to +70°C, making them suitable for transportation systems and industrial use.
TRACO POWER TEN604823WIR railway DC/DC converter Specifications:
- Input Voltage Range: 9-36 VDC, 18-75 VDC, 36-160 VDC
- Input Surge Voltage: 50 VDC at 24V, 100 VDC at 48V, 200 VDC at 110V
- Output Voltage Adjustment: ±10% to +20% (specific models)
- Output Power: 60 Watts
- Efficiency: Up to 92%
- Isolation Voltage: 3,000 VDC input to output
- Operating Temperature Range: -40°C to +70°C
- Cooling: Natural convection
- Start-up Time: 30 ms typical
- Short Circuit Protection: Continuous, automatic recovery
- Overvoltage Protection: 124-133% of output voltage
- Vibration Resistance: Based on MIL-STD-810F, EN 61373
- Certifications: EN 50155, EN 61373, EN 45545-2 fire safety, IEC/EN 62368-1, UL 62368-1
- Dimensions: 25.4 mm x 50.8 mm x 13 mm (1.00'' x 2.00'' x 0.51'')
- Weight: 66.99 grams
- Housing Material: Copper, Non-conductive FR4 PCB, Silicone potting
Buy the Buy TRACO POWER TEN 6OWIR Part Number TEN604823WIR Online
Purchase the TRACO POWER TEN 6OWIR series online today for a ruggedized 60 watt DC/DC converter designed for railway and industrial applications. Featuring a wide 4:1 input voltage range from 9V to 160V, high efficiency up to 92%, and certified for safety standards including EN 50155, EN 61373, and fire resistance according to EN 45545-2. Compact and reliable, these converters include adjustable output, remote on/off, 3,000 VDC I/O isolation, and can operate from -40°C to +70°C. Perfect for demanding transportation and industrial systems requiring robust power conversion.
Get TRACO POWER TEN 6OWIR today—rugged industrial DC/DC converter with wide input range and railway approval for reliable transportation systems.
