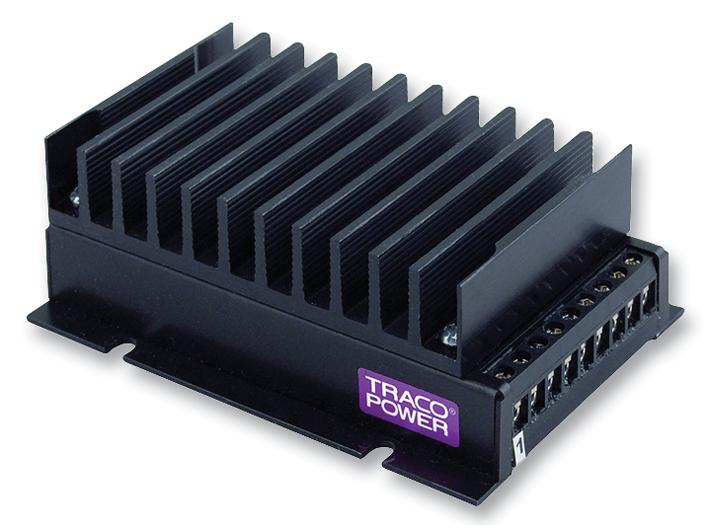

TRACO POWER TEP1502418WI High Power DC/DC Converter
The TEP 150WI Series provides 150 Watt DC/DC converters designed for harsh industrial environments and railway applications. Featuring ultra-wide input voltage ranges of 9-36 VDC, 18-75 VDC, and 43-160 VDC, these modules offer high efficiency up to 89%, overtemperature and reverse input protection, and EN 50155 railway compliance. They operate from -40°C to +75°C, with options for input filters meeting EN55032 class B. Suitable for battery load applications, they include features like constant current mode, inductive load capability, and long operational lifespan rated over 495,000 hours MIBF, ensuring reliable power conversion in demanding conditions.
TRACO POWER TEP1502418WI High Power DC/DC Converter Specifications:
- Input Voltage Range: 9-36 VDC, 18-75 VDC, 43-160 VDC
- Output Power: 150 Watt
- Efficiency: Up to 89%
- Operating Temperature: -40°C to +75°C
- Isolation Voltage: 2250 VDC input to output
- Ripple and Noise: 100-350 mVpk-pk depending on model
- Dimensions: 52.5 mm x 83 mm x Thickness varies; see datasheet
- Weight: Approximately 300 g
- Switching Frequency: 203-330 kHz
- Protection Features: Overtemperature, overvoltage, reverse input, short circuit, overload
- Safety Standards: UL 60950-1, IEC/EN 60950-1, EN 50155
- EMC Immunity: IEC 61000-4 series, EN 55032 class B optional filter
- Mounting: chassis and wall mounting compatible
- Construction: Shielded metal case with screw terminals
- Certifications: UL, EN 50155 railway approval, CB
Buy the Buy Traco Power TEP 150WI Series Part Number TEP1502418WI Online
Secure your high-quality power conversion today by purchasing the Traco Power TEP 150WI Series online. These 150 Watt DC/DC modules are designed for demanding industrial and railway environments, offering ultra-wide input ranges, high efficiency up to 89%, and comprehensive protections including overtemperature, reverse polarity, and short circuit. Easy to install with chassis mounting, they support long operational life rated over 495,000 hours. Ensure your project’s power needs are met with this reliable, certified, and robust energy solution—order now for fast delivery.
Order your Traco Power TEP 150WI Series150 Watt converter today and ensure reliable, high-efficiency power supply for industrial and railway projects.
Frequently Asked Questions
Where can I buy TRACO POWER TEP1502418WI?
You can click on the BUY or RFQ button to purchase TEP1502418WI from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TEP1502418WI?
You can download the TEP1502418WI datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TEP1502418WI?
TRACO POWER
