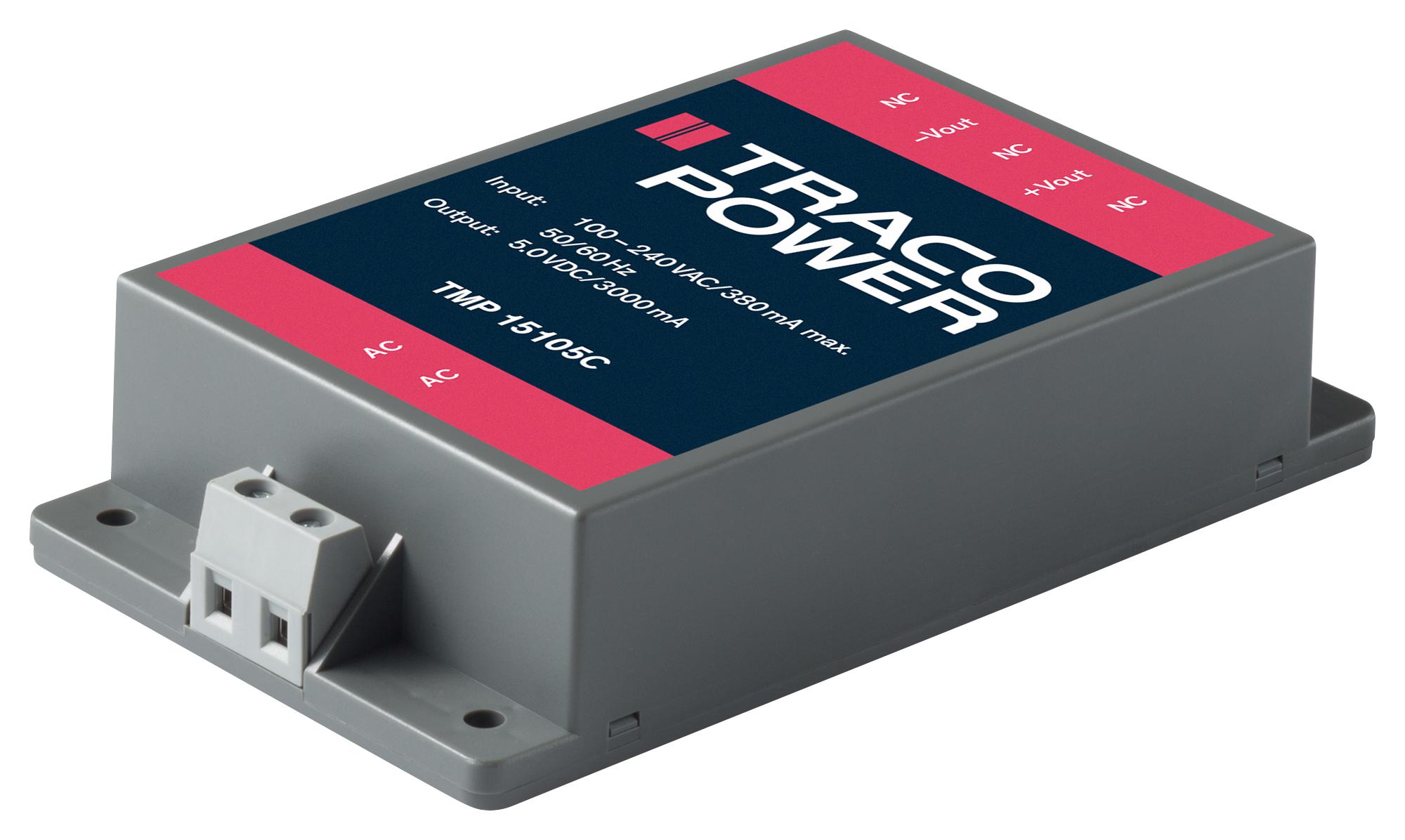

TRACO POWER TMP15105C Power Supply Module
The TMP 15 Series AC/DC switching power supply provides an efficient 15-watt output with multiple voltage options, including 5V, 12V, 15V, 24V, and 48V. Designed for professional indoor systems, it features UL 94V-0 flammability rating and compliance with IEC/EN60950-1 and UL60950-1 standards. It operates within -25°C to +71°C, ensuring reliable performance with proper cooling and wiring. Suitable for regulated power in control panels, automation systems, and industrial equipment, it guarantees safety and durability with UL and cUL recognition, and CE-marking.
TRACO POWER TMP15105C Power Supply Module Specifications:
- Output Power: 15 Watts
- Voltage Options: 5Vdc/1500mA, 12Vdc/1250mA, 15Vdc/1000mA, 24Vdc/625mA, 48Vdc/310mA, ±12Vdc/±625mA, ±15Vdc/±500mA, ±5Vdc/2000mA
- Input Voltage Range: 85-264Vac / 47-440Hz
- Input Current: 0.52A typical at 115VAC, 0.16A at 230VAC
- Operation Temperature Range: -25°C to +71°C max
- Wiring: PCB mounting with solder pins or screw terminal, wires up to 1.5mm²
- Case Material: Plastic resin + Fiberglass, UL 94V-0 rated
- Safety Standards: IEC/EN60950-1, UL60950-1, UL508, CSA C22.2 No 107.1-01
- Mounting: PCB, chassis, DIN-rail
- Power Derating: Above +50°C, reduces 3.75%/°C
- Certification: UL, cUL, CE-marked
Buy the Traco Power Series TMP 15V Power Supply: TMP 15105C
Order the Traco Power TMP 15105C online today to ensure reliable, regulated power for your industrial control systems, automation, or professional electronics. This 15-watt power supply complies with safety standards, featuring multiple output voltages, UL and CE certifications, and a sturdy plastic and fiberglass case for durability. Its versatile mounting options include PCB, chassis, and DIN-rail, making installation straightforward in various environments. Benefit from excellent efficiency, safety, and long-term performance by purchasing this high-quality power supply online now.
Buy Traco Power TMP 15105C now and experience unmatched reliability and high efficiency for industrial control and automation applications.
Frequently Asked Questions
Where can I buy TRACO POWER TMP15105C?
You can click on the BUY or RFQ button to purchase TMP15105C from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TMP15105C?
You can download the TMP15105C datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TMP15105C?
TRACO POWER
