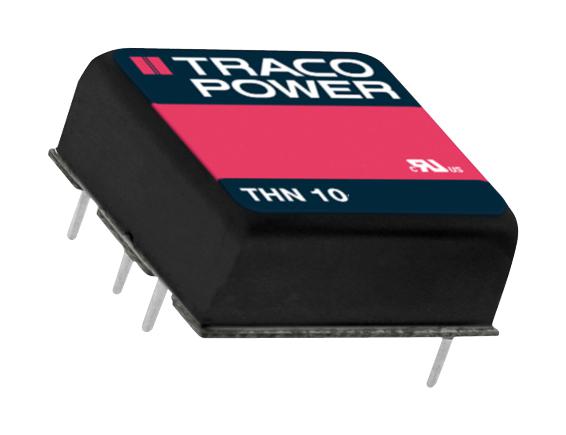

TRACO POWER THN107212WIR DC/DC Converter
The THN 10WIR series consists of rugged 10 Watt DC/DC converters designed for high reliability in harsh environments. With a compact 1" x 1" metal package, these converters feature a wide 4:1 input voltage range from 9-36 VDC, 18-75 VDC, and 36-160 VDC, with efficiencies up to 90%. They offer operation from -40°C to +80°C without derating, thermal shock resistance, EMI filtering, short circuit, overload, overvoltage protections, and remote On/Off with output trim. Approved for railway applications, these versatile units ensure safety and compliance for transportation systems and industrial use.
TRACO POWER THN107212WIR DC/DC Converter Specifications:
- Input Voltage Range: 9-36 VDC, 18-75 VDC, 36-160 VDC
- Output Power: 10 Watts
- Efficiency: Up to 90%
- Operating Temperature: -40°C to +80°C without derating
- Isolation Voltage: 3000 VDC input to output
- Protection: Overload, overvoltage, short circuit
- Remote On/Off, Output Trim Function
- Dimensions: 1" x 1" x 0.43" (25.4 mm x 25.4 mm x 10.9 mm)
- Built-in EMI Filter, compliance with EN 50155, EN 61373, EN 45545-2, IEC/EN 62368-1
- Vibration & Shock Resistance, MIL-STD-810F, EN 61373 compliant
Buy the Traco Power Series THN 10WIR DC/DC Converter: THN107212WIR
Order the Traco Power THN107212WIR today online to benefit from a compact design, high efficiency up to 90%, and proven reliability for railway and industrial environments. Their wide input voltage range from 9 to 160 VDC, combined with comprehensive protections, ensures seamless operation in demanding applications. The medical-grade insulation, EMI filtering, and compliance with industry standards make these converters ideal for transportation systems, industrial automation, and protective control systems. Purchase now for dependable performance with a 3-year warranty and fast delivery.
Buy Traco Power THN107212WIR high-reliability railway-grade DC/DC converter now and ensure stable power delivery in harsh environment applications.
Frequently Asked Questions
Where can I buy TRACO POWER THN107212WIR?
You can click on the BUY or RFQ button to purchase THN107212WIR from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part THN107212WIR?
You can download the THN107212WIR datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of THN107212WIR?
TRACO POWER
