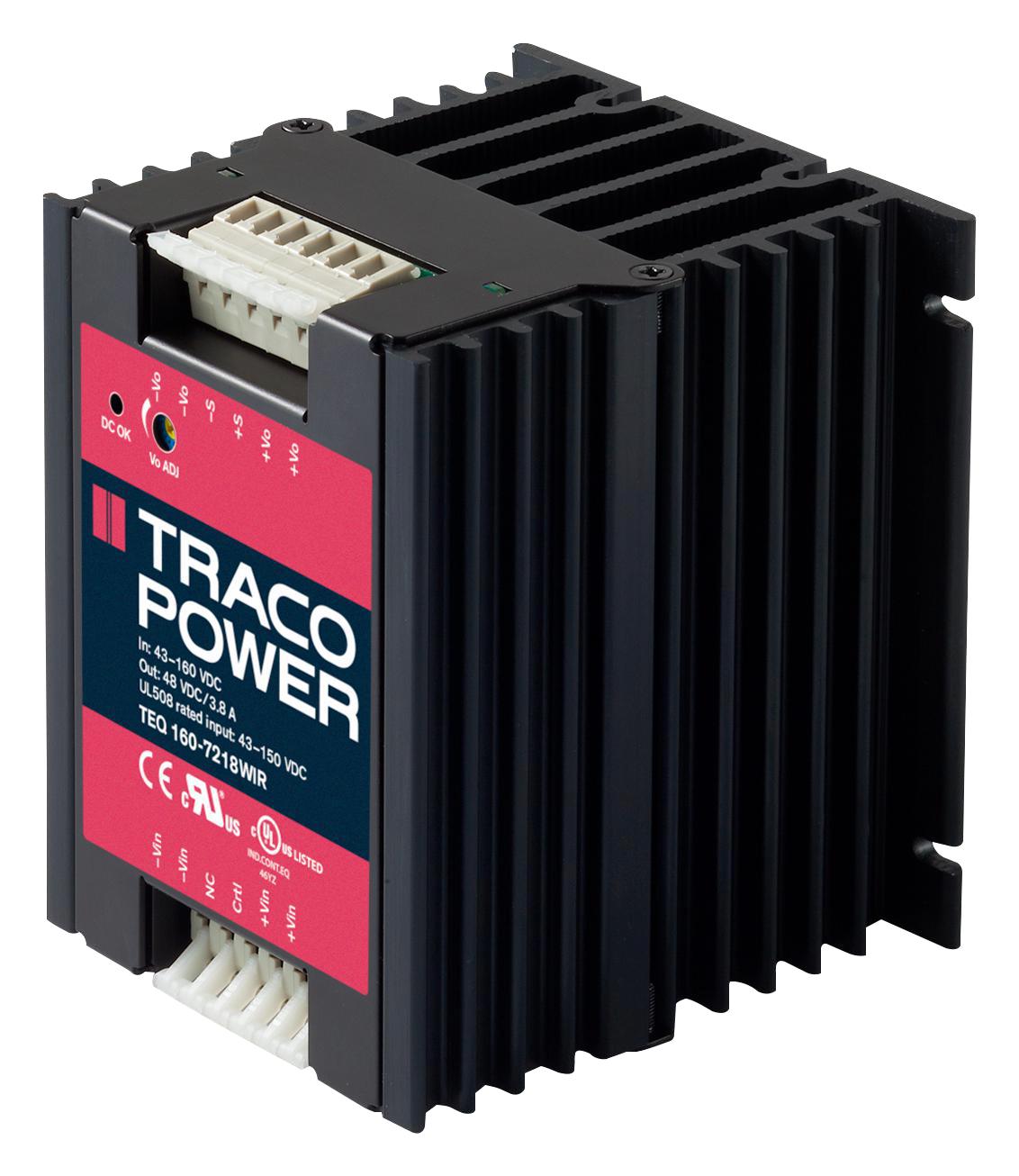

TRACO POWER TEQ1604818WIR DC/DC Converter Module
The TEQ 160WIR series from TracoPower consists of 160W isolated high-performance DC/DC converters housed in rugged, sealed metal cases. Designed for industrial applications, these modules can be mounted on chassis where PCB mounting isn't feasible. They feature an ultra-wide 4:1 input voltage range with reverse input protection, making them suitable for battery-operated systems. The series offers adjustable output voltage, remote on/off control, undervoltage lockout, soft-start, output current limiting, overvoltage protection, and automatic recovery short circuit protection. Certified according to IEC/EN 60950-1, UL 508, CSA C22.2 No. 107.1-01, and UL 60950-1 standards, they are ideal for demanding industrial and railway environments with high efficiency up to 90%, excellent thermal performance, and EN 50155 approval for railways. Input filter complies with EN 55022 Class A, with maximum ripple and noise up to 350mVp-p depending on output voltage, and an isolation voltage of up to 2250VDC for I/O and 1600VDC input-to-case. Operating temperature ranges from -40°C to 105°C, with full performance up to +75°C without derating. Suitable for applications requiring reliable, efficient power conversion in challenging environments.
TRACO POWER TEQ1604818WIR DC/DC Converter Module Specifications:
- Output Power: 160 W
- Input Voltage Range: 9.6-13.2 VDC, 19-75 VDC, 22.4-30.8 VDC, 38.4-52.8 VDC, 43-160 VDC
- Output Voltage: 12 VDC, 24 VDC, 28 VDC, 48 VDC
- Max Output Current: 3.2A to 75A depending on model
- Efficiency: up to 90%
- Operating Temperature: -40°C to +75°C (full load), up to +105°C with derating
- Isolation Voltage: 2250 VDC (input/output), 1600 VDC (input/case)
- Ripple & Noise: up to 350mVp-p depending on model
- Input Protection: Reverse polarity, undervoltage lockout
- Protection: Overvoltage, short circuit (automatic recovery), over temperature
- Certifications: IEC/EN 60950-1, UL 508, CSA C22.2 No. 107.1-01, UL 60950-1, EN 50155
- Mechanical: Rugged sealed aluminium case, weight approx. 800 g
- Compliance: EN 55032 class A EMI filter, MIL-STD-810F shock & vibration, thermal shock resistant
- Switching Frequency: 250 kHz
- Remote On/Off: Yes, positive logic
Buy the TracoPower Series DC/DC Converter: TEQ 160WIR: 160 Watt
Purchase the TracoPower TEQ 160WIR series online today and enjoy high efficiency, rugged construction, and extensive safety certifications. These 160W high-performance isolating DC/DC converters are perfect for industrial, railway, and battery-powered applications. Featuring an ultra-wide 4:1 input voltage range, adjustable outputs, remote on/off control, and overvoltage protection, they ensure stable power delivery in challenging environments. Their compact, sealed aluminium case provides excellent thermal performance and high reliability, with efficiencies reaching up to 90%. Secure your power conversion solution now for consistent, safe, and efficient operation.
Buy TracoPower TEQ 160WIR now and experience unmatched reliability and performance in industrial power conversion.
Frequently Asked Questions
Where can I buy TRACO POWER TEQ1604818WIR?
You can click on the BUY or RFQ button to purchase TEQ1604818WIR from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TEQ1604818WIR?
You can download the TEQ1604818WIR datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TEQ1604818WIR?
TRACO POWER
