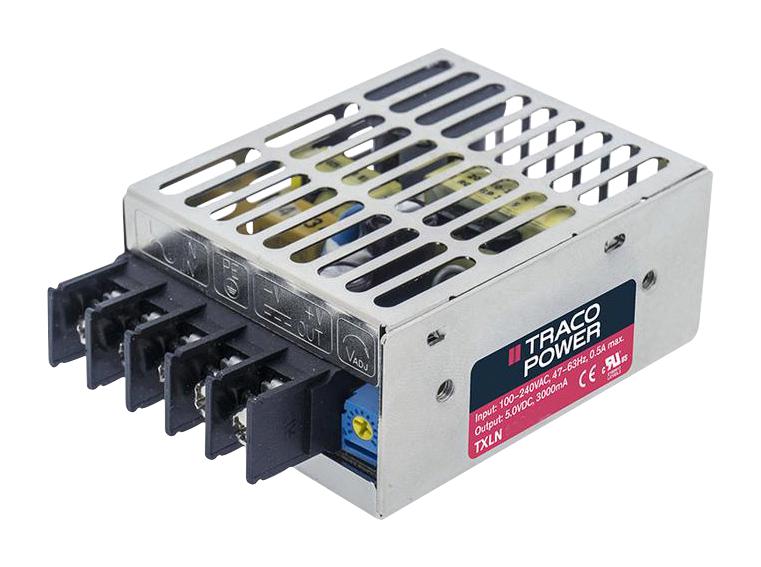

TRACO POWER TXLN018115 Power Supply Module
The TXLN 018 series is a family of compact, cost-effective enclosed power supplies housed in a low-profile metal case. Designed for easy installation, they feature screw terminal connections and are convection-cooled (fanless). These power supplies offer universal input voltage (85-264VAC), high efficiency up to 84%, and comply with European EMC standards and the Low Voltage Directive (LVD). They provide protection against short circuits, overvoltage, and overload, and are certified to IEC/EN/UL 62368-1 safety standards. Suitable for operating temperatures from -20°C to +70°C, they have a switching frequency between 90kHz and 110kHz (PWM), with an aluminium housing and provision for connection to protective earth. These units are pollution degree PD 2, overvoltage category OVC II, and come with a 3-year warranty.
TRACO POWER TXLN018115 Power Supply Module Specifications:
- Input Voltage: 85-264 VAC / 120-375 VDC
- Input Frequency: 50-63 Hz
- Output Power: 18 W
- Output Voltage: 3.3 VDC, 5 VDC, 12 VDC, 15 VDC
- Output Current Max: 3,000 mA (3.3 V), 3,000 mA (5 V), 1,500 mA (12 V), 1,200 mA (15 V)
- Efficiency: Up to 84%
- Protection: Short circuit, overvoltage, overload
- Output Regulation: ±3%
- Ripple & Noise: 80-200 mVp-p depending on model
- Operating Temperature: –20°C to +70°C
- Cooling System: Natural convection (fanless)
- Isolation Test Voltage: 3,000 VAC (input to output)
- Housing Material: Aluminium
- Protection Class: Class I (connection to PE)
- Pollution Degree: PD 2
- Over Voltage Category: OVC II
- EMC Compliance: EN 61000-6-3, EN 61000-6-1, EN 61000-3-2
- Certifications: IEC/EN/UL 62368-1, RoHS, REACH
- Weight: approx. 130 g
- Safety Approvals: IEC/EN/UL 62368-1
Buy the Traco Power TXLN018 – Reliable Power Supply for Industrial Applications
Purchase the Traco Power TXLN018 series 18 Watt power supply online today to upgrade your industrial equipment. With universal input voltage, high efficiency up to 84%, natural convection cooling, and comprehensive safety certifications, this compact module guarantees reliable operation across various environments. Its robust design, protection features, and compliance with international standards make it ideal for cost-sensitive industrial and automation applications. Order now to secure fast delivery and experience dependable, long-lasting power performance for your projects.
Order your Traco Power TXLN018 series 18 Watt power supply today and ensure your industrial projects benefit from dependable, efficient power solutions.
Frequently Asked Questions
Where can I buy TRACO POWER TXLN018115?
You can click on the BUY or RFQ button to purchase TXLN018115 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TXLN018115?
You can download the TXLN018115 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TXLN018115?
TRACO POWER
