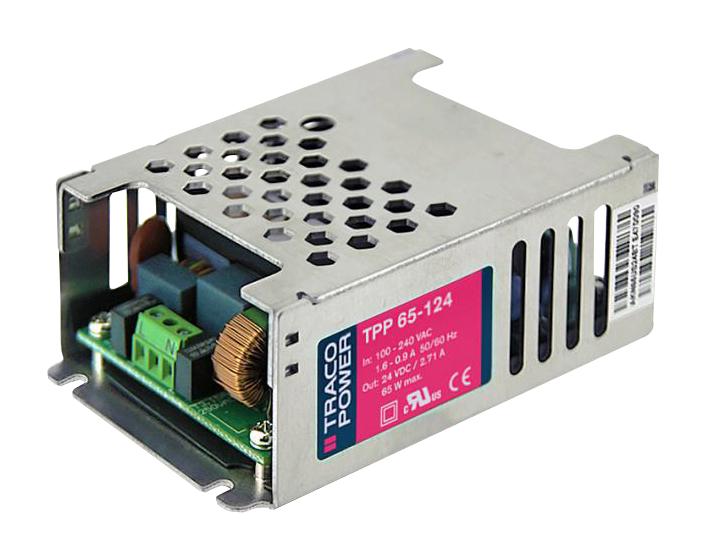

TRACO POWER TPP65251 Medical Power Supply
The TPP 65 Series is a 65-watt medical-grade AC/DC power supply designed for demanding safety-critical applications. It features reinforced isolation according to IEC 60601-1 3rd edition, with 2 x MOPP compliance, making it suitable for BF applications with leakage current below 75 pA. The unit offers high efficiency up to 92%, a compact 2.44" x 3.0" package, and supports full load operation from -40°C to +60°C, with derating up to 85°C at 50% load. It complies with EMC standards and is ideal for medical devices, industrial, and domestic use with a 5-year warranty.
TRACO POWER TPP65251 Medical Power Supply Specifications:
- Output Power: 65 W
- Input Voltage Range: 85 - 264 VAC, 120 - 370 VDC
- Input Frequency: 47 - 63 Hz
- Efficiency: Up to 92%
- Output Voltage Options: 5 V, 12 V, 15 V, 24 V, +12 V/+5 V, +15 V/+5 V, +24 V/+5 V
- Output Current Range: 600 mA to 10,000 mA depending on model
- Operating Temperature: -40°C to +60°C (full load), up to 85°C with derating
- Leakage Current: <75 pA
- Isolation Voltage: 5,657 VDC input to output, 3,535 VDC input to case
- Safety Standards: IEC 60601-1, IEC 60601-1-2, UL, CE
- Protection: Short circuit, overvoltage, and overload protection
- Certification: Medical (IEC 60601-1), EMI compliant (EN 55011, EN 55032), EMC immunity compliant
- Dimensions: 2.44" x 3.0" x 1.12", rugged aluminum housing
- Mounting: Screw terminal connection, reinforced insulation, Class I/II suitable
- Altitude Operation: Up to 5000 m
- Humidity: 95% max. non-condensing
- Certification: IEC/EN/ES 60601-1, ISO 14971 risk management, IPC-A-610 Level 3
- Warranty: 5 years
Buy the Traco Power TPP 65-251 – Reliable Medical Power Supply for Industrial Applications
Purchase the Traco TPP 65-251 power supply online today and enjoy reliable, high-performance power delivery for medical, industrial, or demanding safety-critical applications. With reinforced IEC 60601-1 safety standards, excellent efficiency up to 92%, and a compact design, this 65-watt unit is ideal for space-constrained setups. It supports full load operation from -40°C to +60°C, with derating to 85°C, and offers superior EMI compliance and safety certifications. Secure your project’s power needs now with our trusted online store.
Order your Traco Series TPP 65-251 power supply today and ensure your medical devices benefit from dependable, high-efficiency power performance.
Frequently Asked Questions
Where can I buy TRACO POWER TPP65251?
You can click on the BUY or RFQ button to purchase TPP65251 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TPP65251?
You can download the TPP65251 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TPP65251?
TRACO POWER
