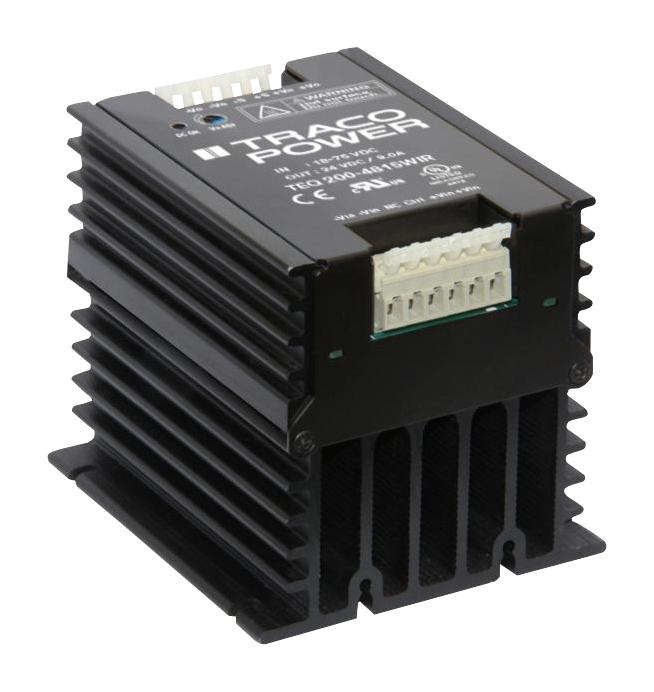

TRACO POWER TEQ2007215WIR High Power Industrial DC/DC Converter
The TEQ 200WIR series from TracoPower is a rugged, high-performance 200W isolated DC/DC converter module designed for industrial and railway applications. Encased in a sealed aluminum case, it features an ultra-wide 4:1 input voltage range, including 48V and 110V nominal inputs, with maximum output currents up to 20A. Key features include high efficiency up to 90%, output voltage trimming, remote on/off, undervoltage lockout, soft-start, and short circuit protection. Certified for IEC/EN 60950-1, UL 508, and railway standards, supporting temperatures from -40°C to +105°C, and providing galvanic isolation up to 2250VDC, these modules are ideal for demanding industrial environments.
TRACO POWER TEQ2007215WIR High Power Industrial DC/DC Converter Specifications:
- Power: 200W
- Input Voltage Range: 9.6-13.2V, 19.2-26.4V, 22.4-30.8V, 38.4-52.8V, 43-160VDC, 110VDC, 48VDC nominal
- Output Voltages: 12V, 24V, 28V, 48VDC
- Max Output Currents: 5A to 90A depending on model
- Efficiency: Up to 90%
- Operating Temperature: -40°C to +70°C without derating, up to +105°C with derating
- Isolation Voltage: 2250VDC (Input/Output), 1600VDC (Input/Case, Output/Case)
- Ripple & Noise: 125-350 mVp-p depending on model
- Switching Frequency: 250 kHz typical
- Protection Features: Overvoltage, short circuit, reverse input voltage, undervoltage lockout
- Standards: IEC/EN 60950-1, UL 508, CSA, EN 50155
- Dimensions: Approx. 103.2mm x 87.6mm x 45mm
- Weight: 800g
- Temperature Range: -40°C to +105°C (derating above +70°C)
Buy the Buy TracoPower TEQ 200WIR Part Number TEQ2007215WIR Online
Purchase the TracoPower TEQ 200WIR series online today and benefit from highly efficient, rugged DC/DC converters with ultra-wide input ranges. Designed for industrial, transportation, and railway applications, these modules offer features like output voltage trimming, remote on/off, and comprehensive protections. With certifications including IEC/EN 60950-1, UL, and EN 50155, they ensure safety, reliability, and high electrical performance. Simplify your system design by ordering this robust, temperature-rated converter with high efficiency and galvanic isolation, suitable for challenging environments and sensitive electronics.
Buy TracoPower TEQ 200WIR now and experience unmatched reliability and performance in demanding industrial and railway environments.
Frequently Asked Questions
Where can I buy TRACO POWER TEQ2007215WIR?
You can click on the BUY or RFQ button to purchase TEQ2007215WIR from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TEQ2007215WIR?
You can download the TEQ2007215WIR datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TEQ2007215WIR?
TRACO POWER
