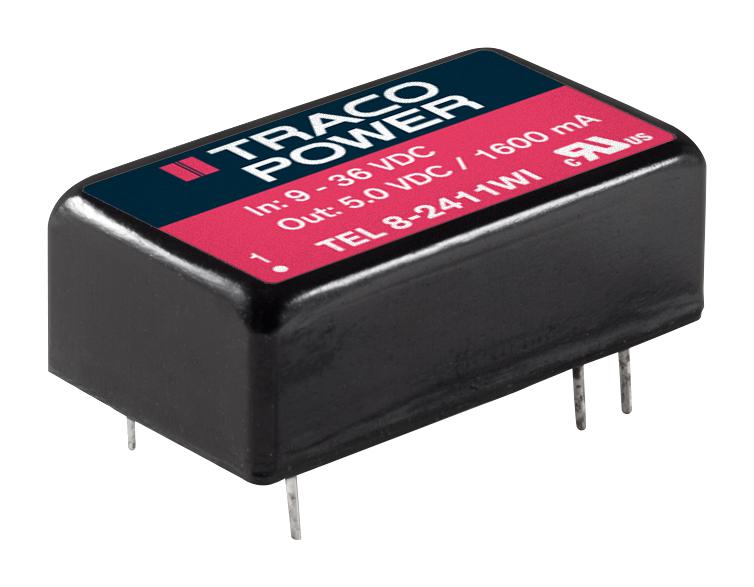

TRACO POWER TEL82411WI DC/DC Converter
The TEL 8WI series by Traco Power offers ultra-compact, 8-watt isolated DC/DC converters in a DIP-16 metal casing, suitable for space-critical applications. These converters feature an ultra-wide 4:1 input voltage range, high efficiency up to 86%, and operate reliably within -40°C to +80°C. They include built-in input filters to meet conducted emission standards, protection against short circuits and overloads, and have a typical power-on startup time of 35 ms. Ideal for instrumentation, industrial electronics, and IT environments, they ensure stable voltage regulation and robust electromagnetic compatibility.
TRACO POWER TEL82411WI DC/DC Converter Specifications:
- Input Voltage Range: 9-36 VDC or 3.3 VDC to 24 VDC variants
- Output Voltage Options: 3.3 V, 5 V, 9 V, 12 V, 15 V, 24 V, and dual outputs
- Maximum Output Current: 2000 mA (for 3.3 V and 5 V), 665 mA (for 12 V and 15 V), 335 mA (for 24 V)
- Efficiency: up to 86%
- Operating Temperature Range: -40°C to +80°C, case temperature up to +105°C
- Isolation Voltage: 1500 VDC, testing for 1 minute
- Ripple and Noise: 55 mVp-p (20 Hz bandwidth)
- Start-up Time: approx. 35 ms
- Protection: Short circuit and overload, automatic hiccup mode
- EMC Compliance: EN 55032 class A internal filter, EN 61000-4 immunity standards
- Physical Dimensions: Aluminum alloy case, package weight 6.1 g, pin pitch 0.25 mm
- Switching Frequency: approx. 370 kHz
- Supported Certifications: IEC/EN 60950-1, UL 60950-1, RoHS, Reach
Buy the Buy Traco Power DC/DC Converter Part Number TEL82411WI Online
Order the Traco Power TEL 8WI series online today to benefit from reliable, compact 8-watt isolated DC/DC converters. Designed with a DIP-16 metal casing, these converters deliver high efficiency up to 86% and feature an ultra-wide input voltage range of 9-36 VDC or 3.3-24 VDC. They are protected against short circuits and overloads, operate efficiently over a temperature range of -40°C to +80°C, and include built-in filters for electromagnetic compatibility. Ideal for instrumentation, industrial electronics, and space-constrained designs, ensuring stable power supply and compliance with international standards.
Get Traco Power TEL 8WI converter today—compact design with high efficiency, suitable for critical industrial applications.
Frequently Asked Questions
Where can I buy TRACO POWER TEL82411WI?
You can click on the BUY or RFQ button to purchase TEL82411WI from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TEL82411WI?
You can download the TEL82411WI datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TEL82411WI?
TRACO POWER
