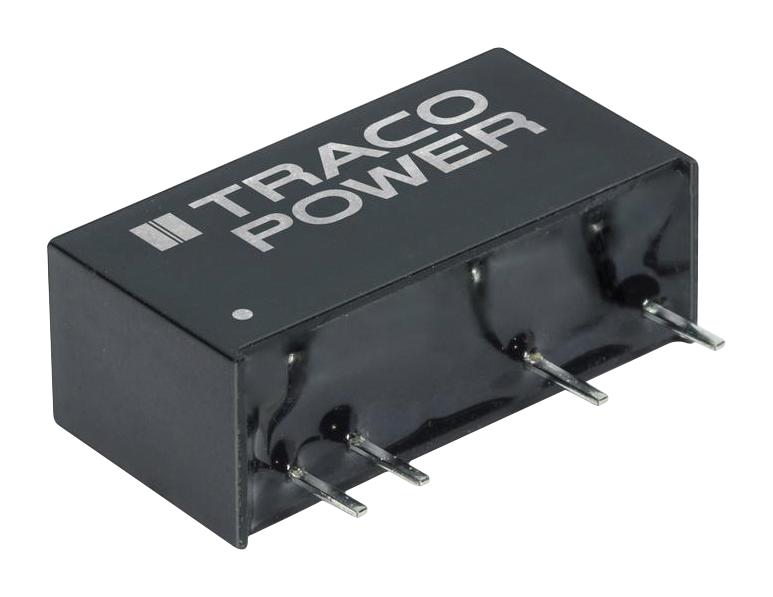

TRACO POWER TRV12410M Medical Power Converter
The TRV 1M is a compact 1 Watt DC/DC converter series designed for medical and industrial applications, offering reinforced isolation of 5000 VAC and seamless operation across -40°C to +85°C without derating. Features include short circuit protection, low leakage current (< 2 pA), and semi-regulated outputs for efficient voltage regulation. Certified according to IEC/EN/ES 60601-1 for 2xMOPP and IEC/EN/UL 62368-1 standards, it ensures safety, reliability, and optimal performance in critical environments. Ideal for medical isolation systems requiring high reliability and low noise, this series supports various input voltages from 5 to 24 VDC, delivering stable outputs.
TRACO POWER TRV12410M Medical Power Converter Specifications:
- Power: 1 Watt
- Input Voltage Range: 5, 12, 15, 24 VDC (±10%)
- Input Current (no load): 5 Vin models 30 mA, 12 V models 30 mA, 15 V models 15 mA, 24 V models 10 mA
- Surge Voltage: 6 VDC (5 V), 25 VDC (12 V & 15 V), 40 VDC (24 V, 1 s max.)
- Operating Temperature Range: -40°C to +85°C without derating
- Isolation Voltage: 5000 VAC reinforced
- Efficiency: Up to 85%
- Leakage Current: < 2 pA
- Certifications: IEC/EN/ES 60601-1 3rd edition, IEC/EN/UL 62368-1
- Mechanical: Compact SIP-9 package, dimensions approximately 22.8 mm x 10.5 mm
- Output Ripple & Noise: 75 mVp-p (0 MHz bandwidth), 100 mVp-p max
- Protection: Continuous short circuit with automatic recovery
- Environmental: Provisions for high altitude operation (up to 5000 m), natural convection cooling
- Safety: Reinforced insulation, creepage and clearance of 8 mm, isolation resistance 70,000 MΩ
Buy the Traco Series TRV DC/DC Converter: TRV12410M
Purchase the Traco Series TRV12410M now to ensure safe, reliable, and efficient power conversion for medical and industrial environments. With reinforced isolation of 5000 VAC, low leakage current, and certified safety standards, this 1 Watt DC/DC converter provides optimal voltage regulation across a wide temperature range. Its compact SIP-9 design allows easy integration into your applications. Enjoy the peace of mind with a 5-year warranty and quick online ordering for high-performance power solutions tailored for safety-critical systems, ensuring longevity and compliance.
Buy Traco Series TRV12410M now and experience unmatched reliability and medical-grade power isolation for your critical applications.
