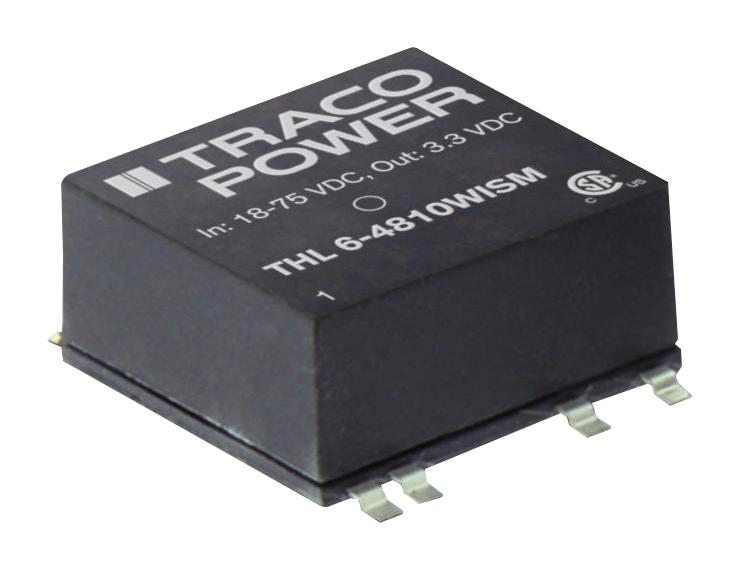

TRACO POWER THL64823WISM DC/DC Converter
The THL 6WISM series from TracoPower comprises compact 6W surface-mount DC/DC converters designed for industrial, data, telecom, and instrumentation applications. These highly efficient devices feature fully regulated outputs, a broad 4:1 input voltage range for 24V and 48V DC sources, and multiple output options such as 3.3V, 5V, 12V, 15V, 24V, and bipolar voltages like ±5V, ±12V, and ±15V. With an ISO 1500VDC, low ripple, EN55022 Class A compliance, remote on/off control, short circuit protection, and operating temperatures from -40°C to +75°C, they deliver reliable, isolated power in a compact form factor ideal for critical electronic systems.
TRACO POWER THL64823WISM DC/DC Converter Specifications:
- Input Voltage Range: 9-36 VDC or 18-75 VDC depending on model
- Output Voltages: 3.3V, 5V, 12V, 15V, 24V, ±5V, ±12V, ±15V
- Maximum Output Current: 600 mA at 5V, 500 mA at 12V/15V, 250 mA at 24V
- Efficiency: Up to 83%
- Switching Frequency: 330 kHz
- Isolation Voltage: 1500 VDC
- Operating Temperature Range: -40°C to +75°C
- Dimensions: 20.3 mm x 10.5 mm x 22 mm
- Pin Material: Phosphor bronze
- Case Material: UL94V-0 rated plastic
- Input Noise Filter: Meets EN55022 Class A
- Ripple and Noise: 100 mVp-p max
- Short Circuit Protection: Yes, automatic recovery
- Humidity: 95% non-condensing
- MTBF: >350,000 hours
- Compliance: IEC 60950-1, UL 60950-1, RoHS, Reach
- Switching Frequency: 330 kHz
Buy the TracoPower Series THL 6WISM DC/DC Converter: THL64823WISM
Experience reliable power conversion with the TracoPower Series THL 6WISM DC/DC converter. Featuring a compact SMD design, wide input voltage range, and regulated outputs, these converters are perfect for industrial, telecom, and instrumentation applications. They offer high efficiency up to 83%, low ripple, and full isolation up to 1500VDC. Easy to design-in thanks to internal filters and compliance with safety and EMC standards, they ensure stable operation from -40°C to +75°C, with a 3-year warranty for peace of mind.
Order your TracoPower Series THL 6WISM THL64823WISM today and give your projects the dependable quality they deserve, with efficient isolated power solutions.
