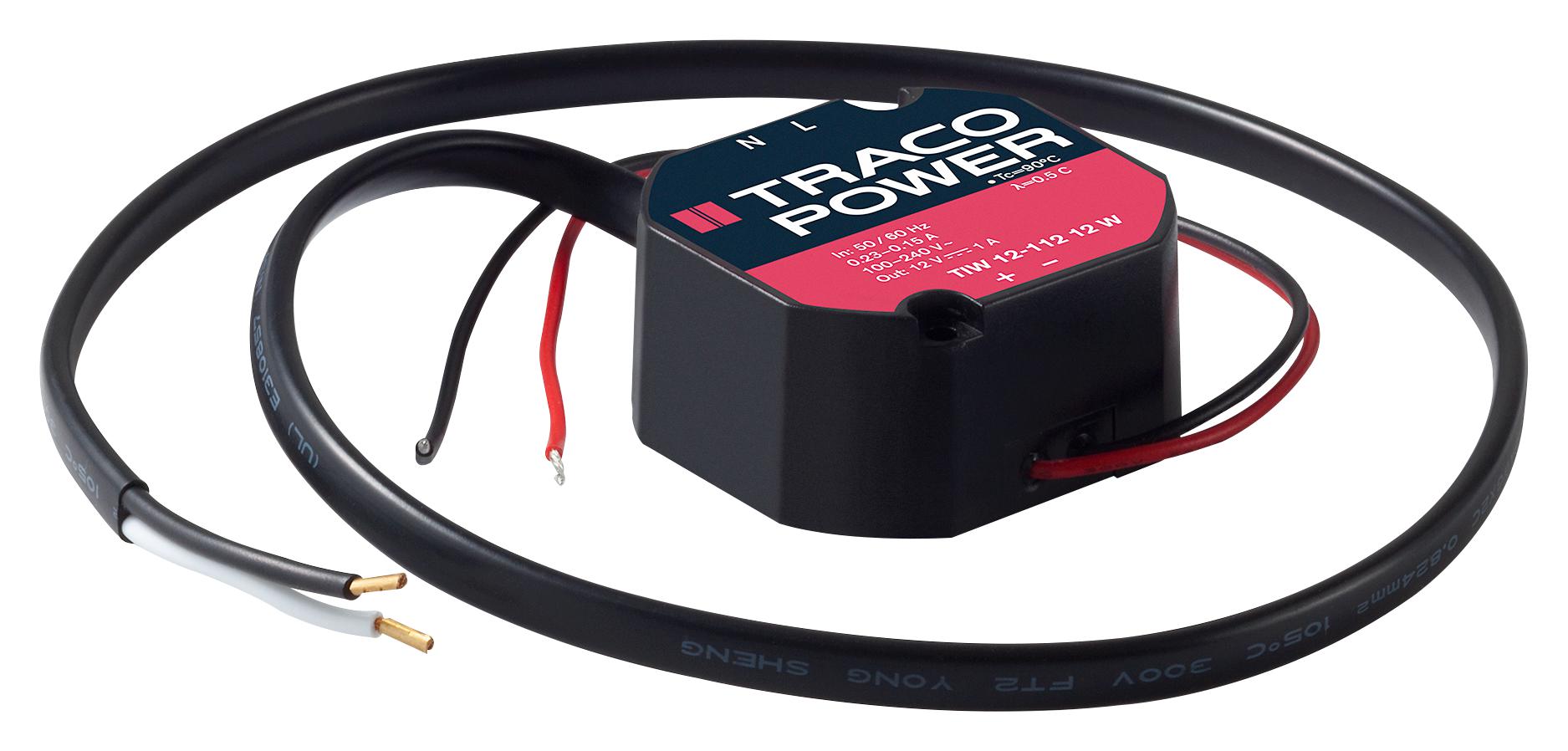

TRACO POWER TIW12112 DC Power Supply
The TIW series offers compact, high-efficiency DC power supplies suitable for home and office automation. Encapsulated in waterproof IP67 housings, they feature universal input voltage, regulated outputs, overload and short-circuit protection, and operate reliably between -25°C to +50°C. Ideal for powering electronic devices like DC motors, controllers, and indicators, their design allows easy installation into standard flush boxes or wall mounting, complying with safety standards including IEC/EN 60950-1 and UL. These supplies ensure safe, efficient, and long-lasting performance in residential and commercial applications.
TRACO POWER TIW12112 DC Power Supply Specifications:
- Input Voltage Range: 93-264 VAC, universal input
- Output Power Max: 12W, 24W
- Output Voltages: 3.3V, 5V, 6V, 12V, 15V, 24V
- Output Current: up to 12A depending on model
- Efficiency: up to 85%
- Operating Temperature: -25°C to +50°C
- Protection: overload, short circuit, over temperature
- Housing: Fully encapsulated, waterproof IP67, plastic casing
- Compliance: UL, IEC/EN 60950-1, EN 60335-1, RoHS
- Connection Wires: Input 570 mm, Output 200 mm AWG 18/20
- Vibration & Shock: IEC 60068-2-6, IEC 60068-2-27
- Certifications: CB, UL, CSA, VDE, EN 61000-6-3/-2 EMC
- MTBF: Calculated per IEC 61709
Buy the TRACOPOWER TIW12112 – Reliable DC Power Supply for Industrial Applications
Order the TRACOPOWER TIW12112 DC power supply now and ensure reliable, safe, and efficient powering of your home automation or industrial control systems. Designed to meet strict safety and EMC standards, it features universal input voltage, high efficiency, and IP67 waterproof housing, making it ideal for installation in various environments. The compact size enables easy mounting into flush boxes or on walls, with robust protection against overload, short circuit, and temperature extremes. Invest in quality power solutions for long-term performance, seamless operation, and peace of mind.
Get TRACOPOWER TIW12112 today—built for precision and long-lasting durability in automation projects.
Frequently Asked Questions
Where can I buy TRACO POWER TIW12112?
You can click on the BUY or RFQ button to purchase TIW12112 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TIW12112?
You can download the TIW12112 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TIW12112?
TRACO POWER
