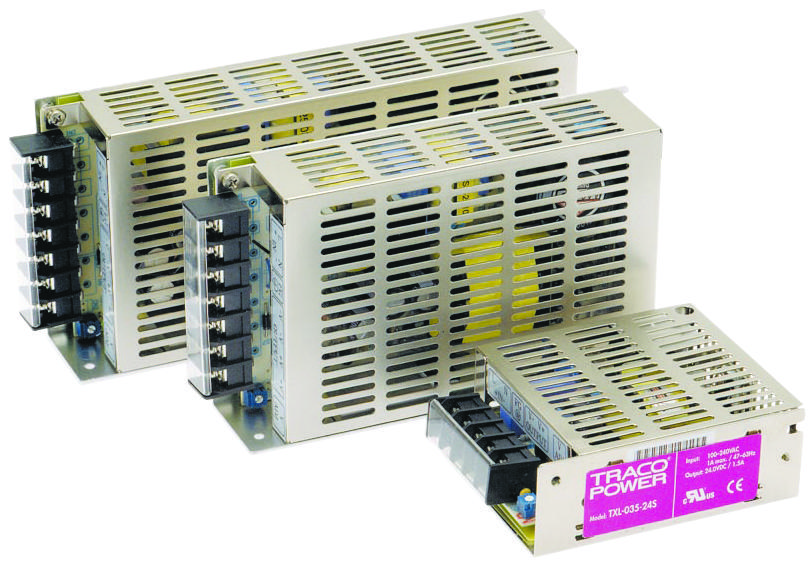

TRACO POWER TXL03524S Enclosed Power Supply
The TXL 035-24S is a 24V, 35W enclosed power supply designed for various critical applications. Its compact metal enclosure features a screw terminal block for easy installation. This power supply offers universal input voltage and complies with European EMC standards and the Low Voltage Directive (LVD). It provides both adjustable and fixed output voltage options, with fold-back, automatic recovery overload protection, and overvoltage protection that can handle 105% to 150% of Vout. Additional features include short-circuit and overvoltage protection, an efficiency of 70-84%, a minimum hold-up time of 20ms, and an operating temperature range from -20°C to 70°C. Suitable for power management applications.
TRACO POWER TXL03524S Enclosed Power Supply Specifications:
- Input Voltage Range: 88-264 VAC, 125-375 VDC
- Output Voltage: 24VDC
- Output Power: 35W
- Maximum Output Current: 1.5A
- Efficiency: 70-84%
- Isolation Voltage: Input/Output 3000 VAC
- Temperature Range: -20°C to +70°C (derating above +50°C)
- Humidity: 20-90% relative, non-condensing
- Cooling: Natural convection (no internal fan)
- Protection: Overload (105-150%), Overvoltage (115-140%), Short Circuit (automatic hiccup mode)
- Dimensions: Approx. 99mm x 55mm x 23.5mm
- Weight: 0.34 kg
- Certification: UL, IEC/EN 60950-1, RoHS compliant
Buy the Buy TRACOPOWER AC/DC Enclosed Power Supply Part Number TXL03524S Online
Get the trusted TRACOPOWER TXL 035-24S compact enclosed power supply online today. Designed for high efficiency and reliable performance, it features universal input, overload and short-circuit protection, and a wide operating temperature range. Perfect for industrial automation, power management, and control systems, this 35W power supply offers stable output voltage, high safety standards, and easy installation with screw terminal connections. Enhance your project’s power reliability—order now and enjoy fast, secure online purchasing!
Order your TRACOPOWER TXL 035-24S power supply today and ensure reliable and efficient power delivery for your critical applications.
Frequently Asked Questions
Where can I buy TRACO POWER TXL03524S?
You can click on the BUY or RFQ button to purchase TXL03524S from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TXL03524S?
You can download the TXL03524S datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TXL03524S?
TRACO POWER
