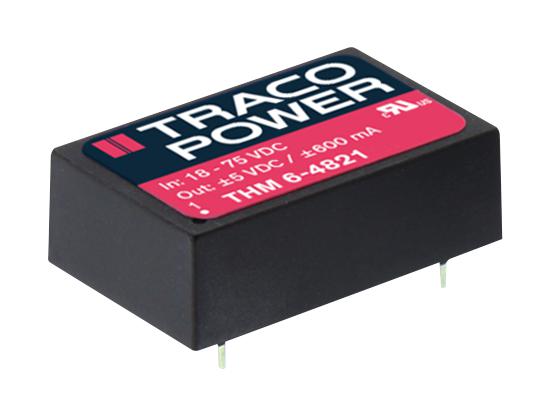

TRACO POWER THM61212 Medical DC/DC Converter
The THM-6 series by Traco Power offers medical-grade, 6 Watt DC/DC converters in DIP-24 packages. These compact units feature reinforced isolation of 5000 VACrms, low leakage current under 2 yA, and an extended temperature range of -40°C to +90°C. Certified to IEC/EN/ES standards including IEC 60601-1 3rd edition for 2 MOPP, they support high efficiency up to 89%, making them well-suited for medical, transportation, control, measurement, and industrial applications. Compliance with UL, CB, and EMC standards ensures safety and reliable operation in demanding environments.
TRACO POWER THM61212 Medical DC/DC Converter Specifications:
- Power: 6 Watt
- Isolation Voltage: 5000 VACrms
- Input Voltage Range: 4.5 - 36 VDC
- Output Voltage Options: 3.3 V, 5 V, 12 V, 15 V, 24 V, 36 V, 48 V
- Output Current: up to 1800 mA depending on model
- Efficiency: Up to 89%
- Temperature Range: -40°C to +90°C
- Leakage Current: Less than 2 yA at 240 VAC
- Switching Frequency: 250 kHz ±25 kHz
- Certification: IEC 60601-1 3rd edition, UL, CB, IEC/EN/ES standards
- EMC Compliance: IEC 60601-1-2 4th edition, EN55032 class A
- Construction: DIP-24 package, non-conductive black plastic casing with silicone potting
- Soldering Temperature: Max 265°C for 10 seconds
- Altitude: Operable up to 5000 meters
- MTBF: > 4,700,000 hours
- Protection: Overload, short circuit, under voltage shutdown
- External Fuse: Recommended 1.25 A slow blow
- Operating Humidity: 5% to 95% RH non-condensing
Buy the Buy Traco Power Medical DC/DC Converter Part Number THM61212 Online
Enhance your medical and industrial device reliability by purchasing the Traco Power THM-6-1212 medical-grade 6 Watt DC/DC converter online. Featuring reinforced 5000 VACrms isolation, low leakage current below 2 yA, and a wide temperature range of -40°C to +90°C, it offers high efficiency up to 89%. Compact, certified to IEC 60601-1 standards, and suitable for demanding environments, this converter guarantees safe, stable, and efficient power supply for sensitive equipment across transportation, control, measurement, and broader industrial applications. Buy now for dependable performance.
Order your Traco Power THM-6-1212 compact medical-grade DC/DC converter today and ensure reliable power performance in critical medical and industrial applications.
