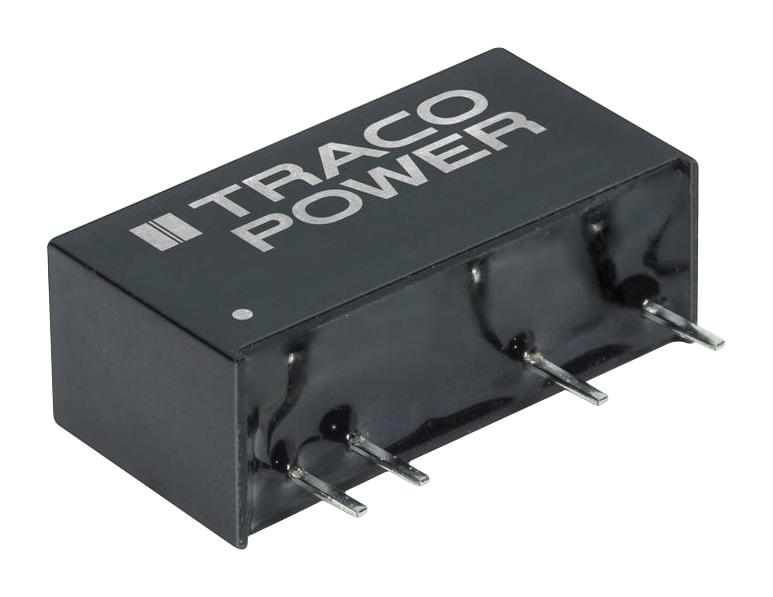

TRACO POWER TRV10513M Medical Power Module
The TRV 1M Series is a compact 1 Watt DC/DC converter designed for medical and industrial applications. It features reinforced isolation of 5000 VAC, semi-regulated outputs, low leakage current less than 2 pA, and comprehensive safety certifications including IEC/EN/ES 60601-1 and IEC/EN/UL 62368-1. Operating within -40°C to +85°C without derating, these converters provide reliable short circuit protection, high efficiency up to 85%, and are suitable for applications demanding medical safety standards and high insulation performance. The series combines compact size, robust protection, and versatility for critical electronic systems requiring isolated power conversion.
TRACO POWER TRV10513M Medical Power Module Specifications:
- Input Voltage Range: 5V, 12V, 15V, 24V DC (+10%)
- Output Power: 1 Watt
- Isolation Voltage: 5000 VAC reinforced
- Operational Temperature: -40°C to +85°C without derating
- Efficiency: up to 85%
- Leakage Current: less than 2 pA
- Short Circuit Protection: continuous, automatic recovery
- Dimensions: compact SIP-9 package
- Isolation Resistance: 70,000 MΩ at 500VDC
- Certifications: IEC/EN/ES 60601-1, IEC/EN/UL 62368-1
- Designed for medical and industrial applications requiring high insulation and safety standards
Buy the TRACO POWER Series TRV 1M 1W DC/DC Converter: TRV10513M
Purchase the TRACO POWER Series TRV 1M 1W DC/DC Converter online today to ensure your electronic devices meet the highest safety and insulation standards. With reinforced 5000 VAC isolation, high efficiency up to 85%, low leakage current less than 2 pA, and comprehensive safety certifications including IEC/EN/ES 60601-1 and IEC/EN/UL 62368-1, this compact converter is ideal for medical and industrial systems. Its wide operating temperature range from -40°C to +85°C, robust short circuit protection, and small SIP-9 form factor make it a reliable choice for healthcare equipment, instrumentation, and critical electronic projects that demand safety, efficiency, and advanced insulation capabilities.
Order your TRACO POWER Series TRV 1M 1W DC/DC Converter today and give your projects the dependable medical-grade isolation they deserve.
Frequently Asked Questions
Where can I buy TRACO POWER TRV10513M?
You can click on the BUY or RFQ button to purchase TRV10513M from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TRV10513M?
You can download the TRV10513M datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TRV10513M?
TRACO POWER
