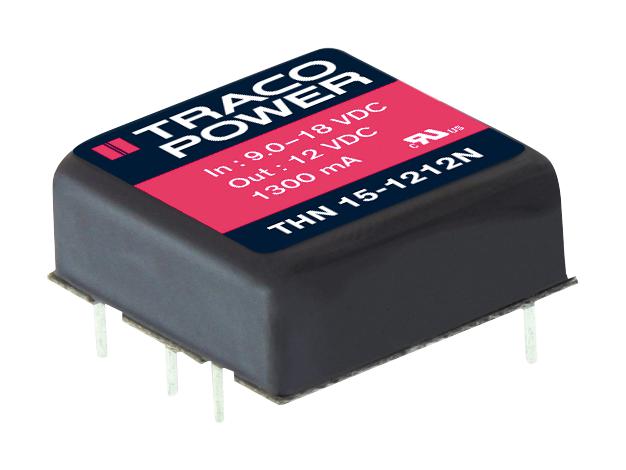

TRACO POWER THN154811N DC/DC Converter
The THN 15N series offers high-performance 15 Watt DC/DC converters in a compact 1” x 1” metal package, featuring a wide 2:1 input voltage range (9-18, 18-36, 36-75 VDC). Designed to operate efficiently from -40°C to +70°C without derating, these encapsulated converters include an internal EN 55032 class A filter, protection against overload, overvoltage, and short circuits, and remote On/Off with trim functions. Their versatile design is ideal for space-constrained applications in industrial, communication, and instrumentation equipment, adhering to latest safety standards with a 3-year warranty.
TRACO POWER THN154811N DC/DC Converter Specifications:
- Power Output: 15 Watt
- Input Voltage Range: 9-18 VDC, 18-36 VDC, 36-75 VDC
- Output Voltage Options: 3.3 V, 5 V, 12 V, 15 V, 24 V (adjustable 10-20%)
- Input Current at No Load: 7-10 mA typical
- Efficiency: Up to 91%
- Operating Temperature Range: -40°C to +70°C without derating
- Isolation Voltage: 1600 VDC (input to output), 1000 VDC (input/output to case)
- Dimensions: 1” x 1” x 0.4” (25.4 mm x 25.4 mm x 10.16 mm)
- Switching Frequency: 220–270 kHz
- Protection: Overload, overvoltage, short circuit, automatic recovery
- Remote On/Off Control: Open or 3-15 VDC (On), Short or 0-1.2 VDC (Off)
- Certifications: UL 62368-1, EN 55032, EN 55011
- MTBF: 1,670,000 hours
Buy the Buy Traco Power DC/DC Converter Part Number THN 15N Series Online
Purchase the Traco Power THN 15N series DC/DC converter online today. This high-efficiency 15 Watt power module features a compact size, wide input range, and comprehensive protection. Its rugged design ensures reliable operation from -40°C to +70°C without derating, suitable for industrial, communication, and instrumentation applications where space is limited. Includes internal filters, remote On/Off control, and adjustable outputs, backed by a 3-year warranty. Perfect for demanding environments that require robust, space-saving power solutions.
Get Traco Power THN 15N series today—built for industrial resilience and long-lasting performance in space-constrained environments.
Frequently Asked Questions
Where can I buy TRACO POWER THN154811N?
You can click on the BUY or RFQ button to purchase THN154811N from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part THN154811N?
You can download the THN154811N datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of THN154811N?
TRACO POWER
