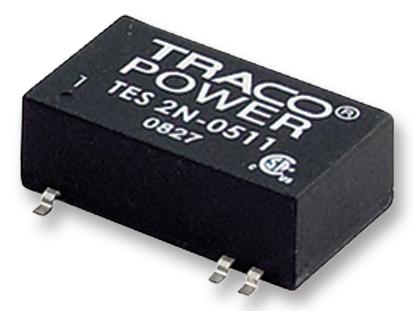

TRACO POWER TES2N1221 DC/DC Converter Module
The TES 2N series comprises high-performance 2W DC/DC converter modules with wide 2:1 input voltage ranges, ideal for battery-powered, instrumentation, communication, and industrial electronics requiring isolated, regulated voltages. Features include low profile SMD design requiring only 3 cm² PCB space, high efficiency for operating temperatures from -40°C to +85°C, and built-in EMI filter conforming to EN 55022, class A. Suitable for on-board power conversion, these modules ensure reliable operation, with protections like short-circuit and undervoltage shutdown, making them a versatile choice for compact, robust electronic systems.
TRACO POWER TES2N1221 DC/DC Converter Module Specifications:
- Input Voltage Range: 5V, 12V, 24V, 48V
- Output Voltages: 3.3V, 5V, 12V, 15V, +5V, +12V, +15V
- Output Current Max: 500 mA (varies by model)
- Efficiency: Up to 81%
- Isolation Voltage: 1500 VDC
- Operating Temperature Range: -40°C to +85°C
- Input Filter: EN 55022, class A
- Dimensions: Low profile SMD package, PCB footprint approximately 3 cm²
- Protection: Short-circuit, undervoltage lockout
- Mounting: Tape and reel, lead-free reflow solder compatible
- Certifications: UL 60950-1, IEC/EN 60950-1, RoHS, Reach
- Soldering Temperature: Max 260°C for 10 seconds
- Isolation Capacitance: 250 pF
- Isolation Resistance: >1000 MΩ at 500 VDC
- Switching Frequency: 300 kHz
Buy the TRACOPOWER TES 2N – Reliable DC/DC Converter for Industrial Applications
Purchase the TRACOPOWER TES 2N series 2 Watt DC/DC converter modules online today and ensure your electronic systems benefit from high reliability, wide input range, and high efficiency. These compact modules are perfect for industrial electronics, communication devices, and instrumentation requiring isolated, regulated power. With built-in protections, EMI filtering, and certifications for safety and environmental standards, ordering online guarantees fast delivery and technical support, allowing your projects to achieve optimal performance with trustworthy power conversion units.
Order your TRACOPOWER TES 2N series 2 Watt DC/DC converter today and equip your electronic projects with dependable, compact power modules designed for industrial use.
Frequently Asked Questions
Where can I buy TRACO POWER TES2N1221?
You can click on the BUY or RFQ button to purchase TES2N1221 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TES2N1221?
You can download the TES2N1221 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TES2N1221?
TRACO POWER
