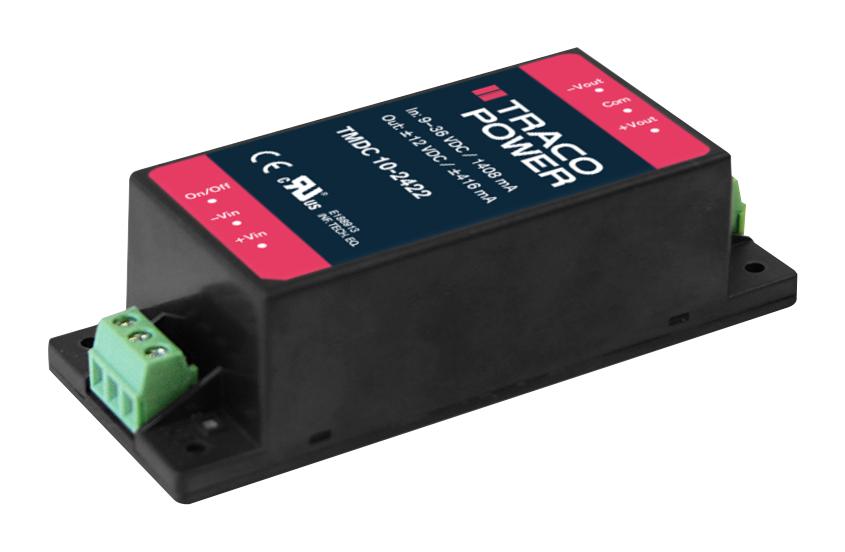

TRACO POWER TMDC104813 industrial DC/DC converter
The TMDC 10 series by Traco Power are compact, fully encapsulated industrial DC/DC converters delivering 10W power, suitable for harsh environments. Featuring an ultra wide input voltage range of 9-36 VDC or 18-75 VDC, these modules operate reliably from -40°C up to +80°C without derating. They include integrated filters for EMI emissions (EN 55032) and immunity (EN 55035), and provide 3000 VDC isolation. With certifications such as UL 62368-1, they are ideal for rugged industrial, automation, and communications applications requiring high EMC immunity and safety features.
TRACO POWER TMDC104813 industrial DC/DC converter Specifications:
- Input Voltage Range: 9-36 VDC or 18-75 VDC with ultrawide 4:1 ratio
- Output Power: 10 Watts with fully regulated outputs
- Isolation Voltage: 3000 VDC input to output
- Operating Temperature: -40°C to +80°C without derating
- Efficiency: 84% to 86% depending on model
- Size: 3.11 x 1.34 x 0.87 inches (79 x 34 x 22 mm)
- Protection: Overload, undervoltage, short circuit; DC-OK LED, Remote On/Off
- Certifications: UL 62368-1, IEC 62368-1, EN 55032 & EN 55035 EMC compliance
- Ingress Protection: Fully encapsulated plastic case rated UL 94V-0
- Connection: Screw terminal
Buy the Traco Power TMDC 10 Series – Reliable Industrial DC/DC Converter for Harsh Conditions
Secure your system’s power supply with the highly reliable TMDC 10 series by Traco Power. These compact, fully encapsulated modules deliver 10W power with wide input ranges, high efficiency, and exceptional EMI filtering. Designed for demanding industrial applications, they operate reliably from -40°C to +80°C, ensuring durability in harsh environments. Features include high isolation voltage, integrated protections, UL safety certifications, and remote on/off control. Purchase online today for dependable performance and peace of mind in your industrial or automation projects.
Buy Traco Power TMDC 10 Series now and experience unmatched reliability and performance in demanding industrial environments.
Frequently Asked Questions
Where can I buy TRACO POWER TMDC104813?
You can click on the BUY or RFQ button to purchase TMDC104813 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TMDC104813?
You can download the TMDC104813 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TMDC104813?
TRACO POWER
