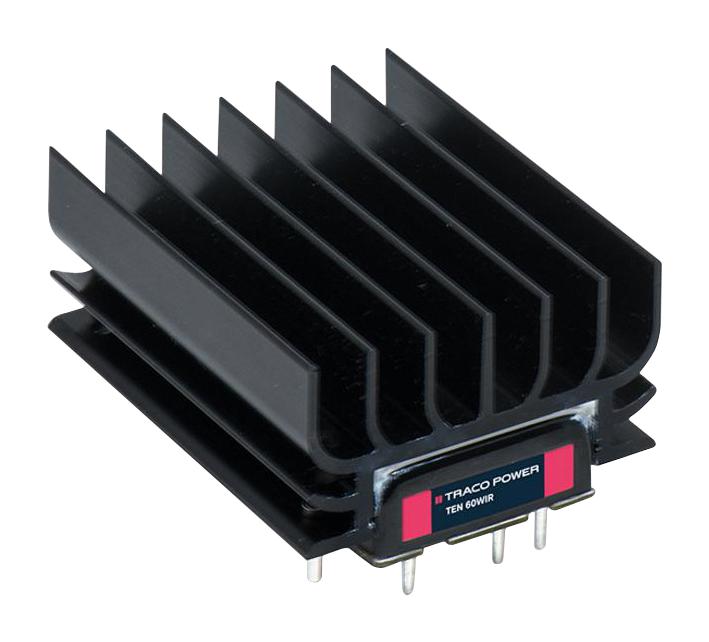

TRACO POWER TEN602418WIR Railway Power Converter
The TEN 6OWIR series is a ruggedized 60 Watt DC/DC converter designed for railway and industrial applications, featuring a compact 2" x 1" metal package with a preassembled heatsink. It supports a wide 4:1 input voltage range from 9-36 VDC up to 36-160 VDC, meeting EN 50155 and EN 61373 standards. The converter offers high efficiency up to 92%, thermal stability with an operating temperature of -40°C to +70°C, and provides features like remote on/off, adjustable output, and 3,000 VDC isolation, ensuring reliable performance in harsh environments.
TRACO POWER TEN602418WIR Railway Power Converter Specifications:
- Power: 60 Watt
- Input Voltage Range: 9-36 VDC, 36-160 VDC
- Input Current at no load: 15 mA typ. (24, 48, 4410 V models)
- Surge Voltage: 50 VDC (24 V), 100 VDC (48 V), 200 VDC (4410 V)
- Isolation Voltage: 3,000 VDC input to output/case
- Output Power Limit: 60 W
- Output Voltage Adjustment: ±10% to +20% for 15V/24V models, ±10% for others
- Voltage Accuracy: ≤1%
- Regulation: 0.2% input variation, 0.5% load variation
- Ripple and Noise: 75-360 mVp-p (varies per output voltage)
- Temperature Range: -40°C to +70°C (full load), derates above 70°C
- Efficiency: Up to 92%
- Cooling: Natural convection
- Operating Temperature: -40°C to +85°C
- Humidity: Max. 95% (non-condensing)
- MTBF: 724,500 hours
- Protection: Short circuit, overvoltage, undervoltage lockout
- Standards: EN 50155, EN 61373, IEC 62368-1, UL 62368-1, EN 45545-2
- Vibration: MIL-STD-810F, EN 61373
Buy the Traco Power TEN 6OWIR – Reliable Railway DC/DC Converter for Industrial Applications
Experience the robustness and reliability of the TEN 6OWIR series by purchasing online today. Designed for railway and industrial use, this 60 Watt DC/DC converter offers wide voltage input, high efficiency up to 92%, and ensures stable power delivery in demanding environments. Its compact size, thermal stability, and extensive safety approvals make it ideal for transportation systems and rugged industrial applications. Order now to ensure your system operates reliably with minimal downtime—trust Traco Power for quality and performance.
Get Traco Power TEN 6OWIR series today—built for high efficiency, railway standards, and long-lasting durability.
Frequently Asked Questions
Where can I buy TRACO POWER TEN602418WIR?
You can click on the BUY or RFQ button to purchase TEN602418WIR from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TEN602418WIR?
You can download the TEN602418WIR datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TEN602418WIR?
TRACO POWER
