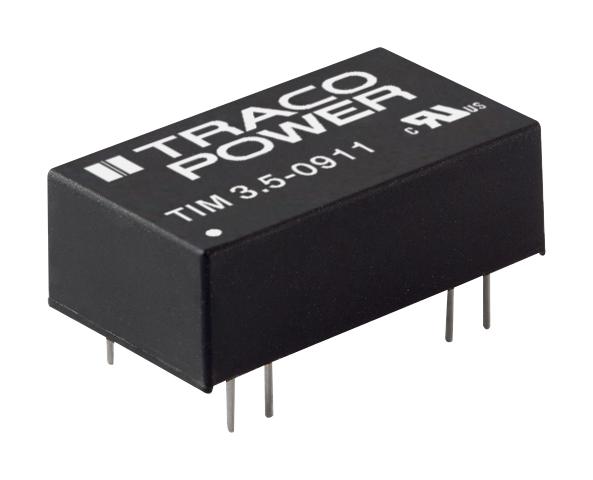

TRACO POWER TIM354811 Medical DC/DC Converter
This component is designed for medical applications, ensuring high reliability and safety standards suitable for healthcare equipment and devices. It offers reinforced electrical isolation of 5000 VACrms, low leakage current below 2 pA, and operates within an extended temperature range of -40°C to 90°C. Certified according to IEC/EN/ES 60601-1 with 2XMOPP, it provides stable output voltages for medical systems. The compact DIP-16 package and certifications make it ideal for demanding healthcare equipment requiring high safety, efficiency, and robust performance at altitudes up to 5000 meters.
TRACO POWER TIM354811 Medical DC/DC Converter Specifications:
- Power: 3.5 Watt
- Package: DIP-16
- Isolation: 5000 VACrms
- Working Voltage: 250 VAC
- Input Voltage Range: 4.5 VDC to 42 VDC
- Output Voltage Options: 4.5 V, 5 V, 9 V, 12 V, 15 V, 24 V, 36 V
- Output Current Max: 700 mA
- Efficiency: 17% to 83% depending on model
- Leakage Current: < 2 pA
- Temperature Range: -40°C to 90°C
- Certifications: IEC/EN/ES 60601-1, IEC 60601-1-2, EN55032
- Altitude Operation: up to 5000 m
- Compliance: Surge Voltage up to 100 V, EMI and EMC tested
- Dimensions: Compact DIP-16 package, detailed in datasheet
- Soldering Temp: 260°C for 10s
- MTBF: 5,041,000 hours
- Safety: Reinforced insulation, leakage current safety standards, low noise
Buy the Buy Traco Power Medical DC/DC Converter Part Number TIM354811 Online
Purchase the Traco Power TIM354811 medical DC/DC converter online for high-reliability power supply in healthcare applications. This 3.5W device features reinforced isolation of 5000 VACrms, low leakage current of less than 2 pA, and complies with IEC/EN/ES 60601-1 standards. Its compact DIP-16 package allows for easy integration into medical devices, delivering stable voltages with efficiencies up to 83%. Ensure your medical equipment meets stringent safety, EMI, and environmental requirements by ordering online today for quick delivery and trusted quality.
Buy Traco Power TIM354811 now and experience unmatched reliability and performance in medical-grade power conversion.
Frequently Asked Questions
Where can I buy TRACO POWER TIM354811?
You can click on the BUY or RFQ button to purchase TIM354811 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TIM354811?
You can download the TIM354811 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TIM354811?
TRACO POWER
