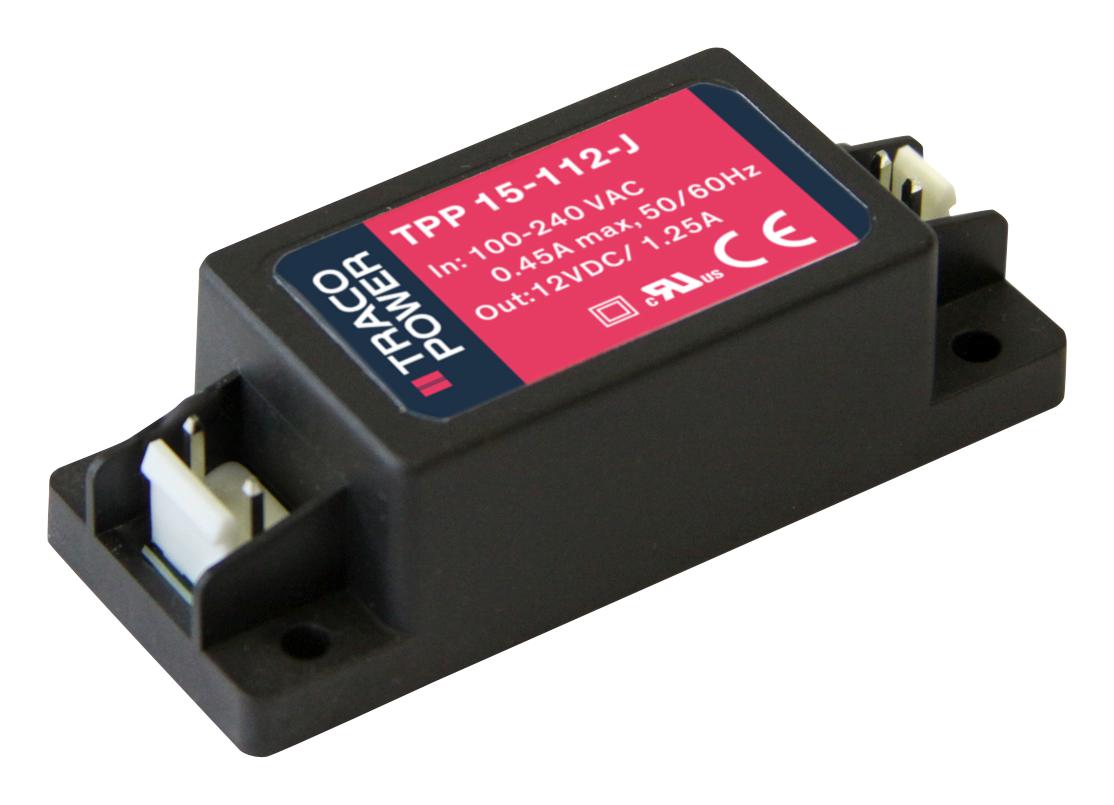

TRACO POWER TPP15115J Medical Power Supply
The TPP 15-J Series is a compact, high-efficiency 15-Watt medical power supply designed for reliable operation in medical devices. Certified to IEC/EN/ES 60601-1 standards for 2 x MOPP, it features reinforced insulation, low leakage current below 75 pA, and EMC compliance with IEC 60601-1-2 4th edition. It operates across a wide temperature range from -40°C to +70°C, with high power density in a small package measuring 1.1” x 2.8”. Suitable for BF applications with excellent safety, efficiency up to 88.5%, and robust protection features, it is ideal for medical and industrial use.
TRACO POWER TPP15115J Medical Power Supply Specifications:
- Output Power: 13.2W to 15W
- Output Voltage: 3.3 VDC, 5 VDC, 9 VDC, 12 VDC, 15 VDC, 24 VDC, 36 VDC, 48 VDC
- Output Current: 4,000 mA, 3,000 mA, 1,670 mA, 1,260 mA, 1,000 mA, 625 mA, 417 mA, 313 mA respectively
- Output Voltage Adjustment Range: 10%
- Efficiency: Up to 88.5%
- Input Voltage AC: 85 - 264 VAC; DC: 120 - 370 VDC
- Input Frequency: 47–63 Hz
- No-Load Power Consumption: Max 75 mW
- Operating Temperature: -40°C to +70°C, up to 85°C with derating
- Isolation Voltage: 5,657 VDC input to output, 21,121 VDC input to case
- Leakage Current: <75 pA at rated conditions
- Mounting: Natural convection cooling, no internal fan
- Dimensions: 1.1” x 2.8” (28 mm x 71.7 mm)
- Vibration & Shock: IEC 60068 tested
- Certifications: IEC 60601-1, IEC 62368-1, UL 60601-1
- Protection: Short circuit, overvoltage, and overload protections
- Altitude Operation: Up to 5000 m
Buy the Traco Power TPP 15-J – Reliable Medical Power Supply for Industrial Applications
Purchase the Traco Power TPP 15-J Series 15 Watt medical power supply online now to guarantee reliable, efficient, and safe operation for your medical and industrial equipment. Designed to meet stringent safety standards with reinforced insulation, low leakage current, and high efficiency, this power supply ensures consistent performance across a wide temperature range. Its compact size and high power density make it ideal for space-constrained applications, while advanced protections safeguard your devices. Order today to enhance your project’s safety and reliability with trusted medical-grade power solutions.
Order your Traco Power TPP 15-J Series 15 Watt medical power supply today and ensure your medical devices operate with the highest safety and efficiency.
Frequently Asked Questions
Where can I buy TRACO POWER TPP15115J?
You can click on the BUY or RFQ button to purchase TPP15115J from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TPP15115J?
You can download the TPP15115J datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TPP15115J?
TRACO POWER
