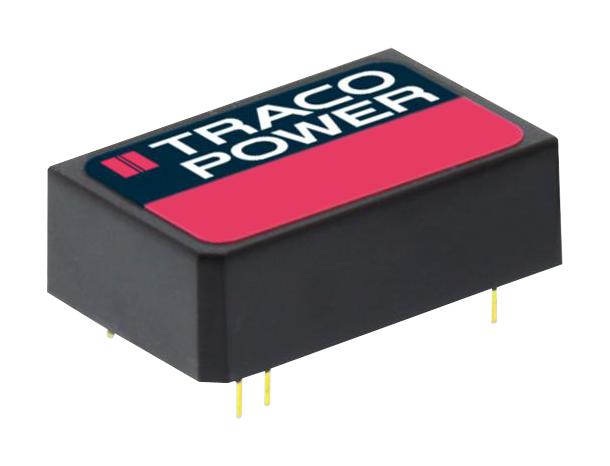

TRACO POWER TRI64823 DC/DC Converter
The TRI 6 Series is a compact, high-isolation 6 Watt DC/DC converter designed for demanding industrial, transportation, and instrumentation applications. It features reinforced insulation capable of withstanding high test voltages (up to 9000 VDC for 1s) and operating voltages (up to 1000 VAC rms). The converter offers a wide input voltage range (9-75 VDC), high efficiency up to 89%, and low no-load power consumption. It is fully certified for safety standards IEC 62368-1 and UL 62368-1, ensuring operational reliability from -40°C to +85°C.
TRACO POWER TRI64823 DC/DC Converter Specifications:
- Input Voltage Range: 9-75 VDC (2:1 range)
- Output Power: 6 Watt
- Isolation Voltage: 9000 VDC for 1s, 7071 VDC for 60s, rated working voltage 1000 VAC rms
- Efficiency: Up to 89%
- Operating Temperature: -40°C to +85°C
- No-load Power Consumption: 120 - 240 mW
- Ripple and Noise: 70 mVp-p (20 MHz bandwidth)
- Protection: Overload, overvoltage, short circuit (automatic recovery)
- Dimensions: Compact DIP-24 package
- Compliance: IEC 62368-1, UL 62368-1, EN 55032, FCC Part 15, class A
- Housing Material: UL 94V-0 rated plastic
- Insulation System: Reinforced insulation, input to output
- Cooling: Natural convection, altitude up to 5000 m
- Switching Frequency: 330 kHz approx.
- Weight: 16.59 grams
Buy the Traco Power Series TRI 6 Watt DC/DC Converter: TRI64823
Secure your power management needs with the Traco Power TRI64823, a compact 6 Watt high-isolation DC/DC converter. Designed for demanding environments, it offers reinforced insulation capable of withstanding high test voltages up to 9000 VDC and provides operational safety with full safety standards certification. Its wide input voltage range (9-75 VDC) ensures versatile applications. With efficiency up to 89%, low no-load power consumption, and robust overload and short circuit protection, it guarantees reliable performance in industrial, transportation, and instrumentation sectors. Order online today to enhance your system’s power stability.
Buy Traco Power TRI64823 now and experience unmatched reliability, high isolation, and efficient power conversion for critical industrial applications.
