TRACO POWER TMPW5103J industrial power supply
The TMPW 5-J is a compact 5 Watt AC/DC power supply series designed for industrial and household applications. It features an extended input voltage range of 90-305 VAC, high efficiency up to 83%, and an operating temperature range of -40°C to +70°C. Equipped with reinforced insulation, 4000 VAC isolation, internal EN 55032 class B filter, and safety certifications including IEC/EN/UL 62368-1, it ensures reliable performance and safety. The series includes multiple output voltage options, meets international standards, and is optimized for space-saving installations in diverse technical environments.
TRACO POWER TMPW5103J industrial power supply Specifications:
- Input Voltage: 90 - 305 VAC, 100 - 250 VDC, 264 VAC max.
- Input Frequency: 47 - 63 Hz (designed for 47 - 440 Hz)
- Output Power: 5 Watt
- Output Voltages: 3.3 V, 5 V, 12 V, 24 V options
- Output Current: 1'515 mA, 1'000 mA, 420 mA, 210 mA respectively
- Efficiency: up to 83%
- Isolation Voltage: 4000 VAC
- Operating Temperature: -40°C to +70°C
- Ripple and Noise: 60-200 mVp-p depending on load
- Protection Class: II (Reinforced Insulation)
- Certifications: IEC/EN/UL 62368-1, EN 60335-1
- Dimensions: 2.17 inch x 1.08 inch (55.1 x 45 mm)
- Housing Material: UL 94 V-0 rated plastic
- Weight: 60 g
- Environmental: Reach and RoHS compliant

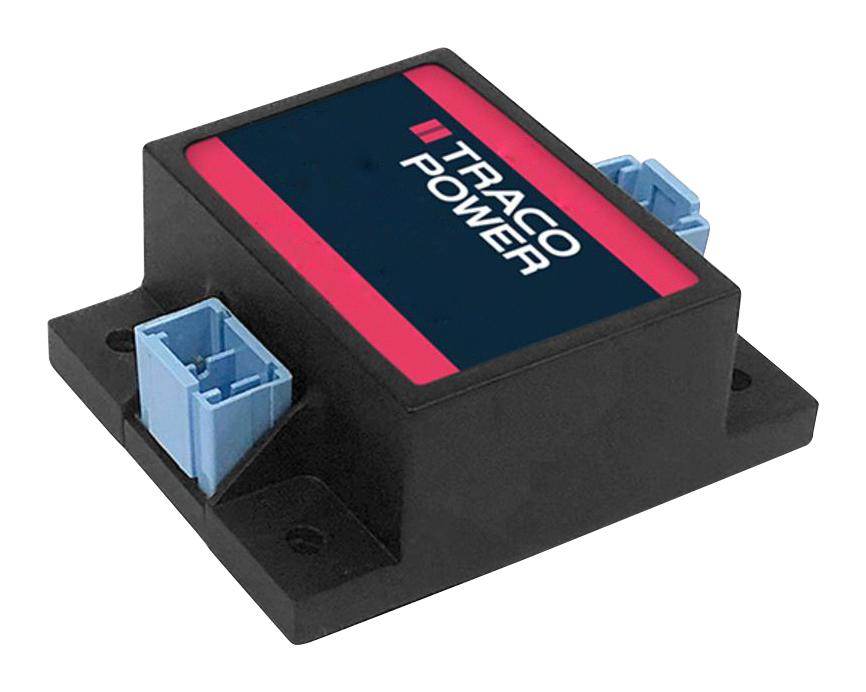

Buy the Traco Power Series TMPW 5-J 5 Watt Power Supply: TMPW 5-105-J
Purchase the Traco Power TMPW 5-J series online for reliable, efficient power solutions suitable for industrial, household, and building applications. This 5 Watt power supply features a wide input voltage range of 90-305 VAC, high efficiency up to 83%, reinforced insulation, and safety certifications such as IEC/EN/UL 62368-1. Its compact design measures only 2.17 x 1.08 inches, making it ideal for space-constrained installations. Enjoy fast delivery, trusted quality, and excellent support when buying this versatile power module online today.
Get Traco Power TMPW 5-105-J today—built for precision with wide input range and high efficiency.
Frequently Asked Questions
Where can I buy TRACO POWER TMPW5103J?
You can click on the BUY or RFQ button to purchase TMPW5103J from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TMPW5103J?
You can download the TMPW5103J datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TMPW5103J?
TRACO POWER
