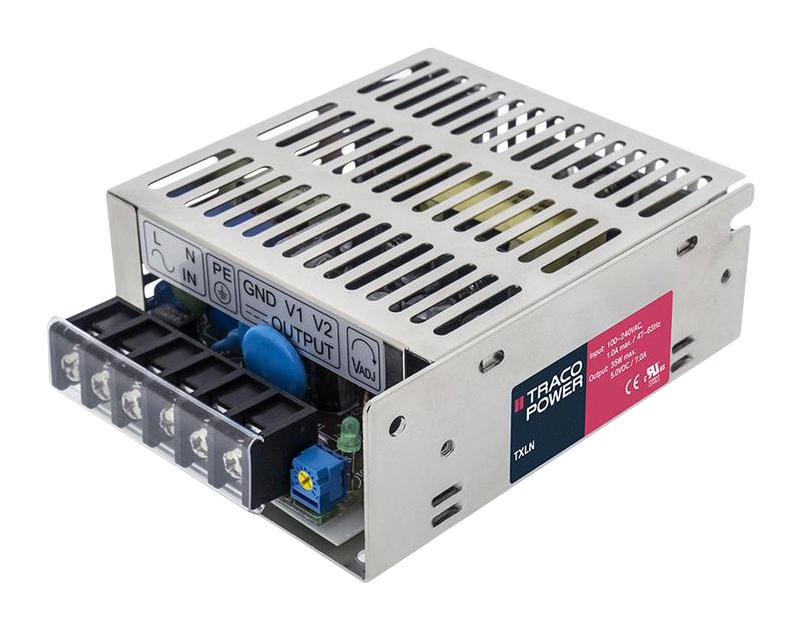

TRACO POWER TXLN03523M3 Power Supply
The TXLN 035 Series is a family of compact, encased power supplies designed for cost-sensitive applications. Featuring a low-profile metal case and screw terminal connection, these units are easy to install in various equipment. They support universal input voltage from 88 to 264VAC and meet European EMC standards and the Low Voltage Directive (LVD). The power supplies are convection-cooled (fanless), offering high efficiency up to 86%. They comply with EN 61000-3-2 and include protections against short circuit, overvoltage, and overload conditions. Safety approvals from IEC/EN/UL 62368-1 ensure reliable performance. With a 3-year warranty, these devices are rated for pollution degree 2 with protection class I (connection to PE). Operating temperatures range from -20°C to +70°C, with a switching frequency of 58kHz to 72kHz (PWM). The units have an aluminum housing and are designed for easy integration in various electronic systems.
TRACO POWER TXLN03523M3 Power Supply Specifications:
- Input Voltage: 88-264 VAC, 125-375 VDC
- Input Frequency: 47-63 Hz
- Output Power: 35 W
- Output Voltage Options: 3.3 V, 5 V, 12 V, 15 V, 24 V, 48 V
- Output Current: 9,000 mA, 7,000 mA, 3,000 mA, etc. depending on model
- Efficiency: Up to 86%
- Protection: Short circuit, overvoltage, overload
- Operating Temperature: -20°C to +70°C
- Housing Material: Aluminum
- Cooling: Natural convection
- Switching Frequency: 58-72 kHz
- Safety Certifications: IEC/EN/UL 62368-1
- Protection Class: Class I (PE connection)
- Pollution Degree: 2
Buy the Traco Power Series Power Supply: TXLN 035 Series 35W
Enhance your electronic system with the Traco Power TXLN 035 Series 35W power supply. Featuring universal input, high efficiency up to 86%, and fanless cooling for silent operation. Its robust metal case, safety certification, and protections against short circuit, overvoltage, and overload guarantee reliable performance. Designed for cost-sensitive applications, these power supplies are easy to install with screw terminal connections and comply with European EMC standards and the Low Voltage Directive. A 3-year warranty ensures durability and peace of mind for ongoing operations.
Get Traco Power TXLN 035 Series 35W today—built for precision and long-lasting durability.
Frequently Asked Questions
Where can I buy TRACO POWER TXLN03523M3?
You can click on the BUY or RFQ button to purchase TXLN03523M3 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TXLN03523M3?
You can download the TXLN03523M3 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TXLN03523M3?
TRACO POWER
