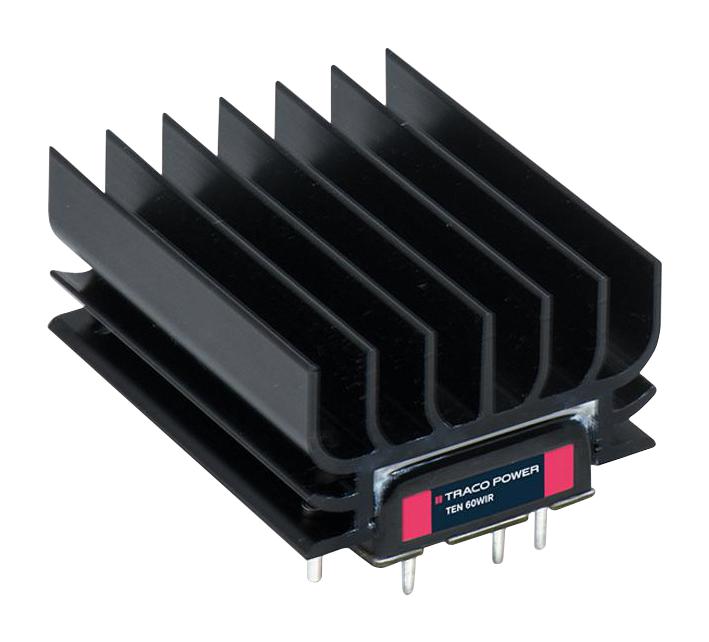

TRACO POWER TEN607218WIR Railway DC/DC Converter
The TEN 6OWIR is a rugged, railway-approved DC/DC converter delivering 60 Watts in a compact 2x1 inch package. It features a wide 4:1 input voltage range, high efficiency up to 92%, and supports operating temperatures from -40°C to +90°C. Designed for transportation systems, it complies with EN 50155, EN 61373, and EN 45545-2 fire standards. It provides flexible output options with adjustable voltage, remote On/Off, 3000 VDC I/O isolation, and robust resistance against electromagnetic interference, shock, vibration, and thermal stress, making it ideal for demanding industrial and transportation applications.
TRACO POWER TEN607218WIR Railway DC/DC Converter Specifications:
- Input Voltage Range: 9-36, 18-75, 36-160 VDC
- Output Power: 60 Watt
- Efficiency: Up to 92%
- Operating Temperature Range: -40°C to +90°C
- Isolation Voltage: 3,000 VDC
- Adjustable Output Voltage: ±20% for some models, ±10% for others
- Remote On/Off Control
- Power Derating: 2.86%/K above 70°C
- Cooling: Natural convection
- Short Circuit Protection: Automatic recovery
- Overvoltage Protection: 124-133% of Vout
- Safety Standards: EN 50155, EN 61373, EN 45545-2 fire behavior, IEC/EN 62368-1, UL 62368-1
- Vibration & Shock Resistance: MIL-STD-810F, EN 61373
- Dimensions: 50.8 mm x 25.4 mm x 12.7 mm (2”x1”x0.5”)
- Weight: Approximately 66.99 g
- Environmental Compliance: Reach, RoHS, EN 45545-2
Buy the TRACO POWER TEN 6OWIR – Reliable Railway DC/DC Converter for Industrial Applications
Purchase the TRACO POWER TEN 6OWIR series, a rugged 60 Watt railway-approved DC/DC converter designed for demanding industrial and transportation systems. Its compact 2x1 inch size, high efficiency of up to 92%, and wide input voltage range from 9V to 160V DC allow easy integration into various rugged applications. Featuring adjustable outputs, remote On/Off, and a robust 3000 VDC isolation, it withstands harsh environments with excellent electromagnetic interference resistance, shock, and vibration resilience. Benefit from this reliable power solution and keep your systems running smoothly.
Order your TRACO POWER TEN 6OWIR series 60 Watt railway DC/DC converter today and ensure your transportation and industrial applications operate with dependable power.
Frequently Asked Questions
Where can I buy TRACO POWER TEN607218WIR?
You can click on the BUY or RFQ button to purchase TEN607218WIR from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TEN607218WIR?
You can download the TEN607218WIR datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TEN607218WIR?
TRACO POWER
