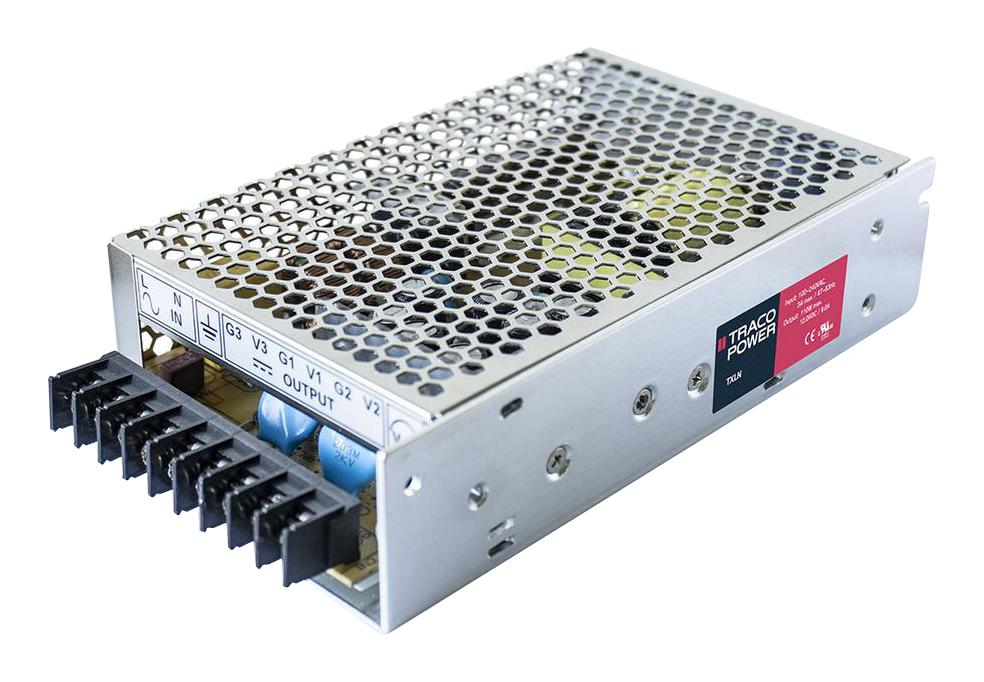

TRACO POWER TXLN110124 Power Supply
The TXLN 110 series is a compact, high-efficiency power supply ideal for cost-sensitive applications. Featuring a durable metal enclosure and screw terminal connections, it supports universal input of 88-264VAC. Convection cooling ensures fanless operation, with efficiency up to 86% and compliance with EN 61000-3-2 standards. It provides protections against short circuits, overvoltage, and overloads. Certified to IEC, EN, and UL 62368-1 safety standards, these power supplies are suitable for various industrial and electronic equipment, with a 3-year warranty and operating temperature from -20°C to +70°C.
TRACO POWER TXLN110124 Power Supply Specifications:
- Input Voltage: 88-264 VAC, 125-375 VDC (designed for, no certification)
- Input Frequency: 50-63 Hz
- Output Power: 110 W
- Output Voltage: 24 VDC (nominal)
- Output Current: 4,600 mA (max. 86%)
- Efficiency: Up to 86%
- Protection: Short circuit, overvoltage, overload
- Isolation Voltage: Input to Output 3000 VAC, Input to Case 1800 VAC
- Operating Temperature: -20°C to +70°C
- Cooling System: Natural convection
- Housing Material: Aluminum
- Connection Type: Screw terminal
- Certification: IEC 62368-1, UL 62368-1, EN 61000-6-3, EN 61000-6-1
- Safety Class: Class I with PE connection
- Pollution Degree: PD 2
- Overvoltage Category: OVC II
- Switching Frequency: ~61 kHz
Buy the Traco Power Series TXLN 110 Watt Power Supply: TXLN110124
Discover the reliable Traco Power Series TXLN110124 power supply, offering 110 watts of stable output, high efficiency, and comprehensive safety protections. Its compact, fanless design ensures quiet operation and easy installation in industrial, commercial, or electronic devices. Certified to IEC, UL, and EN standards, it features universal input, overload protections, and a robust aluminum housing. Perfect for cost-sensitive applications requiring durable and efficient power solutions, order online now to secure fast delivery and seamless integration into your project.
Order your Traco Power Series TXLN110124 today and give your projects the dependable quality they deserve, with high efficiency and safety standards.
Frequently Asked Questions
Where can I buy TRACO POWER TXLN110124?
You can click on the BUY or RFQ button to purchase TXLN110124 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TXLN110124?
You can download the TXLN110124 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TXLN110124?
TRACO POWER
