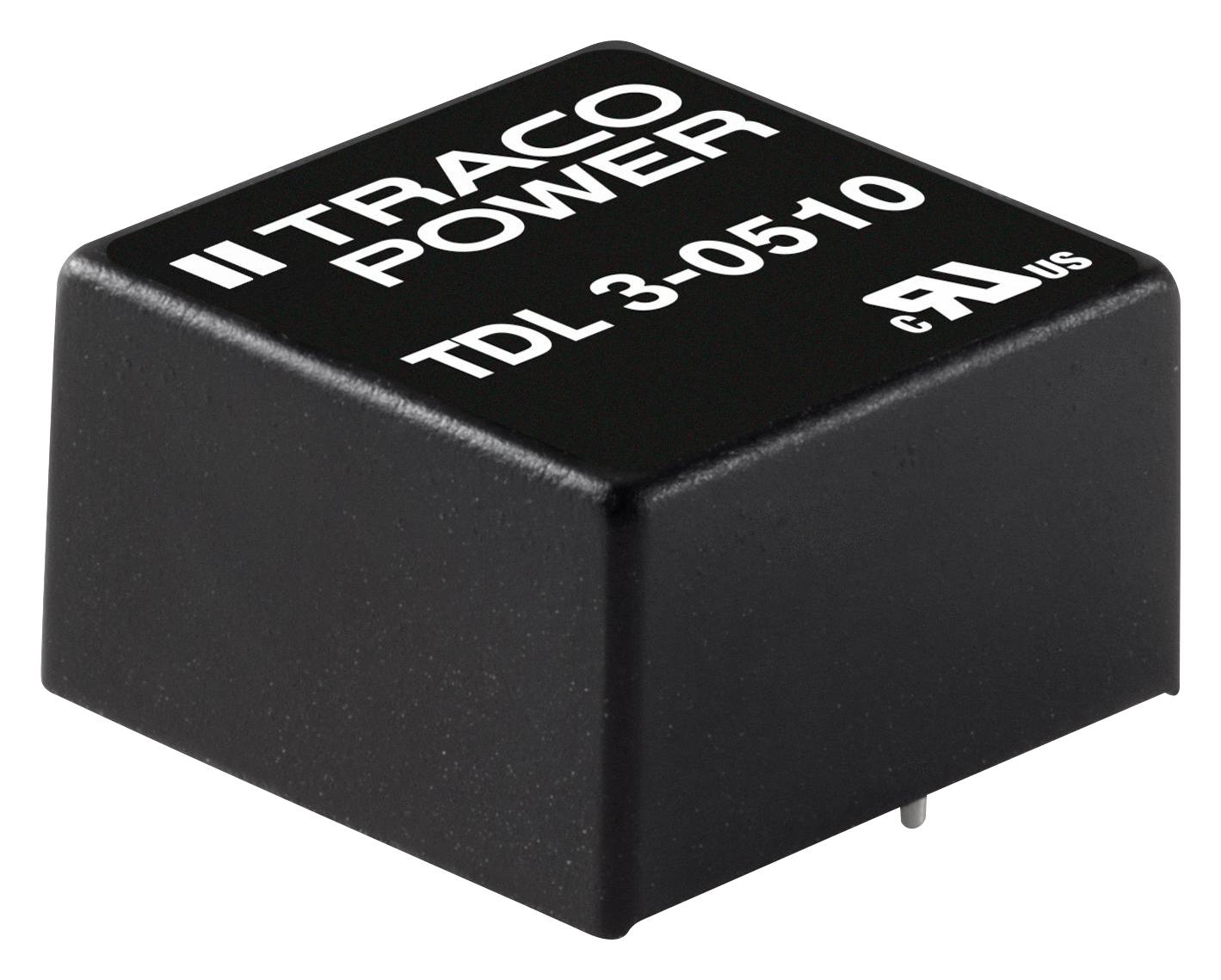

TRACO POWER TDL30510 DC/DC Converter
The TDL 3 series from TracoPower consists of 3W single and dual output DC/DC converters. These compact, high-efficiency converters feature a wide 2:1 input voltage range and come in a small DIP package measuring 14mm x 8mm x 14mm. They include continuous, automatic recovery short circuit and overload protection. Available with nominal input voltages of 5V, 12V, 24V, or 48V, and output voltages of 3.3V, 5V, 12V, 15V, ±5V, ±12V, or ±15V. Maximum output currents range from 100mA to 600mA depending on the model. They offer up to 87% efficiency at a switching frequency of at least 100kHz. The converters provide 1500VDC isolation voltage for 60 seconds, with an isolation capacitance of 100pF and resistance greater than 1GΩ. Ripple and noise are typically 70mVp-p within a 20MHz bandwidth. Approved under UL 60950-1 and IEC/EN 60950-1 safety standards, they operate reliably in temperatures from -40°C to 70°C and come with a 3-year warranty.
TRACO POWER TDL30510 DC/DC Converter Specifications:
- Power: 3W
- Input Voltage Range: 2:1 wide input, typically 5V, 12V, 24V, 48V
- Output Voltage: 3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V
- Maximum Output Current: 100mA to 600mA depending on model
- Efficiency: Up to 87%
- Isolation Voltage: 1500VDC for 60 seconds
- Isolation Capacitance: 100pF typical
- Isolation Resistance: >1 GΩ
- Ripple & Noise: 70mVp-p (20 MHz bandwidth)
- Operating Temperature: -40°C to +70°C (derating above 70°C)
- Switching Frequency: Min 100 kHz
- Protection: Short circuit, overload, automatic recovery
- Case Material: UL 94V-0 rated silicone potting
- Soldering Temperature: Max 260°C for 10 sec
- Dimensions: 14mm x 8mm x 14mm
- Humidity: Up to 95% RH non-condensing
- Safety Standards: UL 60950-1, IEC/EN 60950-1
- Warranty: 3 years
Buy the Traco Power Series TDL 3 DC/DC Converter: TDL30510
Enhance your electronic projects and industrial applications with the TDL 3 series 3 watt high-efficiency DC/DC converters. Featuring a wide 2:1 input voltage range, these robust and compact devices provide up to 87% efficiency, ensuring reliable power regulation in tight spaces. Equipped with comprehensive protections, including short circuit and overload protection with automatic recovery, they meet UL and IEC standards. Operating in temperatures from -40°C to +70°C, these converters are ideal for demanding environments. Invest in the TDL 3 series now for dependable, efficient power conversion backed by a 3-year warranty.
Buy Traco Power TDL30510 now and experience unmatched reliability and performance in compact industrial power solutions.
Frequently Asked Questions
Where can I buy TRACO POWER TDL30510?
You can click on the BUY or RFQ button to purchase TDL30510 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TDL30510?
You can download the TDL30510 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TDL30510?
TRACO POWER
