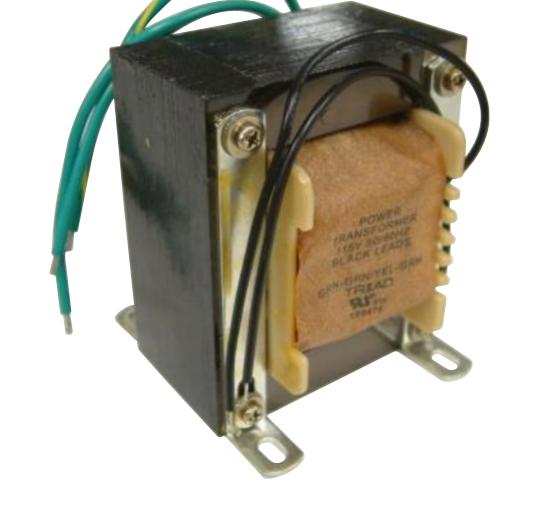

TRIAD MAGNETICS F401U Power Transformer
The F-401U power transformer is a reliable and durable component designed for various industrial and control applications. It features a single secondary chassis mount with 24VCT at 10 Amps, capable of handling up to 240 VA of power. Constructed with UL recognized materials, it is designed for safety and efficiency, including 100% hipot testing with 1500V insulation between windings and core. Its robust construction ensures long-term performance, and RoHS compliance guarantees it meet environmental standards. Ideal for use in control panels and industrial equipment requiring stable voltage regulation and high safety margins.
TRIAD MAGNETICS F401U Power Transformer Specifications:
- Maximum Power: 240 VA
- Primary Voltage: 115V 50/60 Hz
- Secondary Voltage: 24VCT @ 10.0 Amps
- Voltage Regulation: 10% TYP @ full load to no load
- Temperature Rise: 35°C TYP (45°C MAX)
- Construction: Wound on a single nylon bobbin, UL recognized Class B materials, rated for 130°C
- Dimensions: 7 inches lead length, weight approximately 8.0 lbs
- Insulation: 1500V Hipot Tested between primary/secondary and core
- RoHS Compliance: Meets 2015/863/EU requirements
- Color Coding: Primary - Black to Black, Secondary - Green to Green, GRN/YEL
- Safety: UL Recognized Materials, 100% hipot tested for insulation integrity
Buy the Triad Power Transformer – Reliable Control Component for Industrial Applications
Purchase the Triad F-401U power transformer online today and ensure your industrial or control systems operate with dependable voltage regulation. Designed with UL recognized materials, it features a 24VCT secondary at 10 Amps, capable of handling 240 VA, perfect for control panels, automation, and industrial electronics. Its robust construction includes 1500V hipot testing for safety, RoHS compliance, and high-temperature rated materials, making it a reliable choice for demanding applications. Order now and enhance your system’s performance with a trusted, proven power transformer.
Buy Triad F-401U power transformer now and experience unmatched reliability and performance, ideal for control panels, automation systems, and industrial equipment.
Frequently Asked Questions
Where can I buy TRIAD MAGNETICS F401U?
You can click on the BUY or RFQ button to purchase F401U from an authorized TRIAD MAGNETICS distributor.
How do I troubleshoot issues or seek technical support for part F401U?
You can download the F401U datasheet or visit the TRIAD MAGNETICS website for support.
Who is the manufacturer of F401U?
TRIAD MAGNETICS
