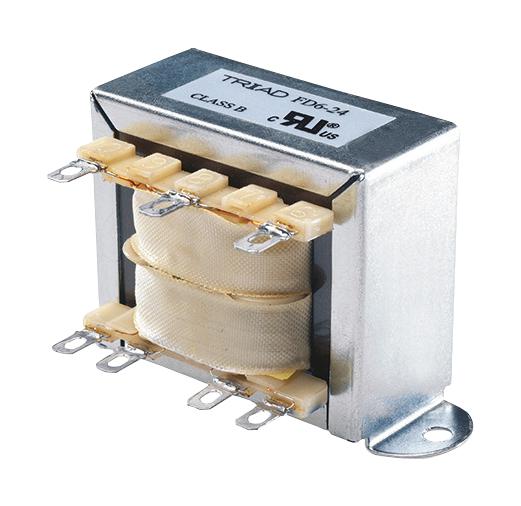

TRIAD MAGNETICS F824 Power Transformer
This compact power transformer offers a lightweight, space-saving solution suitable for power management and industrial environments. With a maximum power of 100VA, it features an input voltage of 115VAC at 50/60Hz and an output of 24VCT at 4A. Its split bobbin construction reduces size and eliminates costly shielding, ensuring efficient performance. Built with UL Class B insulation and safety compliance, its quick-connect terminations make installation straightforward. Perfect for diverse industrial applications requiring reliable, high-quality power transformation in constrained spaces.
TRIAD MAGNETICS F824 Power Transformer Specifications:
- Maximum Power: 100.0VA
- Input Voltage: 115VAC@50/60Hz
- Output Voltage: 24.0VCT@4.0A
- Hipot: 2500VAC primary to secondary; 1500VAC windings to core
- Construction: Split bobbin, non concentric winding, UL Class B Insulation
- Terminations: Suitable for quick connects or soldering
- Dimensions: 2.562 x 3.562 x 0.187 inches, terminal size 0.187” x 0.021”
- Weight: 2.75 lbs
- Certifications: UL File E53148, UL 5085-1 and 2, RoHS compliant
- Safety: UL listed for general purpose applications
- Application: Power management, industrial control systems, automation equipment, space-constrained environments
Buy the Triad F8-24 – Reliable Power Transformer for Industrial Applications
Enhance your industrial power solutions with the Triad F8-24 power transformer. This compact, lightweight device provides 100VA power, 24VCT output at 4A, and features UL Class B insulation, ensuring safety and durability. Its split bobbin construction reduces size and improves efficiency, making it ideal for industrial environments where space is limited. Easy quick-connect terminations simplify installation. Trust this transformer to deliver reliable performance in demanding applications, improving system stability and operational efficiency. Purchase online today for swift, reliable delivery.
Buy Triad F8-24 now and experience unmatched reliability and efficient power management in your industrial systems.
Frequently Asked Questions
Where can I buy TRIAD MAGNETICS F824?
You can click on the BUY or RFQ button to purchase F824 from an authorized TRIAD MAGNETICS distributor.
How do I troubleshoot issues or seek technical support for part F824?
You can download the F824 datasheet or visit the TRIAD MAGNETICS website for support.
Who is the manufacturer of F824?
TRIAD MAGNETICS
