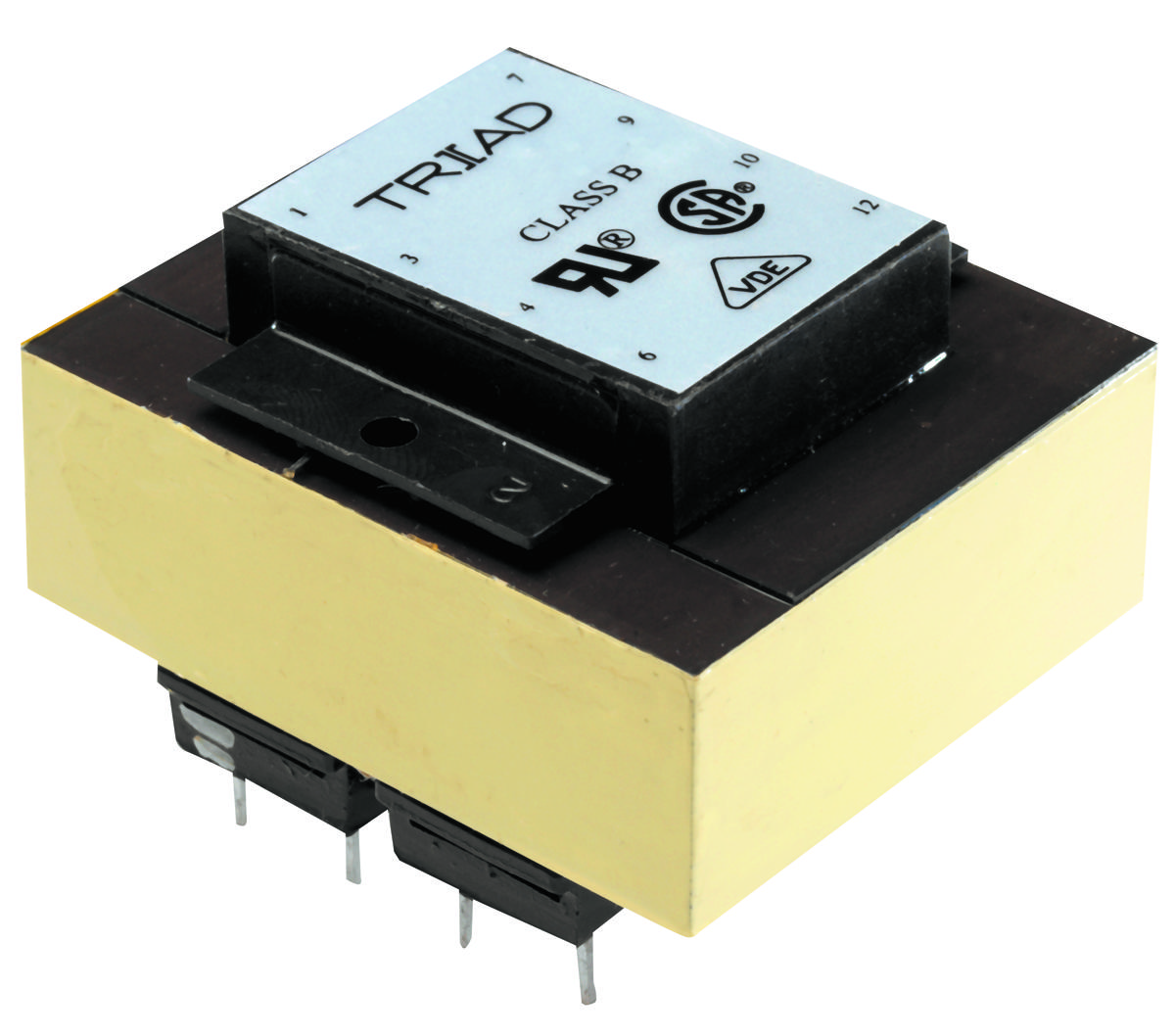

TRIAD MAGNETICS VPP36560 Power Transformer
This component is designed for power management and industrial applications, providing reliable performance in demanding environments. It features dual bobbin construction with high-temperature insulated shroud, ensuring safety and reduced capacitance. Compatible with series and parallel configurations, it offers output voltages of 36.0V at 0.56A and 18.0V at 1.12A, with a maximum power of 20.0VA. Its robust construction meets UL, CSA, and TUV standards, making it ideal for general purpose and control system applications.
TRIAD MAGNETICS VPP36560 Power Transformer Specifications:
- Maximum Power: 20.0VA
- Input Voltage: Series: 230VAC, 50/60Hz; Parallel: 115VAC, 50/60Hz
- Output Voltages: Series: 36.0V CT@ 0.56A; Parallel: 18.0V @ 1.12A
- Voltage Regulation: 25% TYP @ full load to no load
- Temperature Rise: 30C TYP (45C MAX allowed)
- Insulation Resistance: 100M
- Hipot: 4000VAC between primary and secondary, windings to core
- Construction: Dual bobbin with high-temperature insulated shroud
- Mounting Holes: 0.112 inch diameter, 2 holes
- Connections: Series: Pin 1 to Pin 6, jumper Pin 4 to Pin 3; Parallel: Pin 1 to Pin 6, jumper Pin 1 to Pin 4, Pin 3 to Pin 6
- Weight: 0.90 lbs
- Pin Dimension: 0.036 sq
- RoHS Compliant: Yes
- Agency Approvals: UL, CSA, TUV
Buy the Triad Power Transformer VPP36-560 – Reliable Power Management for Industrial Applications
Order the Triad Power Transformer VPP36-560 online today and experience reliable power management for industrial applications. Designed with dual bobbin construction and high-temperature insulation, it ensures safety and efficiency. Supports series and parallel connections with output voltages of 36V and 18V, rated at 20VA. Meets UL, CSA, and TUV standards for general purpose use. Perfect for control systems, automation, and demanding environments, this transformer provides stability, safety, and long-term performance. Buy now for seamless installation and dependable power solutions.
Get Triad Power Transformer VPP36-560 today—built for demanding industrial environments and long-lasting durability.
Frequently Asked Questions
Where can I buy TRIAD MAGNETICS VPP36560?
You can click on the BUY or RFQ button to purchase VPP36560 from an authorized TRIAD MAGNETICS distributor.
How do I troubleshoot issues or seek technical support for part VPP36560?
You can download the VPP36560 datasheet or visit the TRIAD MAGNETICS website for support.
Who is the manufacturer of VPP36560?
TRIAD MAGNETICS
