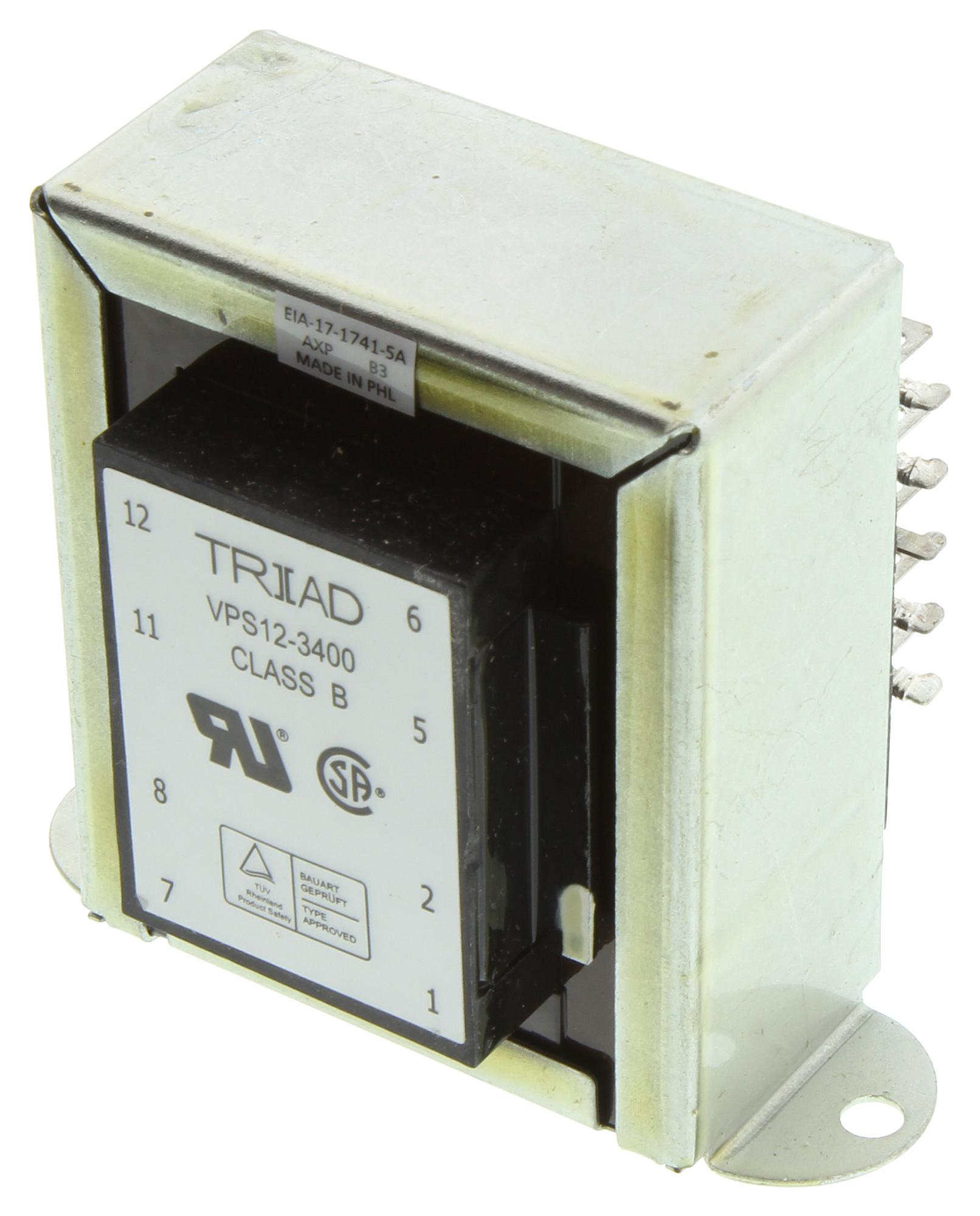

TRIAD MAGNETICS VPS123400 Power Transformer
This power transformer is designed for industrial and power management applications, offering reliable energy regulation with dual winding configurations that allow series or parallel connections. It features high-temperature construction with dual bobbin design, UL and CSA safety certifications, and a 100MΩ insulation resistance. The unit provides up to 43.0VA power, with voltage regulation of 25% at full load, and is RoHS compliant. Its size is 2-1/16 inches long, 3-1/8 inches wide, with terminal size 0.187 inches, making it suitable for various control and automation systems. Its safety features include 4000VAC isolation between windings.
TRIAD MAGNETICS VPS123400 Power Transformer Specifications:
- Maximum Power: 43.0VA
- Primary Voltage: 230VAC@50/60Hz; 115VAC@50/60Hz
- Secondary Voltage: 12.6V CT@ 3.4A; Parallel: 6.3V @ 6.8A
- Voltage Regulation: 25% TYP @ full load to no load
- Temperature Rise: 30°C TYP (max 45°C)
- Insulation Resistance: 100MΩ
- Construction: Dual bobbin with high-temperature insulating shroud
- Isolation: 4000VAC between primary and secondary
- Dimensions: 2-1/16 inches long, 3-1/8 inches wide, terminal size 0.187 inches
- Mounting Hole: 3/16 inches
- Weight: 1.6 lbs
- Connection: Series or parallel winding configurations
- RoHS Compliance: Yes (since February 2005)
Buy the Triad Power Supply – Reliable VPS12-3400 for Industrial Applications
Purchase the Triad Power Transformer VPS12-3400 online today and ensure your power management and industrial applications operate smoothly. This unit features dual winding configurations, UL and CSA certifications, and RoHS compliance, making it ideal for control systems and automation projects. With a power capacity of 43VA, 25% voltage regulation, and high insulation resistance, it guarantees safety and reliability. Its compact design and high-temperature construction meet industry standards, offering a perfect solution for reliable, efficient energy regulation in diverse industrial environments.
Order your Triad Series VPS12-3400 power transformer today and enhance your industrial control systems with dependable energy regulation.
Frequently Asked Questions
Where can I buy TRIAD MAGNETICS VPS123400?
You can click on the BUY or RFQ button to purchase VPS123400 from an authorized TRIAD MAGNETICS distributor.
How do I troubleshoot issues or seek technical support for part VPS123400?
You can download the VPS123400 datasheet or visit the TRIAD MAGNETICS website for support.
Who is the manufacturer of VPS123400?
TRIAD MAGNETICS
