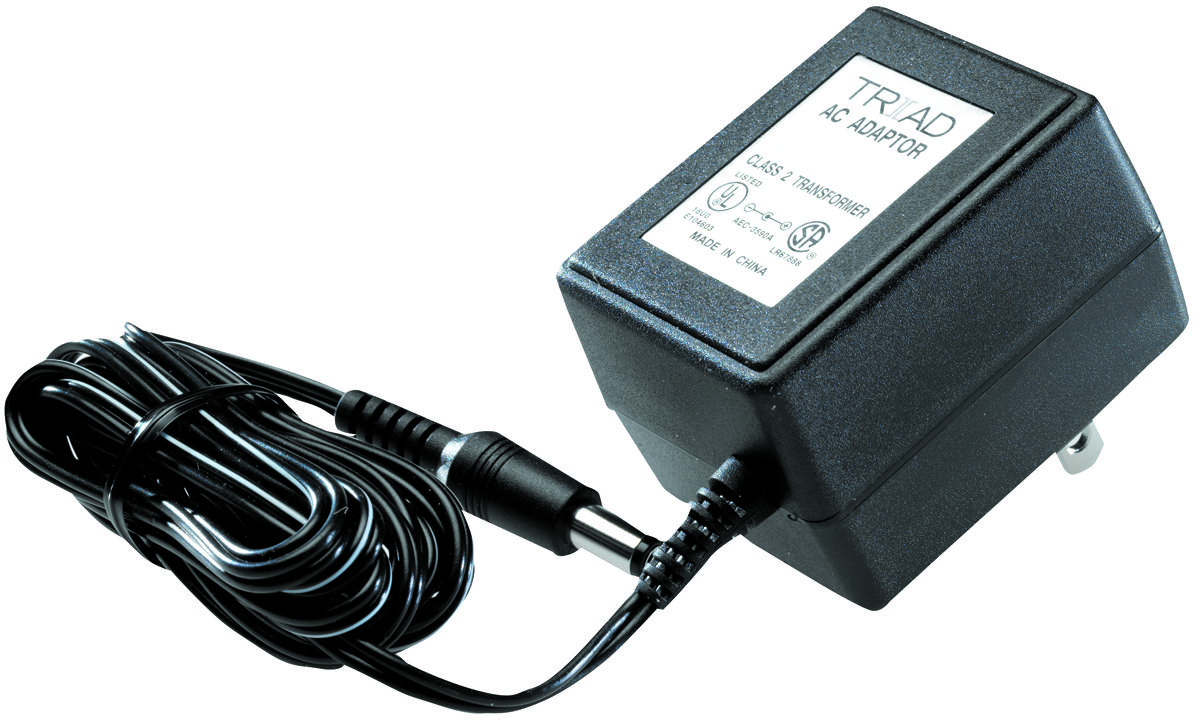

TRIAD MAGNETICS WAU122500 Wall Power Supply
The WAU12-2500 is a 12VAC, 30W wall plug-in power supply designed for easy installation and reliable operation. It features a thermoplastic molded enclosure, operates within -10°C to 40°C, and includes a 24 AWG output cord. Built for safety, it provides Class-2 protection, double insulation, and dielectric isolation of 4kVDC for one minute. This compact and fully enclosed unit minimizes noise, size, and weight, eliminating internal cooling components. Certified for safety and regulatory compliance, it is ideal for various power management applications requiring stable, efficient power conversion.
TRIAD MAGNETICS WAU122500 Wall Power Supply Specifications:
- Input Voltage: 120VAC 60Hz, 28W
- Output Voltage: 12VAC @ 2500mA
- Power Rating: 30W
- Operating Temperature Range: -10°C to +40°C
- Enclosure Material: Thermoplastic molded
- Output Cord: 24 AWG, 6 Ft. long
- Agency Certifications: UL, CUL (File E245587, UL 1310)
- Dielectric Isolation: 4kVDC for 1 minute
- Protection Class: Class 2
- Maximum Temperature Rise: 75°C at rated load
- Dimensions: Diameter approximately 11mm, length approximately 20mm (based on schematic)
- Safety Compliance: RoHS
Buy the Triad Power Supply WAU12-2500 – Reliable 12VAC Power for Industrial Applications
Order the Triad WAU12-2500 wall power supply online today to ensure your project benefits from robust design, certified safety, and high efficiency. This 12VAC, 30W power unit features a thermoplastic enclosure, minimal noise, and excellent insulation for safe operation. Its compact size and fully enclosed construction make installation easy while providing durability and safety compliance. Ideal for industrial, automation, or electronic projects, this supply guarantees consistent power delivery. Purchase now and discover the value of reliable, certified power suitable for various demanding environments.
Buy Triad Power Supply WAU12-2500 now and experience unmatched reliability and performance in power management.
Frequently Asked Questions
Where can I buy TRIAD MAGNETICS WAU122500?
You can click on the BUY or RFQ button to purchase WAU122500 from an authorized TRIAD MAGNETICS distributor.
How do I troubleshoot issues or seek technical support for part WAU122500?
You can download the WAU122500 datasheet or visit the TRIAD MAGNETICS website for support.
Who is the manufacturer of WAU122500?
TRIAD MAGNETICS
