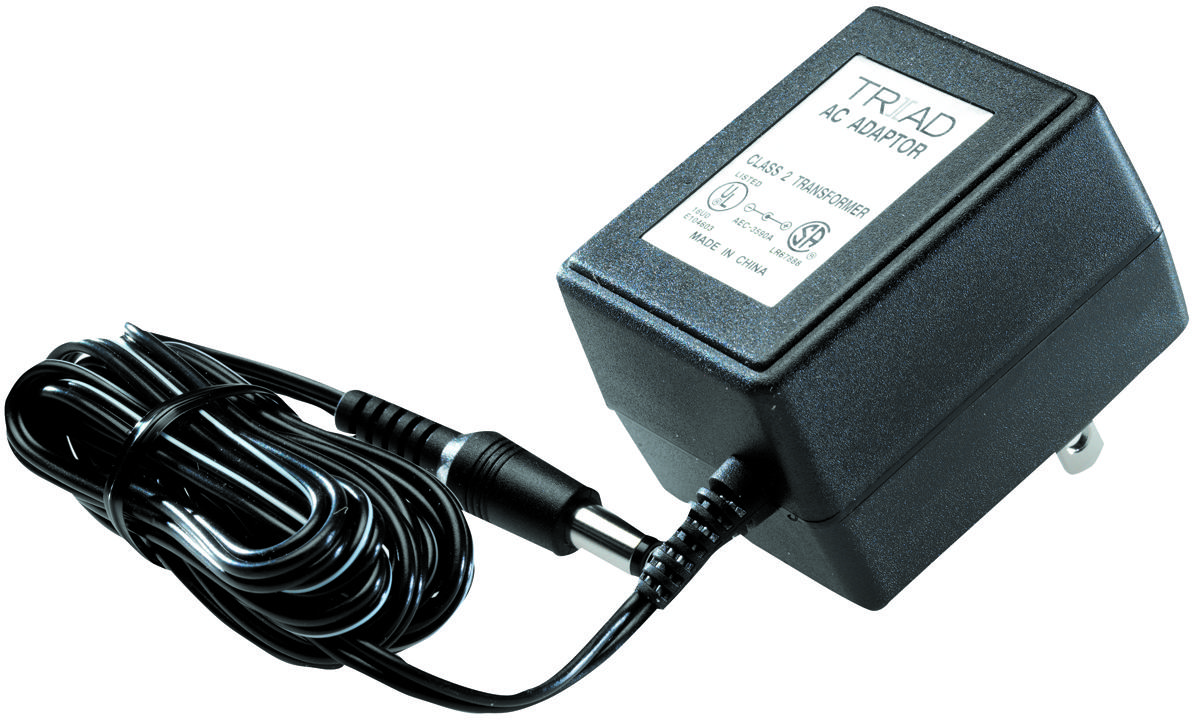

TRIAD MAGNETICS WDU24800 Wall Power Supply
The WDU24-800 is a compact 24V DC wall plug-in power supply delivering 28.5W of power, ideal for simplified product development. Its fully enclosed thermoplastic case reduces noise, size, and weight, making it suitable for various industrial and commercial applications. It features a 6-foot output cord, safety approvals, and a wide operating temperature range from -10°C to 40°C. With class-B overcurrent protection, double insulation, and dielectric isolation of 4kVDC for one minute, it ensures safe and reliable power management in diverse environments.
TRIAD MAGNETICS WDU24800 Wall Power Supply Specifications:
- Input Voltage: 120VAC 60Hz
- Output Voltage: 24VDC +5%
- Output Power: 28.5W
- Output Current: 800mA
- Ripple Voltage: 1450mV Max
- Operating Temperature: -10°C to +40°C
- Enclosure: Thermoplastic molded
- Cord Length: 6 feet
- Overcurrent Protection: Class-B
- Insulation: Double insulated with dielectric isolation of 4kVDC for 1 minute
- Certifications: UL, CUL listed (File E245587, UL 1310)
Buy the Buy Triad Wall Plug Power Supply Part Number WDU24-800 Online
Buy the Triaid WDU24-800 wall plug-in power supply online today for reliable 24V DC output, 28.5W power, and superior safety features. Its compact thermoplastic enclosure is perfect for easy integration into your projects, providing stable power with a 6-foot cord. The supply is UL and CUL listed, with wide temperature operation from -10°C to 40°C, double insulation, and dielectric isolation of 4kVDC for one minute. Ensure quality, safety, and efficiency by purchasing this versatile power supply online now.
Order your Triad Series WDU24-800 power supply today and ensure reliable, safe power for your industrial and commercial projects.
Frequently Asked Questions
Where can I buy TRIAD MAGNETICS WDU24800?
You can click on the BUY or RFQ button to purchase WDU24800 from an authorized TRIAD MAGNETICS distributor.
How do I troubleshoot issues or seek technical support for part WDU24800?
You can download the WDU24800 datasheet or visit the TRIAD MAGNETICS website for support.
Who is the manufacturer of WDU24800?
TRIAD MAGNETICS
