TRIAD MAGNETICS WDU6600 Power Supply Module

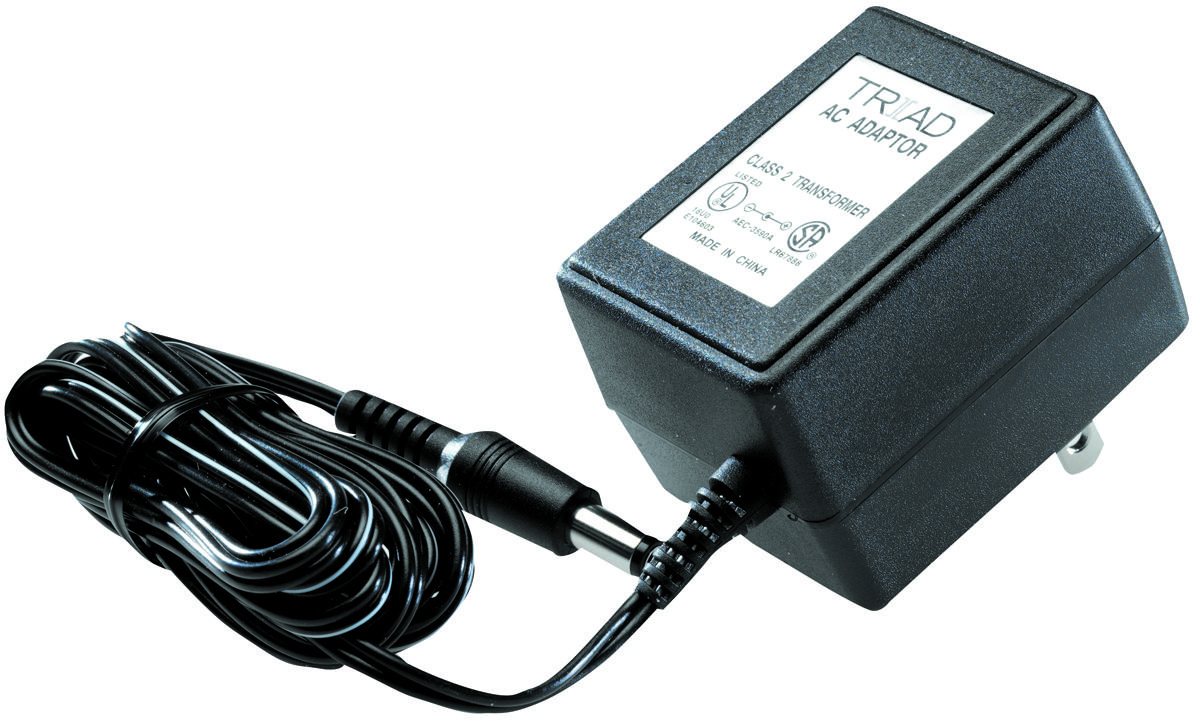

The WDU6-600 is a compact, 6V DC wall plug-in power supply delivering 7.5W of power. Its design eliminates the need for internal cooling components, reducing noise, size, and weight of the end product. The enclosure is fully sealed to prevent tampering and includes various agency approvals, facilitating compliance. Features include a thermoplastic molded case, operating temperature range of -10°C to 40°C, a 22 AWG output cord, double insulation, Class B protection, and dielectric isolation of 4kVDC for one minute. Compatible with AC/DC unregulated inputs and designed for applications in power management.
TRIAD MAGNETICS WDU6600 Power Supply Module Specifications:
- Input Voltage: 120V AC 60Hz
- Power Output: 6V DC, 600mA, 7.5W
- Output Cord: 22 AWG, 6 Ft. Long
- Operating Temperature Range: -10°C to +40°C
- Enclosure: Thermoplastic molded case
- Protection Class: Class B
- Dielectric Isolation: 4kVDC for 1 minute
- RoHS Compliance: Yes as of 2005, meeting 2011/65/EU
- Agency Approvals: UL, cUL (File E245587, UL 1310)
Buy the Triad Power Supply WDU6-600 – Reliable 6V DC Power for Industrial Applications
Order the Triad Power Supply WDU6-600 online today to ensure reliable 6V DC power delivery for your industrial and electronic applications. This compact, sealed, and RoHS-compliant power supply provides 7.5W of continuous power, making it ideal for powering battery chargers, motor-driven devices, and power management systems. Its durable thermoplastic case, double insulation, and dielectric isolation ensure safety and long-term performance. Easy to integrate with unregulated AC/DC inputs, this power supply is designed for efficiency, safety, and compliance.
Get Triad Power Supply WDU6-600 today—built for precision, safety, and long-lasting durability in power management solutions.
Frequently Asked Questions
Where can I buy TRIAD MAGNETICS WDU6600?
You can click on the BUY or RFQ button to purchase WDU6600 from an authorized TRIAD MAGNETICS distributor.
How do I troubleshoot issues or seek technical support for part WDU6600?
You can download the WDU6600 datasheet or visit the TRIAD MAGNETICS website for support.
Who is the manufacturer of WDU6600?
TRIAD MAGNETICS
