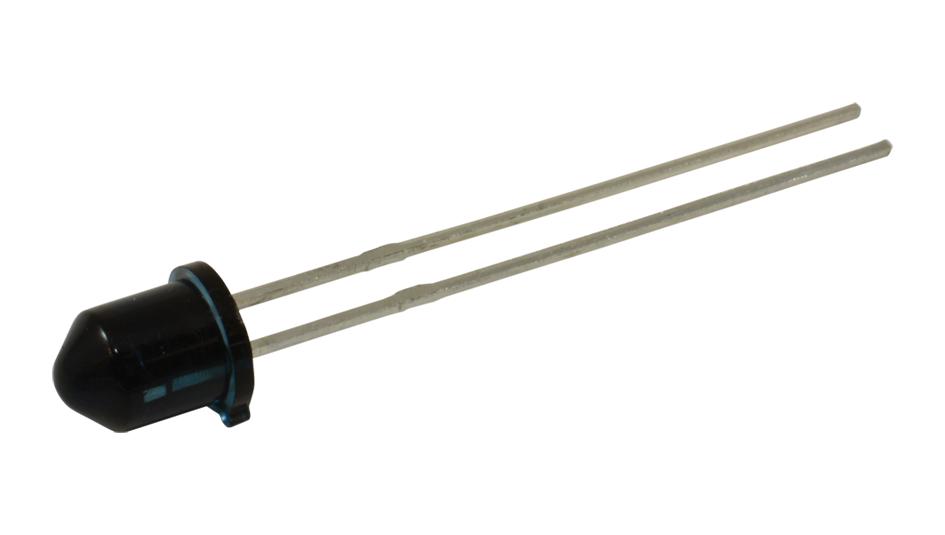

TT Electronics - Optek Technology OP598A Silicon Phototransistor
The OP598A is a two-pin NPN silicon phototransistor with a dome lens, designed for uniform detection over large areas with a wide receiving angle. Tested with infrared light at 890nm, it features a maximum lead soldering temperature of 260°C for 5 seconds. Operating from -40°C to 100°C, it offers various sensitivity ranges suitable for industrial automation, sensing, and instrumentation. Its reliable performance, combined with a rugged package, ensures durability in demanding environments, making it ideal for safety systems and industrial controls requiring precise optical detection and consistent operation.
TT Electronics - Optek Technology OP598A Silicon Phototransistor Specifications:
- Package: TO-18 equivalent with dark blue epoxy
- Spectral Response: 890 nm
- Operating Temperature Range: -40°C to +100°C
- Lead Soldering Temperature: 260°C for 5 seconds
- Power Dissipation: 250 mW
- Collector-Emitter Voltage: 30 V
- Emitter-Collector Voltage: 5 V
- Maximum Collector Current: 50 mA
- Dark Current: 100 nA at Vce=10V
- On-State Collector Current: 75-10 mA (OP598A)
- Viewing Angle: Wide (130°)
- Sensitivity: Multiple ranges available
- Wavelength: 890 nm
- Breakdown Voltage: Collector-Emitter 30 V, Emitter-Collector 5 V
- Storage Temperature Range: -40°C to +100°C
Buy the TT Electronics OP598A – Reliable Optical Sensor for Industrial Applications
Purchase the TT Electronics OP598A silicon phototransistor online for dependable optical sensing in industrial, automation, and safety systems. Featuring a wide receiving angle, infrared sensitivity at 890nm, and tested for high durability with a maximum lead soldering temperature of 260°C, this device ensures consistent, reliable operation in demanding environments. Operating from -40°C to 100°C, it offers various sensitivity options suitable for precise detection and control. Trust in TT Electronics for quality sensing components that deliver long-lasting performance across diverse industrial applications.
Get TT Electronics OP598A today—built for precise optical detection and durable performance in industrial automation systems.
Frequently Asked Questions
Where can I buy TT Electronics - Optek Technology OP598A?
You can click on the BUY or RFQ button to purchase OP598A from an authorized TT Electronics - Optek Technology distributor.
How do I troubleshoot issues or seek technical support for part OP598A?
You can download the OP598A datasheet or visit the TT Electronics - Optek Technology website for support.
Who is the manufacturer of OP598A?
TT Electronics - Optek Technology
