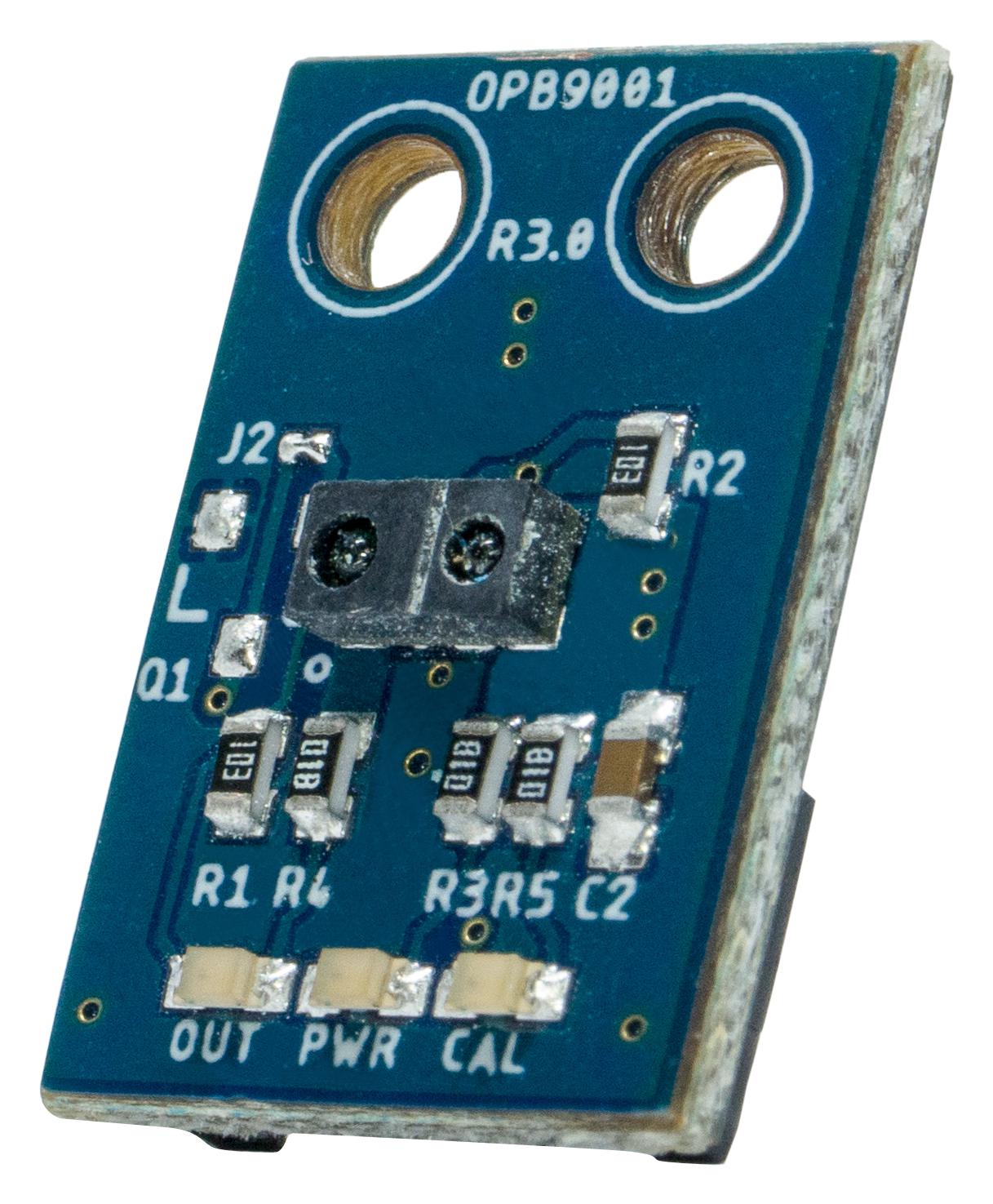

TT Electronics - Optek Technology OPB9001C Reflective Optical Sensor
The OPB9001 series reflective optical sensor module is designed for precise non-contact detection applications. It features a wide operating voltage from 3.3V to 30V, integrated circuitry, and large detection distance from 2.5 mm to 50 mm. The module offers ambient light rejection up to 25 kIx, programmable sensitivity, and a robust small footprint measuring 18 mm x 12 mm x 5 mm. With UL, CE, and ESD immunity up to 8 kV, it is ideal for industrial automation, material handling, and medical device applications, providing high reliability and easy calibration.
TT Electronics - Optek Technology OPB9001C Reflective Optical Sensor Specifications:
- Supply Voltage: 3.3V to 30V (OPB9001C)
- Detection Distance: 2.5 mm to 50 mm
- Ambient Light Rejection: 25 kIx+
- Operating Temperature Range: -40°C to +85°C
- Dimensions: 18 mm x 12 mm x 5 mm
- ESD Immunity: Up to 8 kV contact discharge
- Output Type: NPN open collector
- Output Voltage (low): < 0.4 V at Vin=24V, target at 6mm
- Output Voltage (high): Approx 0.95*Vcc at 6mm target
- Response Time: 6 ms
- Integrated 4-pin connector for easy connection
- Reverse Voltage Protection and EMI immunity
- UL & CE certified for safety and environmental standards
- Includes indicators for Power, Output, Calibration
Buy the TT Electronics Series Reflective Sensor: OPB9001C
Experience reliable contactless detection with the Reflective Optical Sensor. Featuring wide voltage compatibility from 3.3V to 30V, detection distances from 2.5 to 50 mm, and high EMI immunity, this compact sensor is ideal for automation, material handling, and medical applications. Its UL and CE certifications ensure safety and durability, while programmable sensitivity and onboard indicators simplify calibration. Versatile and robust, it’s ready to enhance your system’s efficiency and precision. Purchase online now for quick deployment.
Get TT Electronics OPB9001C today—built for precision and long-lasting durability in industrial and medical detection solutions.
Frequently Asked Questions
Where can I buy TT Electronics - Optek Technology OPB9001C?
You can click on the BUY or RFQ button to purchase OPB9001C from an authorized TT Electronics - Optek Technology distributor.
How do I troubleshoot issues or seek technical support for part OPB9001C?
You can download the OPB9001C datasheet or visit the TT Electronics - Optek Technology website for support.
Who is the manufacturer of OPB9001C?
TT Electronics - Optek Technology
