TT Electronics - Optek Technology OVLBG4C7 High-brightness LED

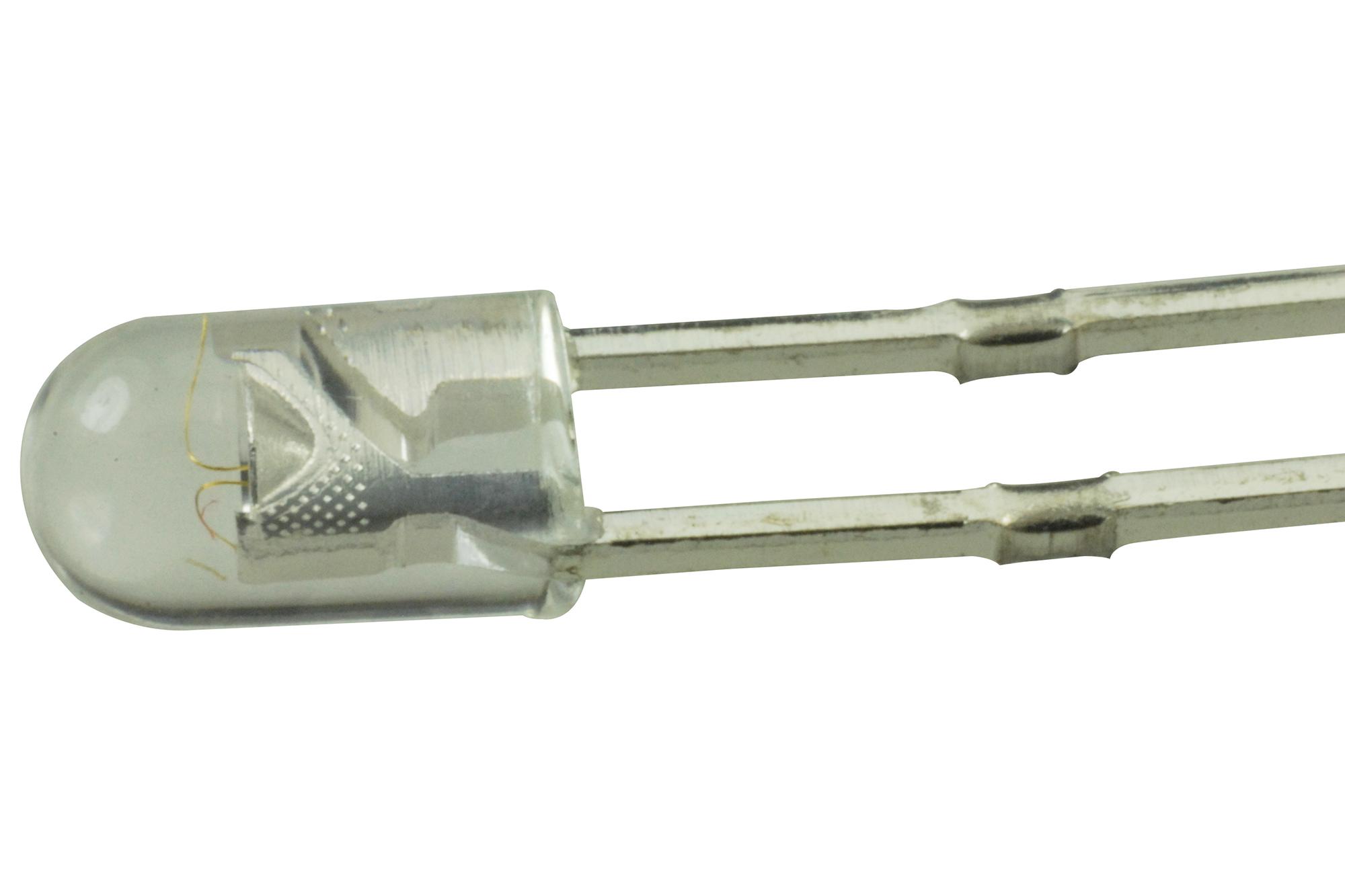

The OVLBG4C7 is a round, through-hole LED lamp with a UV-resistant water-clear lens made of InGaN. Designed for outdoor applications, this high-brightness LED features a clear plastic package that provides a well-defined and even emission pattern. It operates at 5V reverse voltage, with a power dissipation of 80mW and a maximum junction temperature of 125°C. The LED is suitable for signaling, lighting, and automotive uses, offering reliable performance in various environments.
TT Electronics - Optek Technology OVLBG4C7 High-brightness LED Specifications:
- Material: InGaN
- Lens Type: Clear water-resistant epoxy
- Package: Round through-hole, 3 mm diameter
- Electrical Ratings: Reverse Voltage 5 V Max, Power Dissipation 80 mW
- Operating Temperature Range: -40°C to +100°C
- Junction Temperature: 125°C
- Packing: 500 pcs per bulk bag with desiccant
- Luminous Intensity: 8400 mcd typical at 20mA
- Forward Voltage: 3.2 V typical at 20mA
- Peak Forward Current: 100 mA at 10% duty cycle, 1 kHz
- Soldering Temp: 260°C for 3 seconds
- Electrostatic Discharge: Class 1C
Buy the TT Electronics Series OVLBx4C7 LED: OVLBG4C7
Get your TT Electronics Series OVLBx4C7 LED now and enhance your outdoor signage and automotive lighting solutions. This round through-hole LED features a UV-resistant epoxy lens, operating at 5V reverse voltage with 84,000 mcd luminous intensity. Its durable construction and proven reliability make it perfect for outdoor displays and signaling. With a compact 3 mm diameter package and easy soldering, this LED offers long-lasting performance in demanding environments. Buy online today for fast delivery and dependable quality.
Order your TT Electronics Series OVLBx4C7 high-brightness LED today and ensure reliable outdoor illumination for signage, automotive, and lighting projects.
