TT Electronics - Optek Technology OP913SL Silicon PIN Photodiode

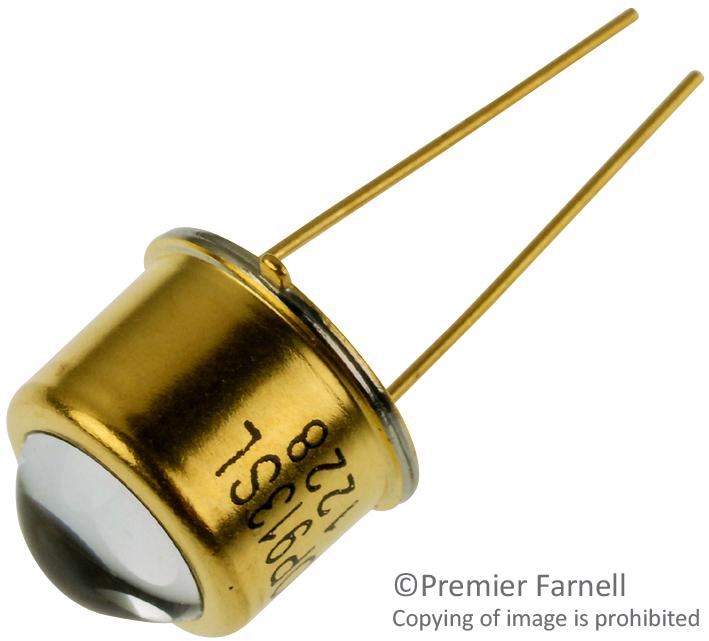

The OP913SL is a silicon PIN photodiode housed in a hermetically sealed, two-lead package. It features a dome lens with a 10° acceptance angle from the optical axis to the half power point. The device offers a linear response to irradiance, fast switching times, a narrow receiving angle, and an extended temperature range. It is suitable for applications in sensing and instrumentation, automation and process control, safety, and industrial environments, providing high reliability in critical operational settings.
TT Electronics - Optek Technology OP913SL Silicon PIN Photodiode Specifications:
- Package: TO-05 hermetically sealed
- Lens: Dome lens with 10° acceptance angle
- Response: Linear to irradiance
- Switching Time: Fast
- Temperature Range: -65°C to +125°C operational
- Reverse Voltage: 32V
- Dark Current: 25 nA at 10V
- Reverse Breakdown Voltage: 32V
- Capacitance: 150 pF at VR=0
- Storage Temperature: -65°C to +150°C
- Power Dissipation: 150 mW
- Lead Soldering Temperature: 260°C for 5 seconds
- Max Operating Temperature: +125°C
Buy the TT Electronics Series OP913 Silicon Photodiode: OP913SL
Order the TT Electronics OP913SL silicon PIN photodiode online today to ensure precise light detection, fast response, and high durability in industrial sensing, automation, and safety applications. Its hermetically sealed packaging and extended temperature range guarantee reliable operation in demanding environments. With a 10° acceptance angle and low dark current, this photodiode offers optimal performance for critical sensing tasks. Enhance your automation and instrumentation systems by purchasing this high-quality photodiode online with quick delivery and professional support.
Get TT Electronics OP913SL today—built for precision, fast switching, and reliable industrial sensing performance.
