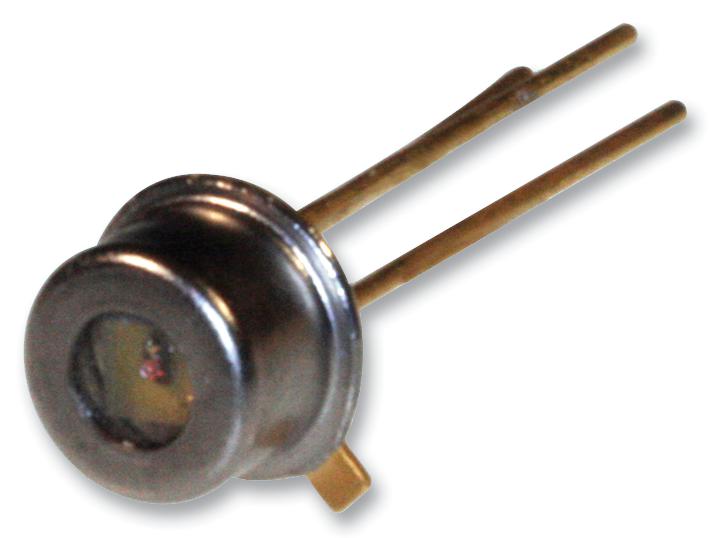

TT Electronics - Optek Technology OPV310 VCSEL Module
The OPV310 series are high-performance 850nm VCSEL modules optimized for data communication, sensing, and fiber optic applications. Designed for low current operation with high optical output, they feature a built-in monitor photodiode for precise power control. Suitable for Gigabit Ethernet, Fibre Channel, ATM, and intra-system links, these lasers offer high speed, narrow beam divergence, and thermal stability, making them ideal for both transmissive and reflective sensing, long-distance illumination, and optical backplane systems. The series encompasses flat lens and microbead lens options, ensuring versatile integration.
TT Electronics - Optek Technology OPV310 VCSEL Module Specifications:
- Wavelength: 840-860 nm
- Output Power: up to 150 mW (OPV310), at 7 mA
- Threshold Current: 0.80-3.00 mA
- Forward Voltage: 1.60-2.20 V at 7 mA
- Series Resistance: 20-55 ohms
- Slope Efficiency: 0.28-0.60 mW/mA
- Beam Divergence: 24 degrees (OPV300 / OPV310 only)
- Rise and Fall Time: 100 ps (20%-80%)
- Wavelength Stability: 0.06 nm/°C
- Maximum Forward Peak Current: 12 mA
- Storage Temperature: -40°C to +100°C
- Operating Temperature: 0°C to +70°C
- Maximum Optical Power at 70°C: 1.1 mW
- Soldering Temperature: 260°C for 10 sec
- Reverse Voltage: 5 V
- Monitor Current (OPV310/OPV314): 30-45 pa
- Class 1 Laser Safety
Buy the TT Electronics Series OPV Series VCSEL: OPV310
Order the TT Electronics OPV310 VCSEL module online today to enhance your optical communication systems with high speed, low power consumption, and reliable performance. Designed for fiber optic links, sensing, and high-speed data applications, this laser provides excellent beam quality and thermal stability. Its integrated photodiode allows precise optical power control, ensuring consistent performance even in demanding environments. Perfect for Gigabit Ethernet, fiber channel, or optical sensing projects, this module ensures seamless integration and long-term durability for your advanced communication needs.
Buy TT Electronics OPV310 high-speed VCSEL module now and experience unmatched reliability and performance in data transmission and sensing applications.
Frequently Asked Questions
Where can I buy TT Electronics - Optek Technology OPV310?
You can click on the BUY or RFQ button to purchase OPV310 from an authorized TT Electronics - Optek Technology distributor.
How do I troubleshoot issues or seek technical support for part OPV310?
You can download the OPV310 datasheet or visit the TT Electronics - Optek Technology website for support.
Who is the manufacturer of OPV310?
TT Electronics - Optek Technology
