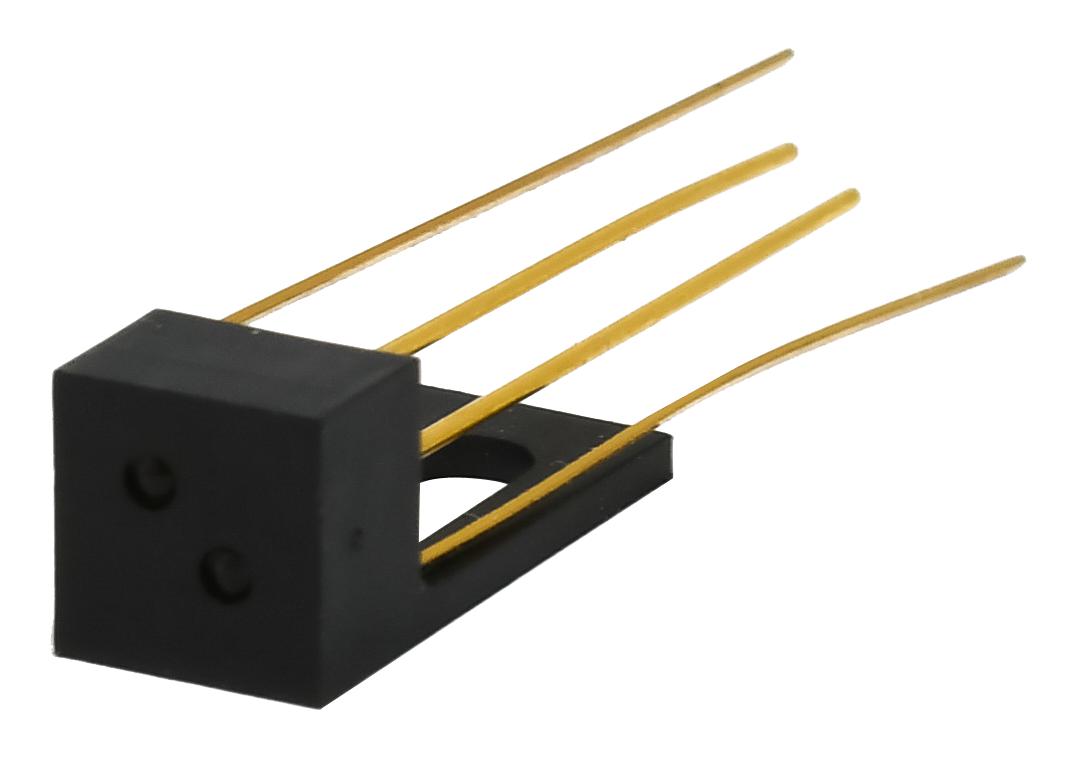

TT Electronics - Optek Technology OPB735C Reflective Object Sensor
The OPB735 series sensors comprise an infrared LED and an NPN silicon phototransistor or photodarlington in a compact, black thermoplastic housing. Designed for reflective object detection, they respond to objects passing within their focused field of view. Suitable for non-contact sensing and automation applications, these hermetically sealed sensors feature low-profile design and 12-inch (300 mm) #28 AWG lead wires. Available variants include transistor and darlington outputs, with reliable performance for machine safety, end-of-travel sensing, and assembly line automation. Custom options are also accessible through TT Electronics.
TT Electronics - Optek Technology OPB735C Reflective Object Sensor Specifications:
- Operating Temperature Range: -55°C to +100°C
- Storage Temperature Range: -55°C to +125°C
- Soldering Temperature (5 sec): 260°C for OPB735A/B/C, 240°C for OPB735AWZ/BWZ/CWZ
- Input Diode Forward Voltage: 1.80 V at 50 mA
- Reverse Current: 100 pA at 2 V
- Collector-Emitter Breakdown Voltage: 30 V for transistor models, 15 V for darlington models
- Emitter-Collector Breakdown Voltage: 5 V
- Collector DC Current: 30 mA
- Collector-Emitter Power Dissipation: 100 mW, 75 mW for darlington
- Maximum Reverse Voltage: 2 V
- Absolute Max Operating Voltage: 30 V collector-emitter, 5 V emitter-collector
- Response Time: Rise and fall times around 15 to 250 ps depending on model
- Lead Length: 12 inches (300 mm) #28 AWG fully stranded wire
- Housing Material: Non-conductive plastic
Buy the Buy TT Electronics OPB735C Reflective Object Sensor Part Number OPB735C Online
Purchase the TT Electronics OPB735C Reflective Object Sensor online today to enhance your automation and safety systems. Featuring infrared LED and phototransistor components encased in a durable plastic housing, this sensor offers reliable detection for diffuse surfaces in industrial applications. Its low-profile design facilitates stacking in compact setups, while the 12-inch lead wires ensure easy installation. Perfect for machine safety, end-of-travel sensing, and assembly line automation, this hermetically sealed sensor guarantees long-lasting performance and precision in demanding environments.
Get TT Electronics OPB735C reflective object sensor today—designed for reliable, non-contact sensing in automation and safety solutions.
Frequently Asked Questions
Where can I buy TT Electronics - Optek Technology OPB735C?
You can click on the BUY or RFQ button to purchase OPB735C from an authorized TT Electronics - Optek Technology distributor.
How do I troubleshoot issues or seek technical support for part OPB735C?
You can download the OPB735C datasheet or visit the TT Electronics - Optek Technology website for support.
Who is the manufacturer of OPB735C?
TT Electronics - Optek Technology
