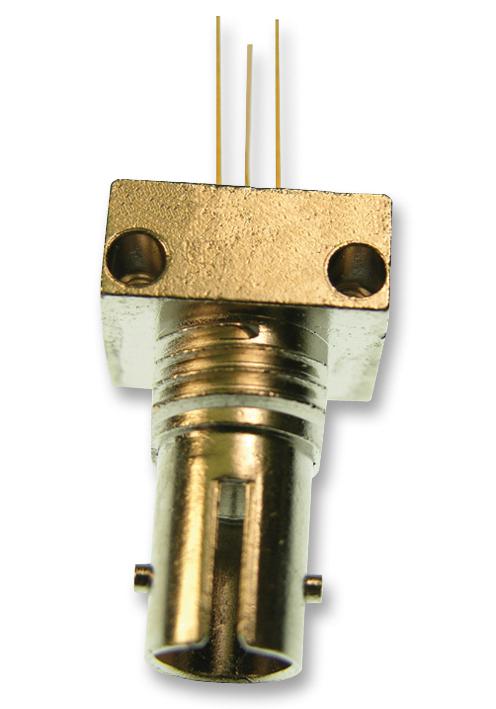

TT Electronics - Optek Technology OPF482 Fiber Optic Detector
The OPF482 is a low-noise silicon PIN photodiode designed for fiber optic detection. It offers fast response at moderate bias voltages and is compatible with LED and laser diode sources in the 800 to 1000 nm wavelength range. Its low capacitance improves signal-to-noise performance, making it suitable for short-haul LAN applications. The device supports multimode optical fibers from 50/125 to 200/300 microns. Features include high speed with a minimum of 100 MHz operation, a popular ST receptacle, pre-tested fiber coupling, and a ready-to-use pre-mounted component. Ideal for fiber optics, industrial systems, security, and video surveillance.
TT Electronics - Optek Technology OPF482 Fiber Optic Detector Specifications:
- Responsivity: 0.45 - 0.55 AW at 850 nm
- Dark Current: 50 nA at V=5V
- Peak Response Wavelength: 905 nm
- Output Rise Time: 2.0 ns
- Total Capacitance: 15 - 20 pF at V=5V
- Storage Temperature: -55°C to +100°C
- Operating Temperature: -40°C to +85°C
- Maximum Reverse Voltage: 100 VDC
- Continuous Power Dissipation: 200 mW
- Lead Soldering Temperature: 260°C
Buy the Buy TT Electronics OPF482 Fiber Optic Detector Part Number OPF482 Online
Purchase the TT Electronics OPF482 fiber optic detector online today and benefit from fast, low-noise performance, pre-tested fiber coupling, and a ready-to-use design. Perfect for short-haul LAN, industrial applications, security, and video systems, this high-speed photodiode features a 100 MHz minimum operation, ST receptacle, and compatibility with multimode fibers from 50/125 to 200/300 microns. Ensure reliable fiber optic detection with this robust, pre-mounted device, designed for easy installation and long-term efficiency.
Buy TT Electronics OPF482 fiber optic detector now and enjoy high-speed response, low noise, and reliable fiber optic detection for industrial and security systems.
Frequently Asked Questions
Where can I buy TT Electronics - Optek Technology OPF482?
You can click on the BUY or RFQ button to purchase OPF482 from an authorized TT Electronics - Optek Technology distributor.
How do I troubleshoot issues or seek technical support for part OPF482?
You can download the OPF482 datasheet or visit the TT Electronics - Optek Technology website for support.
Who is the manufacturer of OPF482?
TT Electronics - Optek Technology
