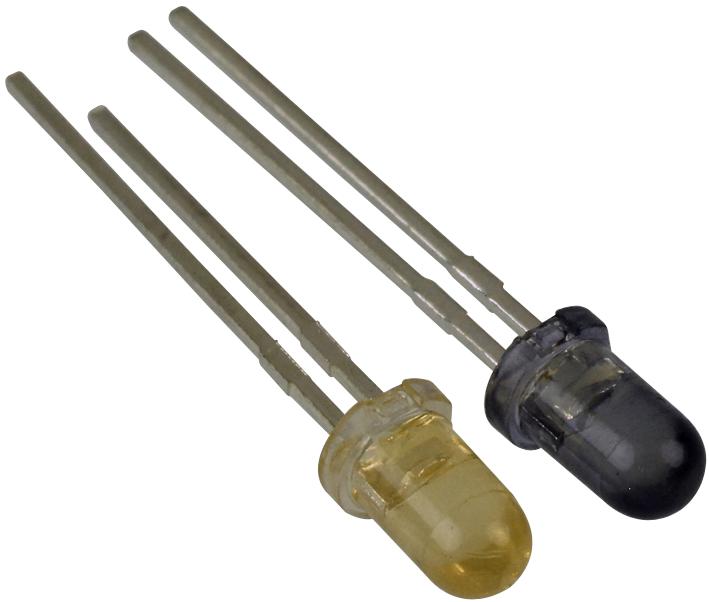

TT Electronics - Optek Technology OPS666 Infrared Sensor Pair
The OPS666 is a high-performance LED and photosensor pair designed for non-contact object detection and automation applications. It features a gallium arsenide infrared emitting diode paired with an NPN silicon phototransistor, mounted in a T-1 package for compactness or lateral side-looking plastic package for flexible installation. Suitable for use in reflective sensors, machine automation, assembly lines, and safety systems, it offers high current transfer ratio and low-cost construction. Its optical and electrical characteristics ensure reliable operation within a temperature range of -40°C to +100°C, with careful attention needed for ambient light sensitivity.
TT Electronics - Optek Technology OPS666 Infrared Sensor Pair Specifications:
- Storage & Operating Temperature Range: -40°C to +100°C
- Input Diode Forward Current: 50 mA
- Peak Forward Current: 3.0A (1 us pulse)
- Reverse DC Voltage: 2.0V
- Collector-Emitter Voltage (Photosensor): 30V
- Emitter-Collector Voltage (Photosensor): 5V
- Collector-Emitter Dark Current: 100 nA
- Forward Voltage of LED: 1.6V at 20mA
- Lead Soldering Temperature: 260°C (5 sec. at 1/16 inch from case)
- Distance from lens tip (OPS665/666/667): 0.250 inches
- Distance from lens tip (OPS691-698): 0.125 inches
- Dimensions: T-1 package length approximately 0.50 inches (1.7 mm)
- Optical coupling efficiency and angular response optimized for object detection
- Package includes a matched LED and phototransistor for alignment ease
- Designed to operate reliably in industrial automation and safety systems
- Package types: T-1 and lateral side-looking plastic packages
- Component handling should observe proper soldering and alignment procedures
- Sensitive to ambient light interference, requiring consideration in installation
Buy the TT Electronics Series OPS666 Infrared Sensor: OPS666
Secure your automation projects today by purchasing the TT Electronics OPS666 infrared sensor pair online. Designed for reliability in machine automation, safety systems, and object detection, this high-performance pair combines a gallium arsenide infrared LED with a silicon phototransistor in compact packages suitable for various industrial applications. Easy to handle and install, the OPS666 ensures excellent optical coupling and precise detection capabilities, operating within a temperature range of -40°C to +100°C. Enhance your automation efficiency by ordering online now for quick delivery and seamless integration.
Buy TT Electronics OPS666 now and experience unmatched reliability and performance with high current transfer ratio for precise object detection.
