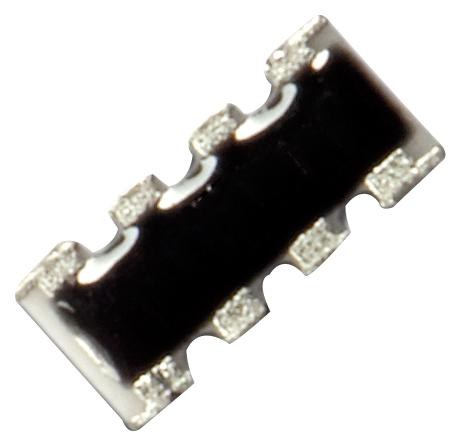

TTElectronics - Welwyn GBCN164AB1R1J7 Resistor Array
The GBCN164AB1R1J7 is a green thick film chip resistor array featuring four resistors on a 0603 equivalent package, RoHS compliant, and designed for high reliability in electronic circuits. It offers a power rating of 250 mW at 70°C, with resistance values ranging from 1 ohm to 1 megaohm. The device is suitable for use in high-temperature environments, with excellent dielectric withstand capabilities and a temperature range of -55°C to +155°C, making it ideal for compact, high-density circuit applications.
TTElectronics - Welwyn GBCN164AB1R1J7 Resistor Array Specifications:
- Power Rating: 250 mW at 70°C
- Resistance Range: 1Ω to 1MΩ
- Resistance Tolerance: ±5% (3 digits marking), ±1% (4 digits marking)
- Temperature Coefficient: <100 ppm/°C
- Ambient Temperature Range: -55°C to +155°C
- Dielectric Withstand Voltage: 300 V
- Package Size: 0603 (1608 Metric)
- Dimensions (mm): Length 1.6, Width 0.8, Height 0.5
- Construction: Ruthenium Oxide resistor on alumina substrate, nickel barrier, tin-plated termination
- RoHS compliant, Pb-free, AEC-Q200 qualified
- Marking: 3-digit (±5%), 4-digit (±1%) markings for resistance values
- Electrical Data include overload voltage of 100 V, circuit voltage of 50 V
Buy the TT Electronics Series GBCN Green Thick Film Chip Arrays: GBCN164AB1R1J7
Purchase the TT Electronics GBCN Series resistor array online today for durable, high-performance circuit solutions. Designed for reliable operation in demanding environments, this green thick film chip resistor array offers four independent resistors within a compact 0603 footprint. With a maximum power of 250mW and resistance values from 1Ω to 1MΩ, it is perfect for high-temperature applications. RoHS compliant and qualified for AEC-Q200, order now to enhance your electronics projects with proven quality and dependable resistance performance.
Order your TT Electronics Series GBCN164AB1R1J7 today and give your high-density circuit designs the reliable performance they deserve.
Frequently Asked Questions
Where can I buy TTElectronics - Welwyn GBCN164AB1R1J7?
You can click on the BUY or RFQ button to purchase GBCN164AB1R1J7 from an authorized TTElectronics - Welwyn distributor.
How do I troubleshoot issues or seek technical support for part GBCN164AB1R1J7?
You can download the GBCN164AB1R1J7 datasheet or visit the TTElectronics - Welwyn website for support.
Who is the manufacturer of GBCN164AB1R1J7?
TTElectronics - Welwyn
